Transmission Control Lever Knob Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

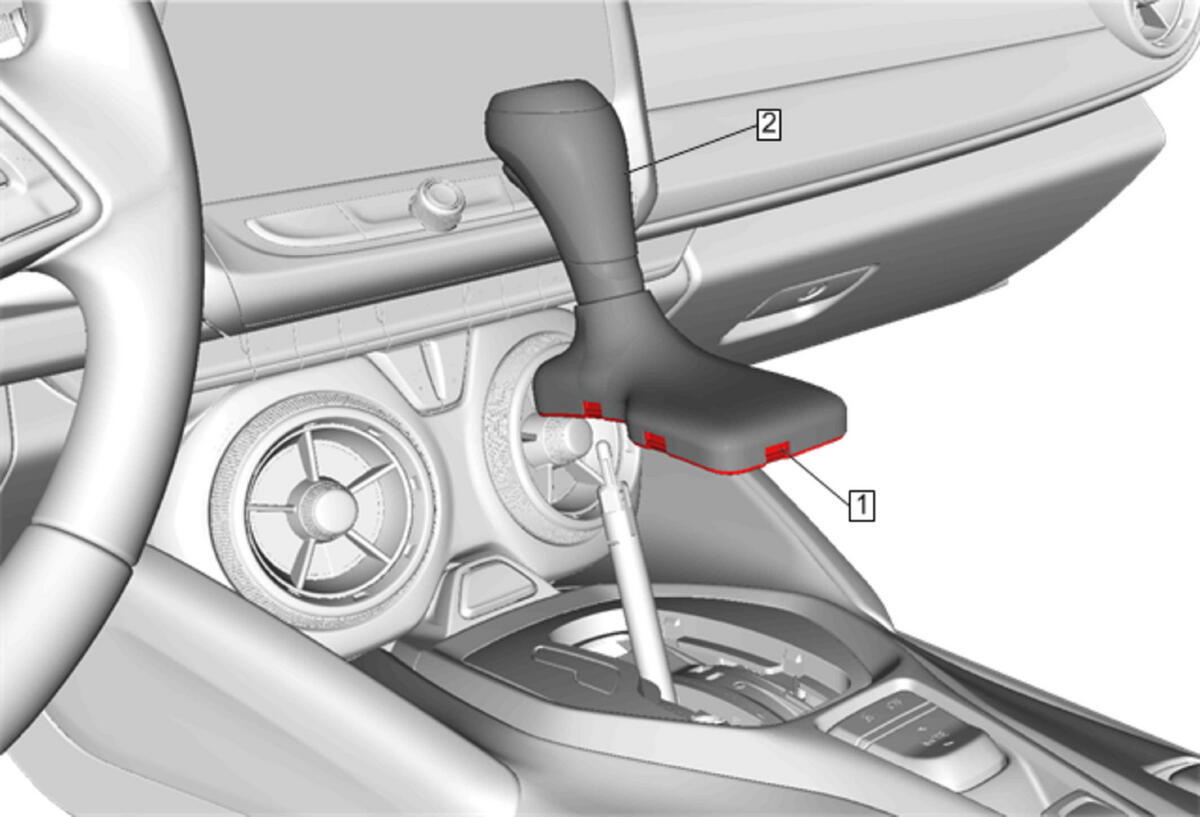

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Transmission Control Lever Knob Retainer (Qty: 5) Procedure Use a flat-bladed plastic trim tool in order to release the retainer clips securing the control lever boot. NOTE: Place the transmission control in the Neutral position.
2	Transmission Control Lever Knob NOTE: The control lever boot and knob are replaced as an assembly. To remove the knob, pull upward and twist. After knob installation, pull shift knob straight upward with moderate force (No twisting motion) to ensure secure knob attachment to shifter rod.
