Front Side Door Adjustment (Convertible)
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

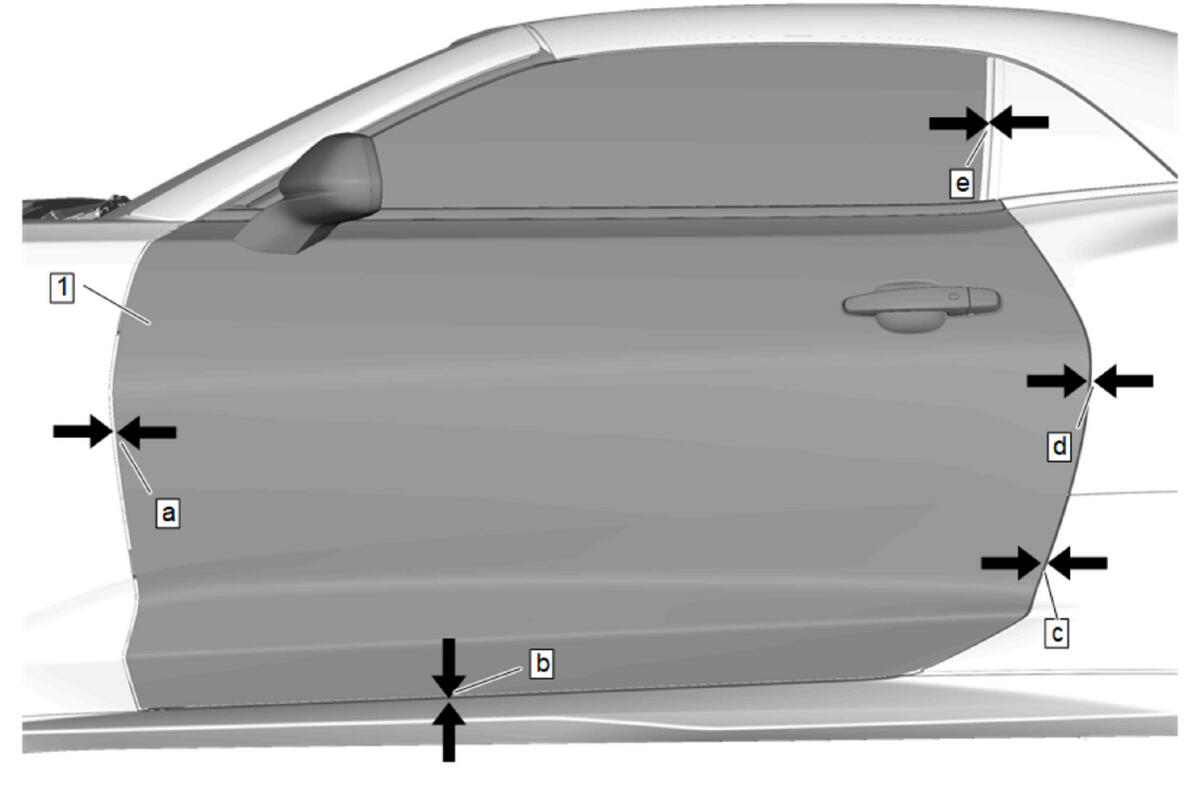

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
Preliminary Procedure
Front Wheelhouse Liner Replacement
, or Front Wheelhouse Liner Replacement (ZL1) |
| 1 |
Front Side Door Procedure
- Loosen the 4 front side door hinge bolts to adjust the front side door.
- Adjust the front side door in order to obtain the specified gap between the front side door window belt reveal molding to front fender, front side door to front fender, front side door to rocker panel molding, front side door to quarter panel, and front side door window to quarter window.
- Tighten the appropriate 4 front side door hinge bolts. Front Side Door Upper Hinge and Lower Hinge Replacement
- Front Side Door Lock Striker - Adjust if necessary. Front Side Door Lock Striker Adjustment
Adjustment:
- Front side door window belt reveal molding to front fender (a) 4.0 mm ± 0.75 mm (0.16 in ± 0.03 in)
- Front side door to front fender (b) 4.0 mm ± 0.75 mm (0.16 in ± 0.03 in)
- Front side door to rocker panel molding (c) 5.0 mm ± 1.75 mm (0.20 in ± 0.07 in)
- Front side door to rocker panel molding (d) 4.0 mm ± 1.5 mm (0.16 in ± 0.06 in)
- Front side door window to quarter window (e) 6.0 mm ± 2.0 mm (0.24 in ± 0.08 in)
|
