Installation Procedure

NOTE:

Carefully align the front tabs before installing.

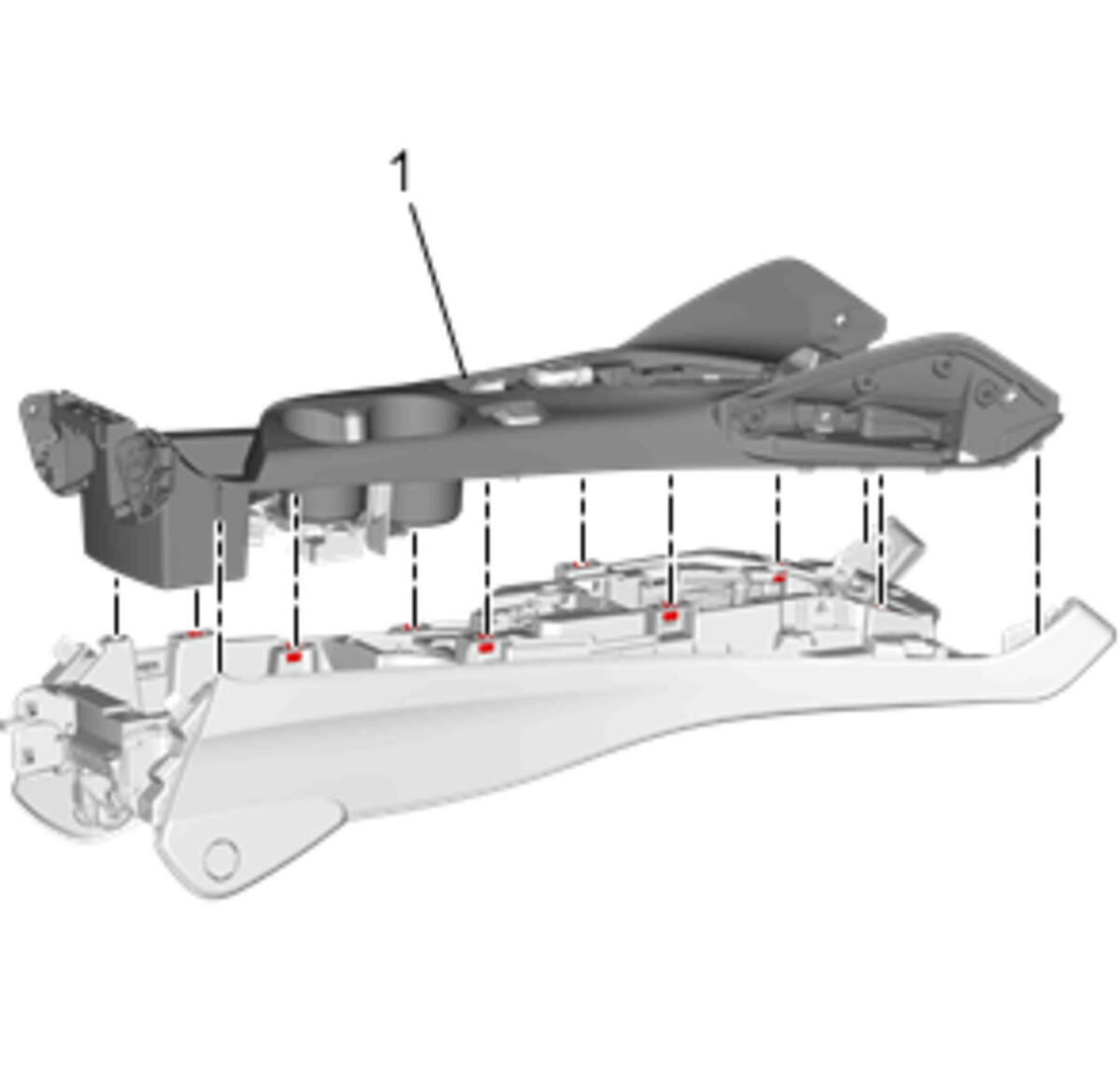

Front Floor Console Upper Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

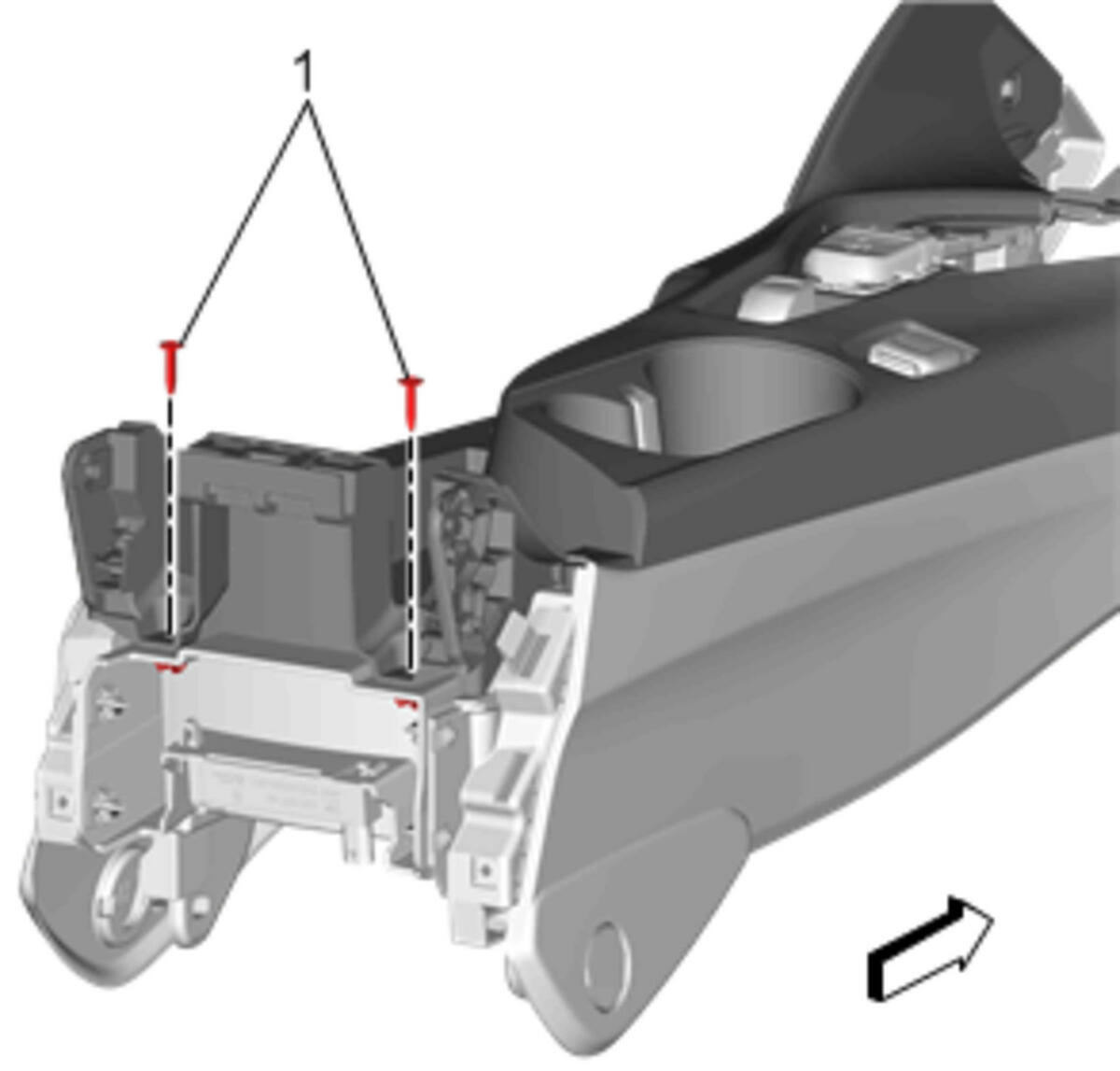

Front Floor Console Trim Plate Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

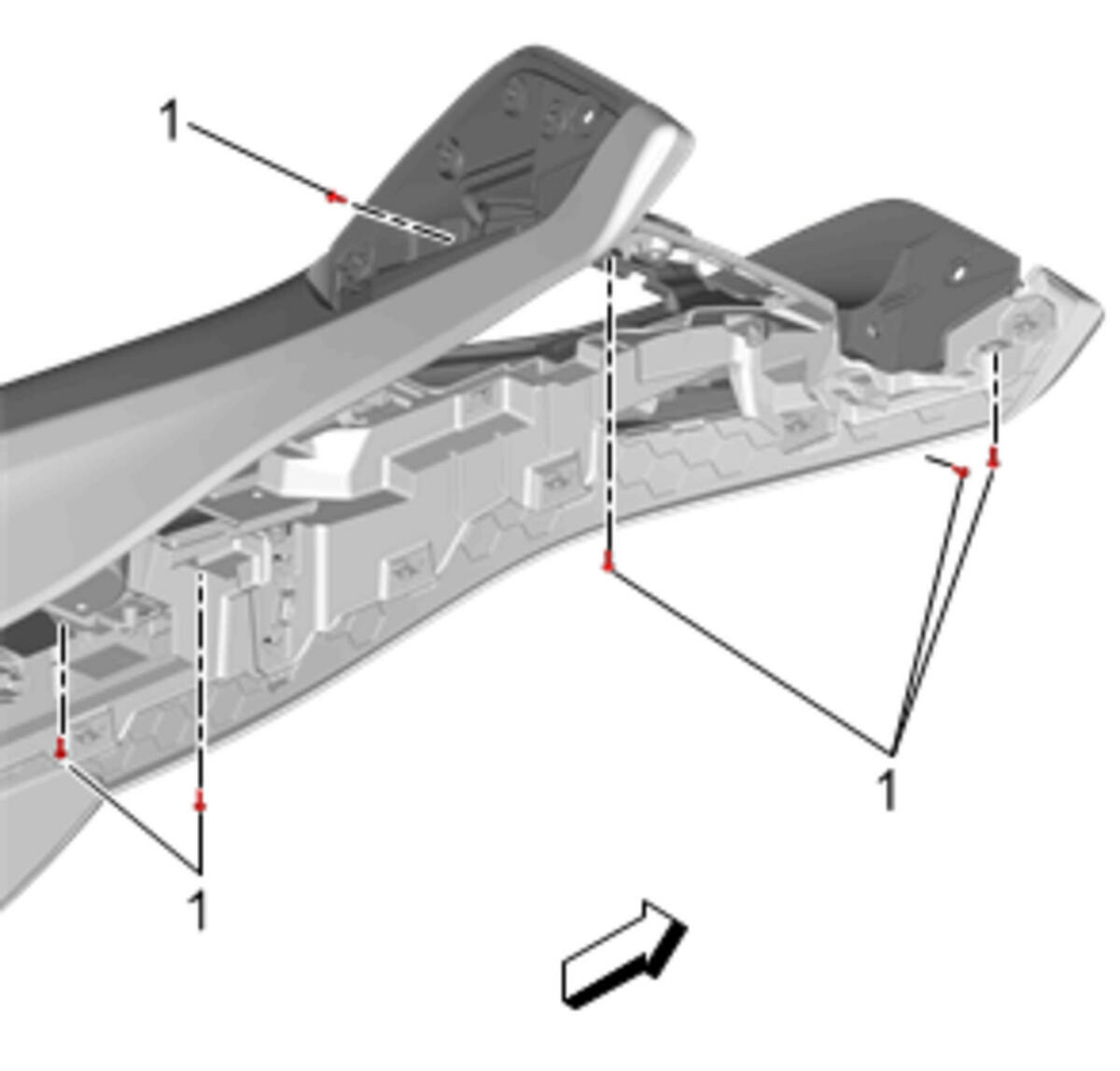

Front Floor Rear Trim Plate Bolt (1) - Install and tighten [6x] 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

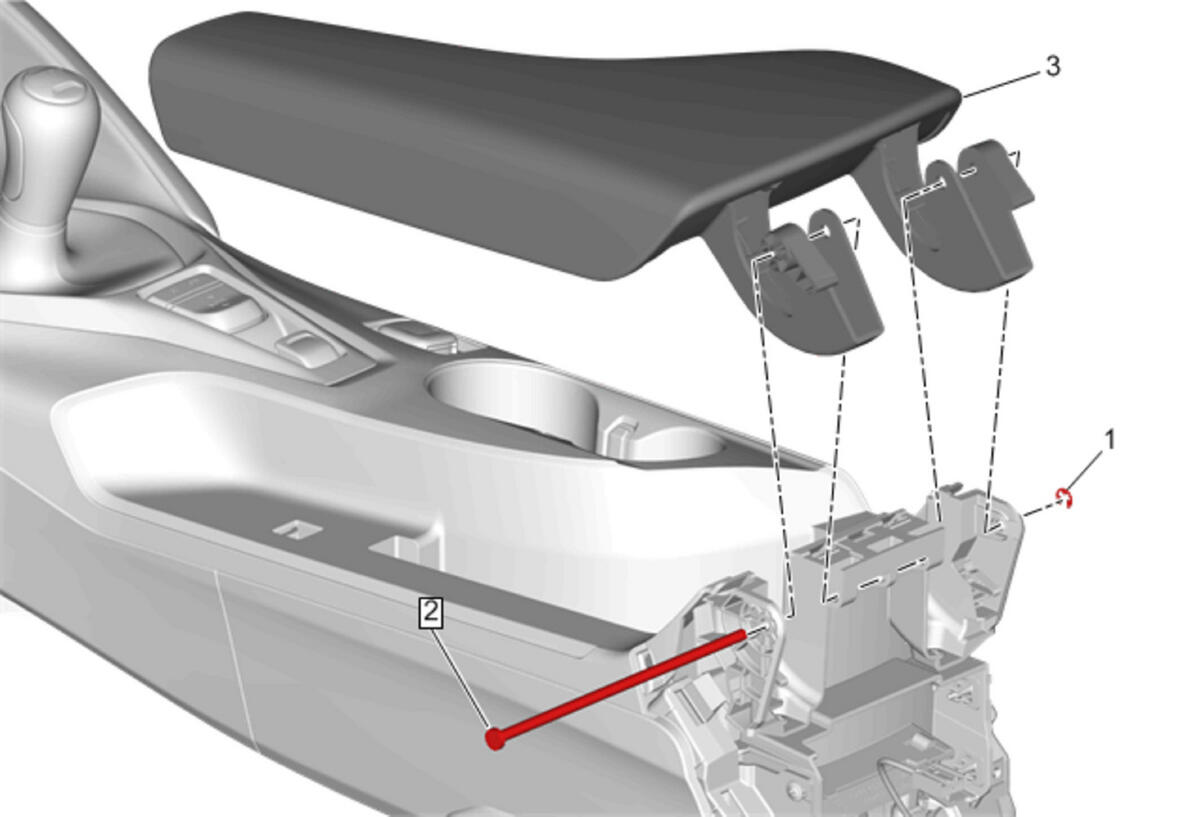

Front Floor Console Armrest (3) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

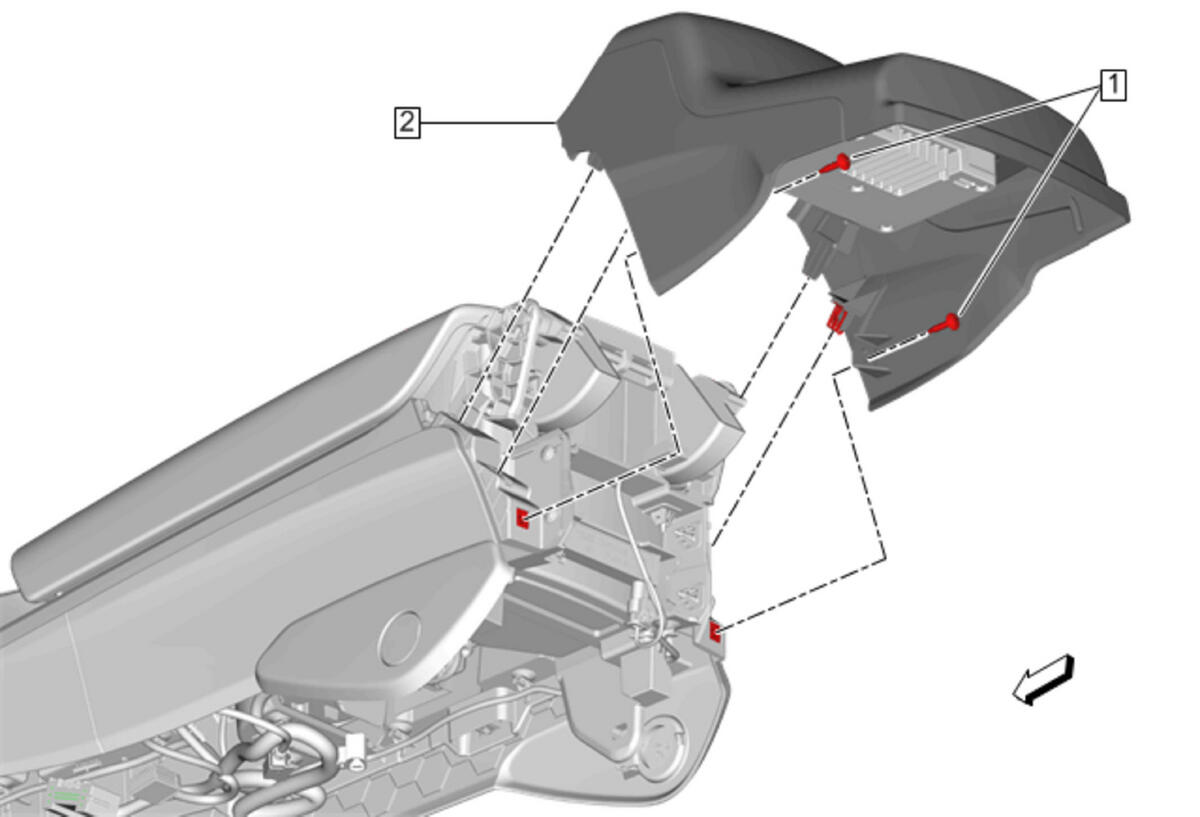

Front Floor Console Rear Trim Panel - Endcap (2) - Install - Front Floor Console Rear Trim Panel Replacement (Endcap)
Courtesy of GENERAL MOTORS COMPANY

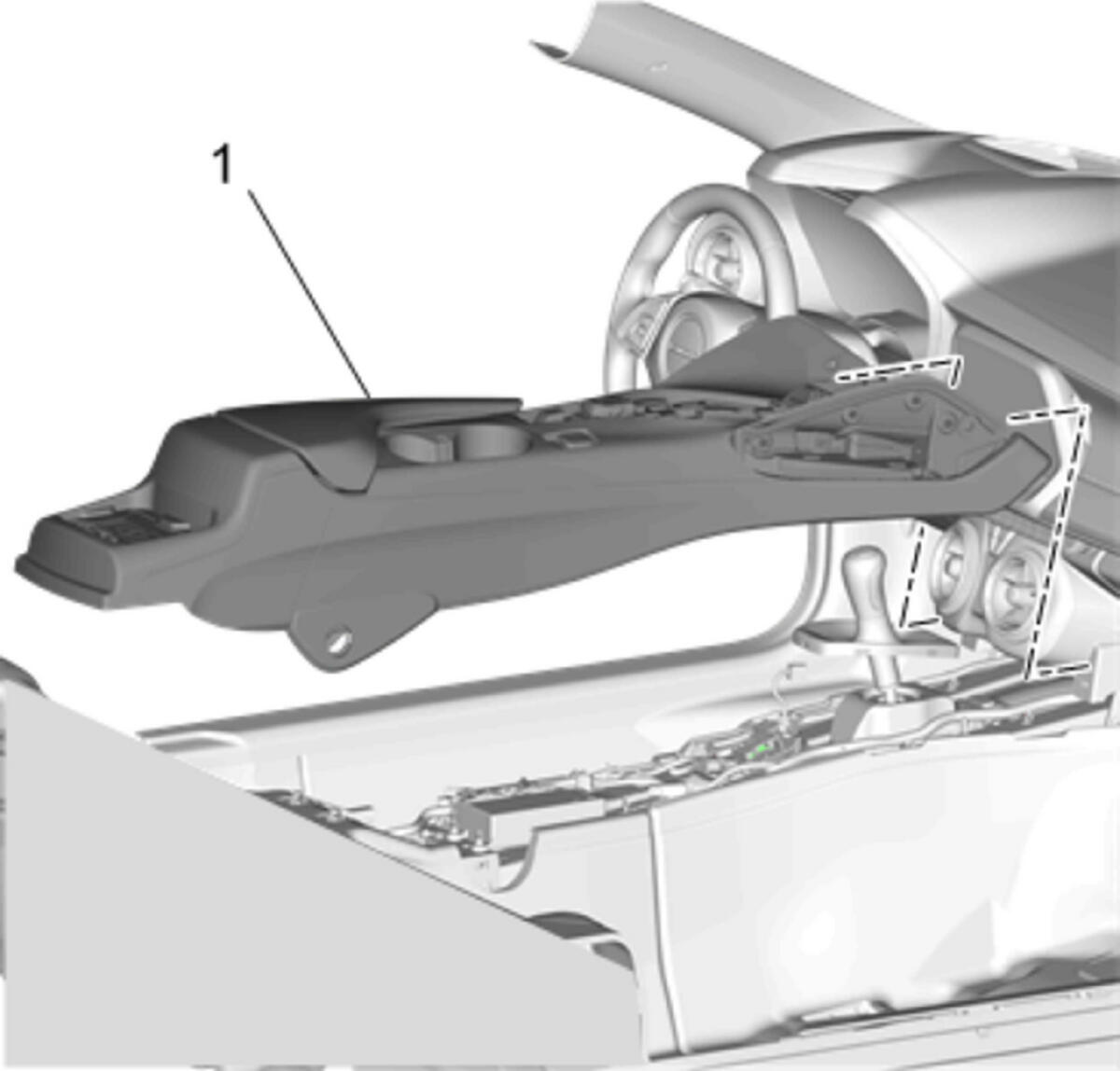

Front Floor Console (1) - Install - Front Floor Console Replacement
