Automatic Transmission Control Indicator Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

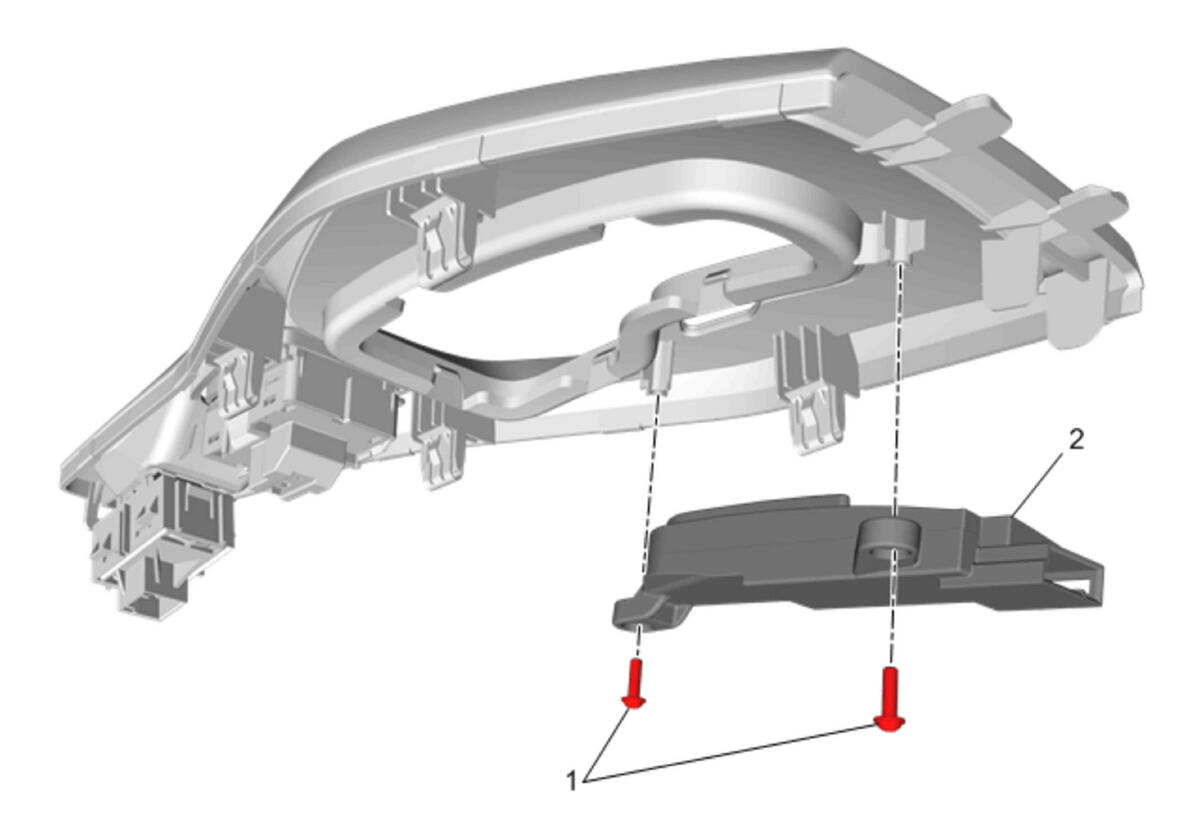

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Floor Console Trim Plate Replacement (Automatic)
1	Automatic Transmission Control Indicator Housing Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Automatic Transmission Control Indicator Bezel
