Instrument Panel Harness Routing - Engine Compartment

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

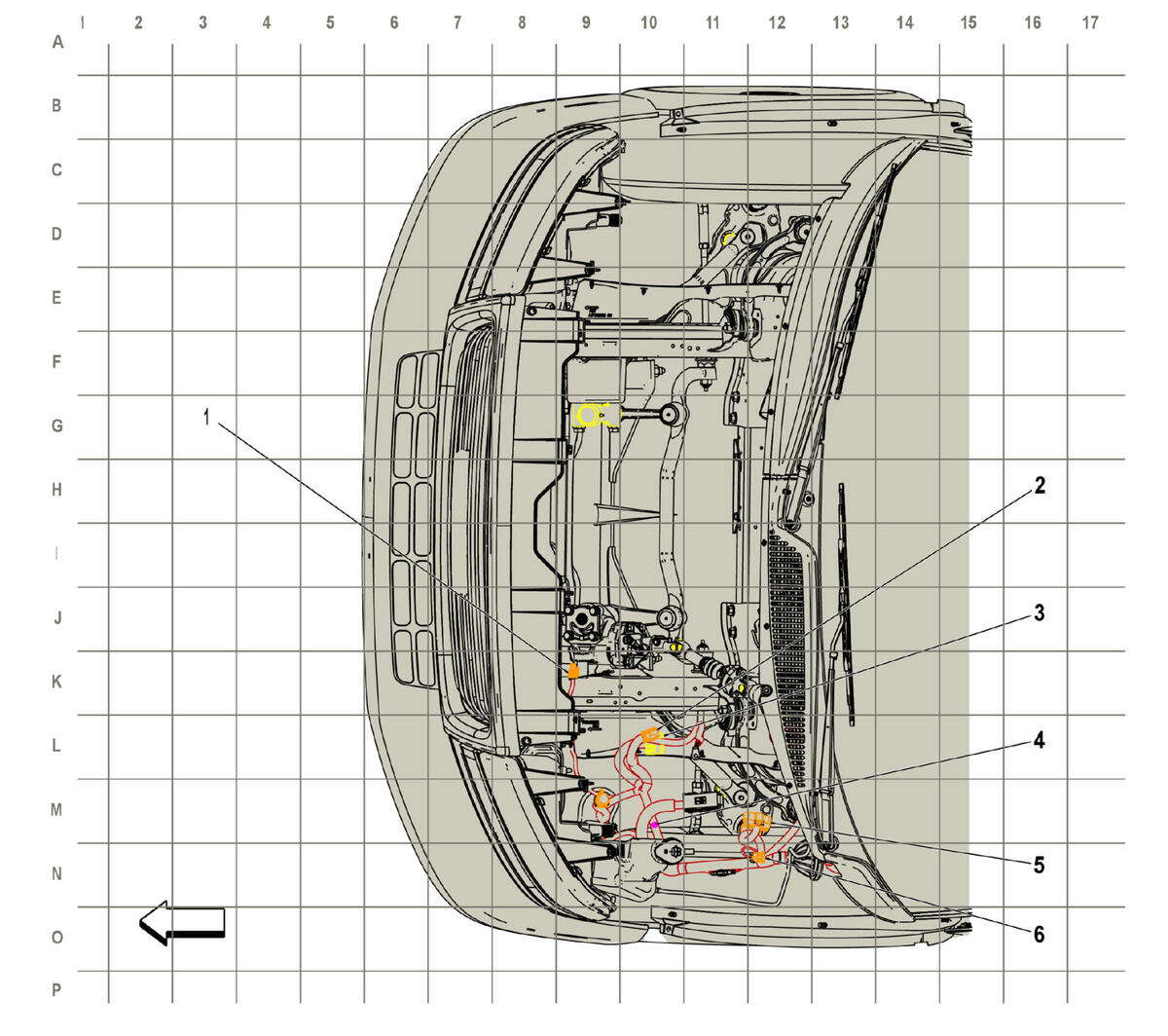

GM6040698Courtesy of GENERAL MOTORS COMPANY
Items
1. X104 Instrument Panel Wiring Harness to Air Bag Jumper Wiring Harness X104 Instrument Panel Wiring Harness to Air Bag Jumper Wiring Harness
2. X185 Instrument Panel Wiring Harness to Chassis Wiring Harness X185 Instrument Panel Wiring Harness to Chassis Wiring Harness
3. X100 Instrument Panel Wiring Harness to Engine Wiring Harness X100 Instrument Panel Wiring Harness to Engine Wiring Harness
4. J211 Instrument Panel (UD7/UFT)
5. X202 Instrument Panel Wiring Harness to Engine Wiring Harness X202 Instrument Panel Wiring Harness to Engine Wiring Harness
6. X141 Instrument Panel Wiring Harness to Brake Fluid Level Indicator Wiring Harness (UJ1) X141 Instrument Panel Wiring Harness to Brake Fluid Level Indicator Wiring Harness
