Engine Harness Routing - Front (LV1)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

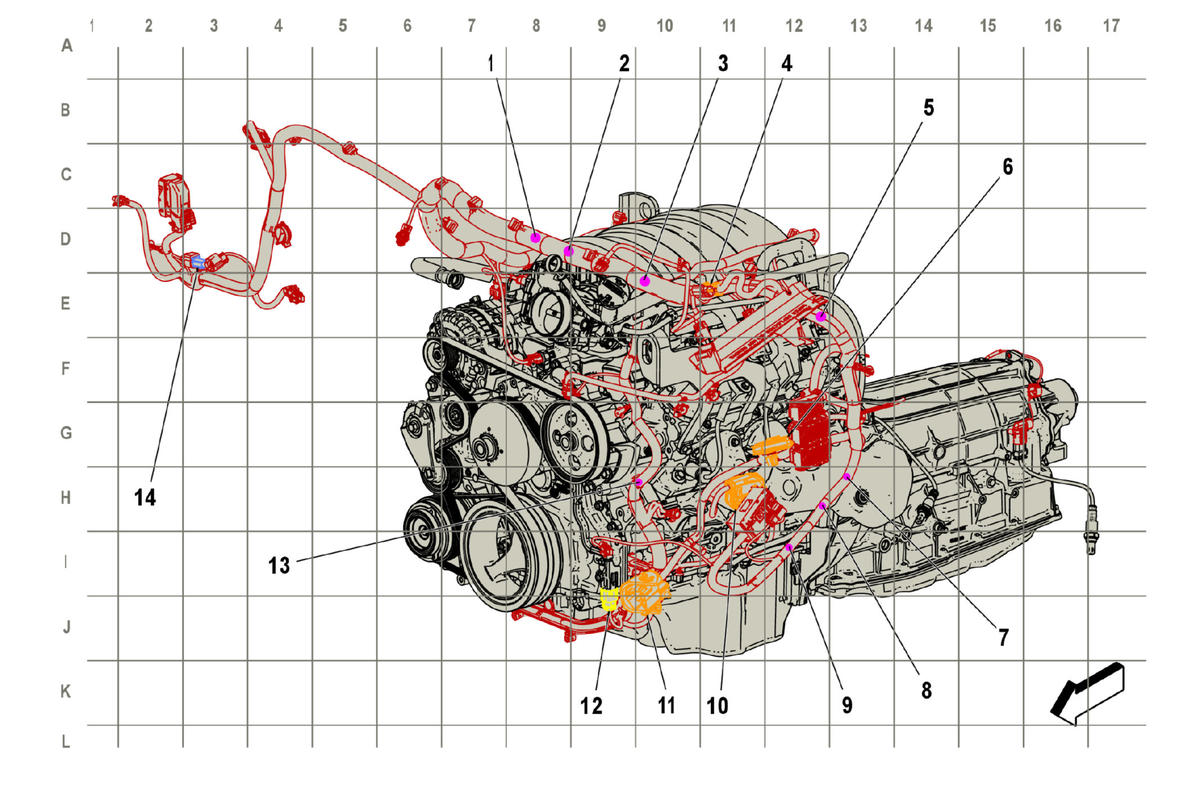

| Items |
|---|
| 1. J188 Right Ignition Coil Wiring Harness |
| 2. J112 Engine Wiring Harness |
| 3. J182 Left Ignition Coil Wiring Harness |
| 4. X109 Engine Wiring Harness to Underhood Lamp Wiring Harness (TR9) X109 Engine Wiring Harness to Underhood Lamp Wiring Harness |
| 5. J115 Engine Wiring Harness |
| 6. X102 Chassis Wiring Harness to Fuel Tank Wiring Harness X102 Chassis Wiring Harness to Fuel Tank Wiring Harness |
| 7. J185 Right Ignition Coil Wiring Harness (LV1) |
| 8. J184 Left Ignition Coil Wiring Harness (LV1) |
| 9. J107 Engine Wiring Harness |
| 10. X101 Engine Wiring Harness to Chassis Wiring Harness X101 Engine Wiring Harness to Chassis Wiring Harness |
| 11. X100 Instrument Panel Wiring Harness to Engine Wiring Harness X100 Instrument Panel Wiring Harness to Engine Wiring Harness |
| 12. X130 Engine Wiring Harness to Camshaft Position Sensor Jumper Wiring Harness X130 Engine Wiring Harness to Camshaft Position Sensor Jumper Wiring Harness |
| 13. J101 Engine Wiring Harness |
| 14. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus |
