Passenger Seat Components

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

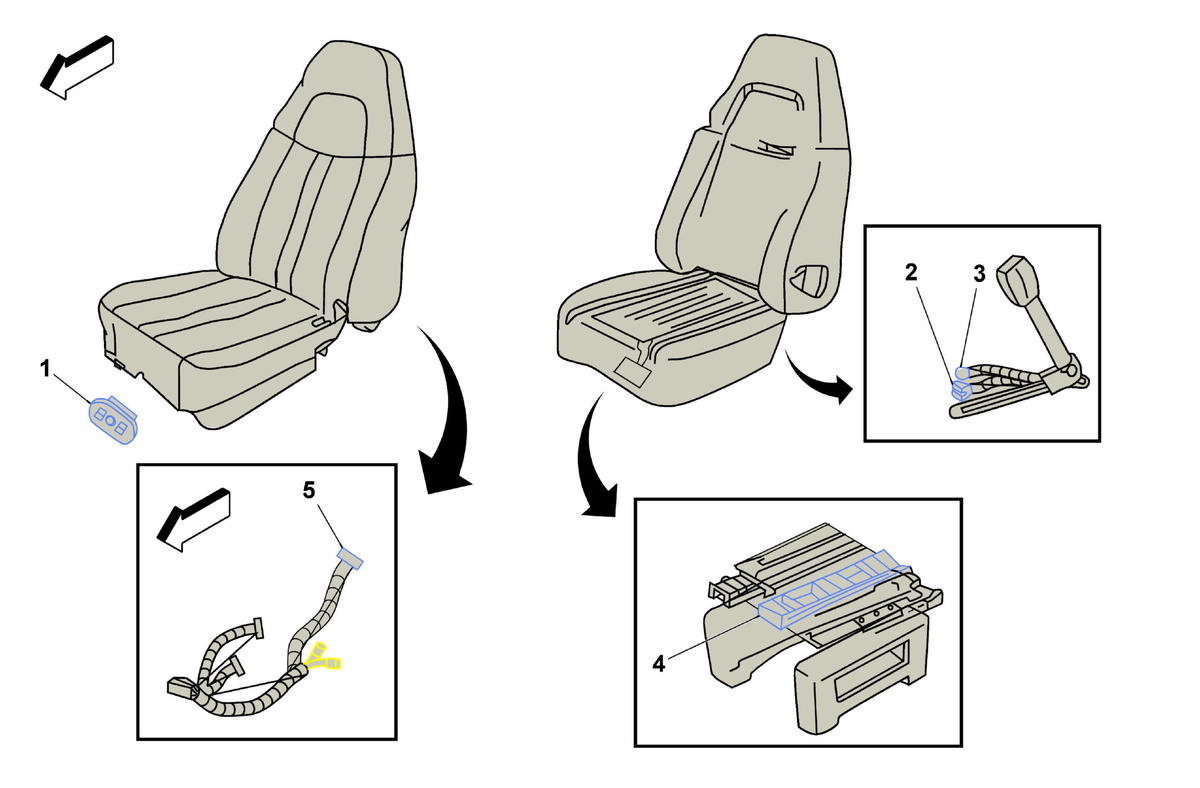

GM4656488Courtesy of GENERAL MOTORS COMPANY
Items
1. S64P Seat Adjuster Switch - Passenger (AG2) S64P Seat Adjuster Switch - Passenger (AG2)
2. F109P Seat Belt Buckle Pretensioner - Passenger (AK5) F109P Seat Belt Buckle Pretensioner - Passenger
3. B153P Seat Belt Buckle - Passenger (AK5) B153P Seat Belt Buckle - Passenger
4. M49P Seat Motor Assembly - Passenger (AG2) M49P Seat Motor Assembly - Passenger (AG2)
5. X306 Body Wiring Harness to Seat Wiring Harness - Passenger X306 Body Wiring Harness to Seat Wiring Harness - Passenger
