M49P Seat Motor Assembly - Passenger (AG2)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

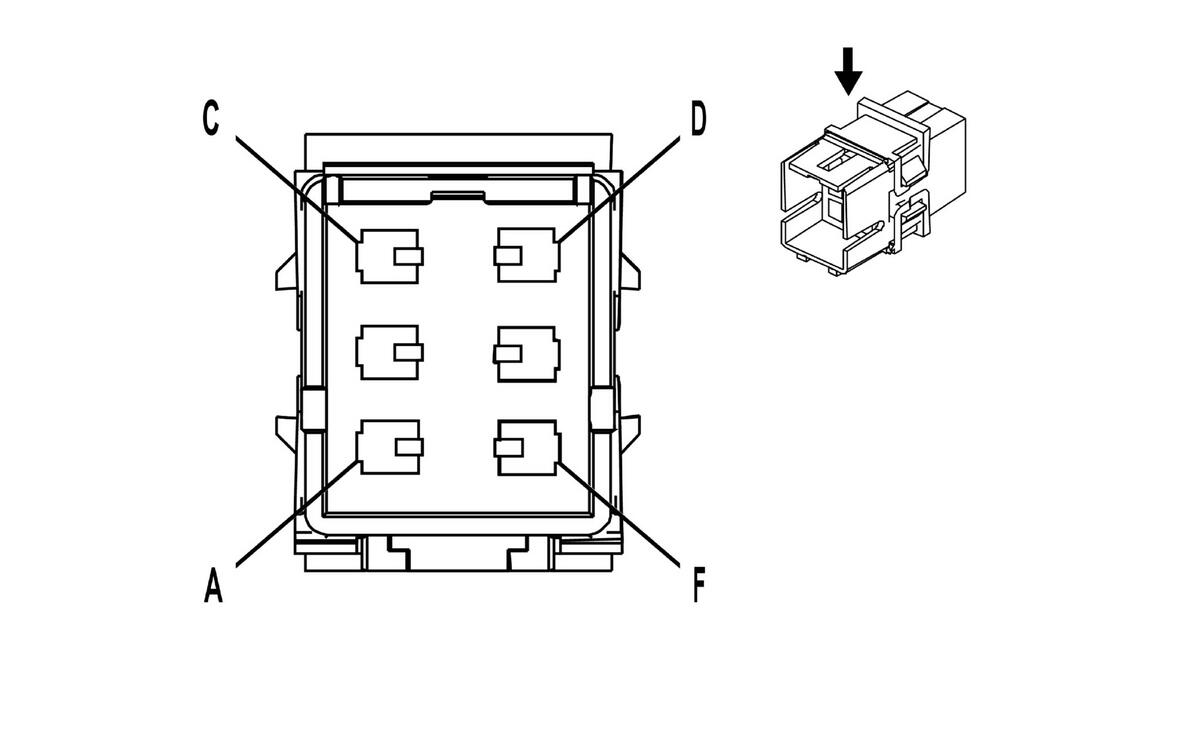

Connector Part Information
- Harness Type: Passenger Seat Motor Jumper
- OEM Connector: 12015345
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M Weather Pack Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
YE |
288 |
Passenger Seat Rear Vertical Motor Up Control |
I |
- |
| B |
- |
BU |
289 |
Passenger Seat Rear Vertical Motor Down Control |
I |
- |
| C |
- |
TN |
296 |
Passenger Seat Horizontal Motor Forward Control |
I |
- |
| D |
- |
GN |
290 |
Passenger Seat Horizontal Motor Rearward Control |
I |
- |
| E |
- |
GN |
297 |
Passenger Seat Front Vertical Motor Up Control |
I |
- |
| F |
- |
BU |
298 |
Passenger Seat Front Vertical Motor Down Control |
I |
- |
