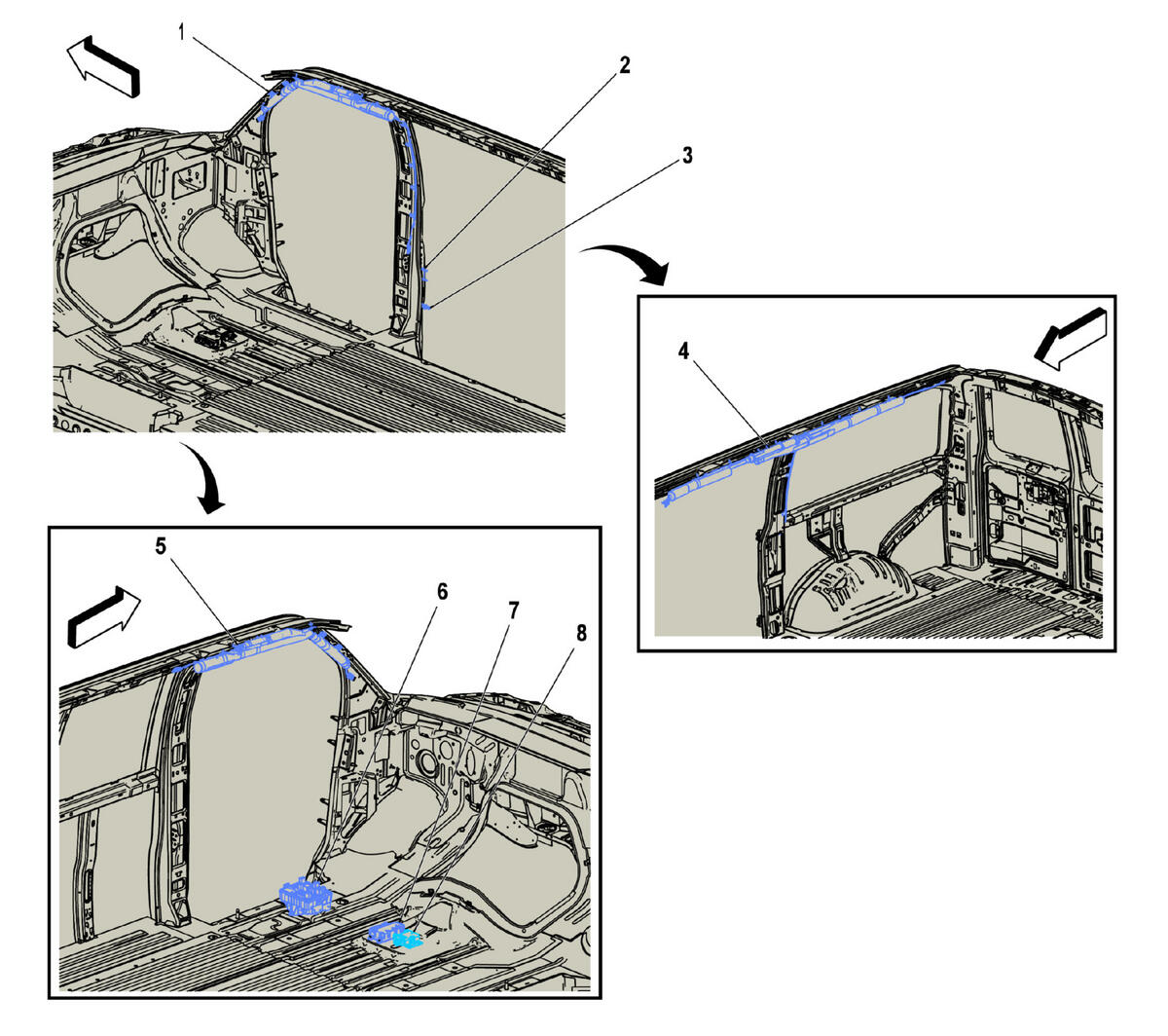

Passenger Compartment Components

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. F105RF Roof Rail Air Bag - Right Front (ASF) F105RF Roof Rail Air Bag - Right Front
2. X87RB Sliding Door Jamb Contact Plate - Right Body (AU3 with E24/YA2) X87RB Sliding Door Jamb Contact Plate - Right Body (Body) , or X87RB Sliding Door Jamb Contact Plate - Right Body (Door)
3. B28F Door Ajar Switch - Right Sliding (Cargo/Passenger) B28F Door Ajar Switch - Right Sliding
4. F105RR Roof Rail Air Bag - Right Rear (ASF) F105RR Roof Rail Air Bag - Right Rear
5. F105LF Roof Rail Air Bag - Left Front (ASF) F105LF Roof Rail Air Bag - Left Front
6. X52A Fuse Block - Passenger Compartment X52A Fuse Block - Passenger Compartment X1 , or X52A Fuse Block - Passenger Compartment X2 , or X52A Fuse Block - Passenger Compartment X3
7. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 , or K36 Inflatable Restraint Sensing and Diagnostic Module X2
8. B176 Multi-axis Acceleration Sensor Module B176 Multi-axis Acceleration Sensor Module
