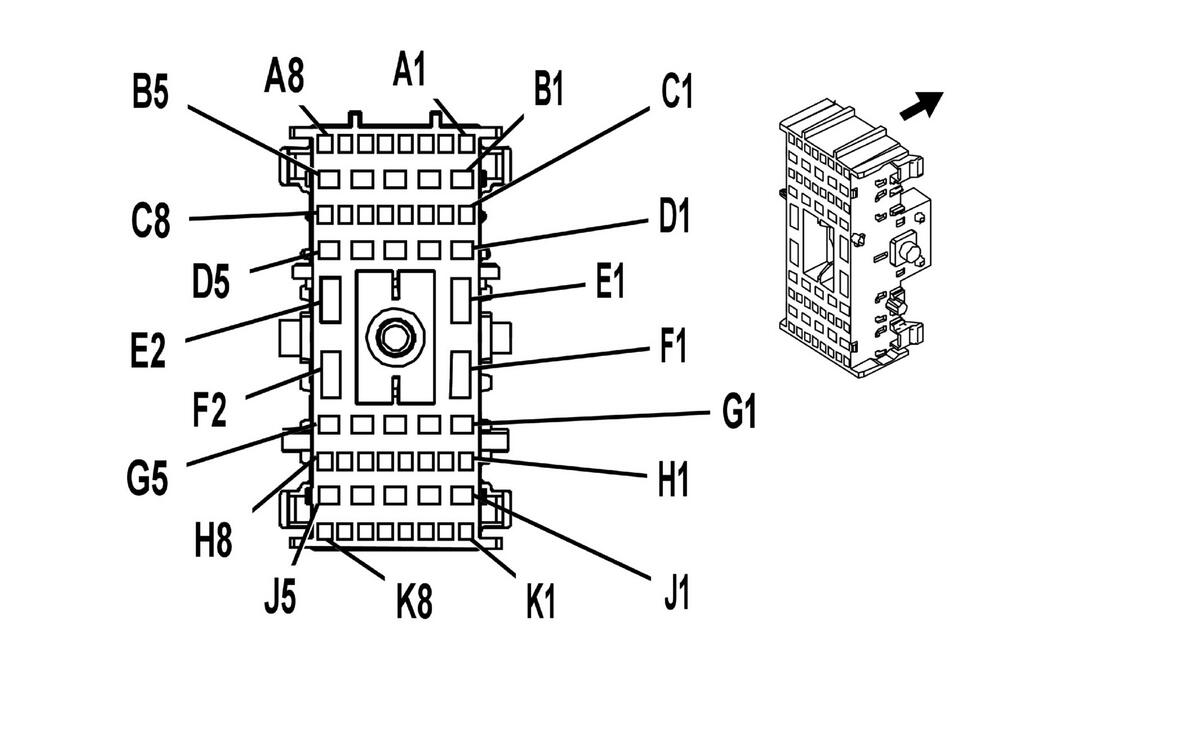

X52A Fuse Block - Passenger Compartment X1
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575465 | J-35616-44 (YE) | J-38125-558 |
| II | 13575735 | J-35616-14 (GN) | J-38125-215A |
| III | 13575753 | J-35616-4A (PU) | J-38125-215A |
| III | 13575753 | J-35616-4A (PU) | J-38125-215A |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| A1 - A3 | - | - | - | Not Occupied | - | - |
| A4 | 0.5 | YE | 6817 | LED Backlight Dimming Control 1 | II | - |
| A5 | 0.35 | BU | 45 | Park Lamp Relay Control | II | - |
| A6 | 0.35 | BN | 6136 | Control | II | - |
| A7 - A8 | - | - | - | Not Occupied | - | - |
| B1 | 0.8 | RD/WH | 3240 | Battery Positive Voltage | III | - |
| B2 | 1 | BN | 2109 | Trailer Park Lamp Control | III | - |
| B3 | 0.35 | BN | 341 | Run Ignition 3 Voltage | III | - |
| B4 | 0.75 | GY/BN | 2309 | Front Park Lamp Control | III | - |
| B5 | 1 | BN | 2109 | Trailer Park Lamp Control | III | - |
| C1 | 1 | YE | 618 | Left Rear Turn Signal Lamp Control | II | - |
| C2 | 0.35 | BN/WH | 230 | Instrument Panel Lamp Dimming Control | II | - |
| C3 | 1 | GN | 619 | Right Rear Turn Signal Lamp Control | II | - |
| C4 | 0.35 | WH | 193 | Rear Defogger Relay Control | II | - |
| C5 | 0.35 | BN | 341 | Run Ignition 3 Voltage | II | - |
| C6 | - | - | - | Not Occupied | - | - |
| C7 | 0.35 | OG | 300 | Run Ignition 3 Voltage | II | - |
| C8 - D3 | - | - | - | Not Occupied | - | - |
| D4 | 0.5 | VT/BK | 1639 | Run/Crank Ignition 1 Voltage | III | - |
| D5 | 0.5 1 |
BU BN |
6807 141 |
DC/AC Inverter Control Run Ignition 3 Voltage |
III | - - |
| E1 | - | RD/BK | 1042 | Battery Positive Voltage | III | - |
| E2 | 0.8 | BK | 350 | Ground | I | - |
| F1 - G2 | - | - | - | Not Occupied | - | - |
| G3 | 0.8 0.5 |
BU/WH GY |
1315 5861 |
Right Front Turn Signal Lamp Control Passenger Side Object Detection LED Signal 1 |
III III |
DE5 UFT |
| G4 | 1 | RD/WH | 340 | Battery Positive Voltage | III | - |
| G5 | - | - | - | Not Occupied | - | - |
| H1 | 0.8 0.5 |
BU/WH GY/YE |
1314 5853 |
Left Front Turn Signal Lamp Control Driver Side Side Object Detection LED Signal 1 |
II II |
DE5 UFT |
| H2 | 0.8 1 |
BU/WH BU/WH |
149 149 |
Courtesy Lamp Control Courtesy Lamp Control |
II | - - |
| H3 | 0.35 | BK/WH | 351 | Signal Ground | II | - |
| H4 | 0.35 | YE | 43 | Accessory Ignition Voltage | II | - |
| H5 | 0.8 | RD/WH | 4440 | Battery Positive Voltage | II | - |
| H6 | 0.35 | RD/WH | 2840 | Battery Positive Voltage | II | - |
| H7 | 0.35 | RD/WH | 540 | Battery Positive Voltage | II | - |
| H8 | 0.5 | RD/WH | 5340 | Battery Positive Voltage | II | - |
| J1 - J4 | - | - | - | Not Occupied | - | - |
| J5 | 1 | GN | 1624 | Trailer Backup Lamp Control | III | - |
| K1 | - | - | - | Not Occupied | - | - |
| K2 | 0.5 | YE | 356 | Driver Door Lock Relay Unlock Control | II | - |
| K3 | 0.5 | BU | 244 | Passenger Door Lock Switch Lock Control | II | - |
| K4 | 0.5 | BU | 244 | Passenger Door Lock Switch Lock Control | II | - |
| K5 | 0.5 | YE | 356 | Driver Door Lock Relay Unlock Control | II | - |
| K6 - K7 | - | - | - | Not Occupied | - | - |
| K8 | 0.35 | BU | 38 | Backup Lamp Relay Control | II | - |
