Driver Seat Components

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

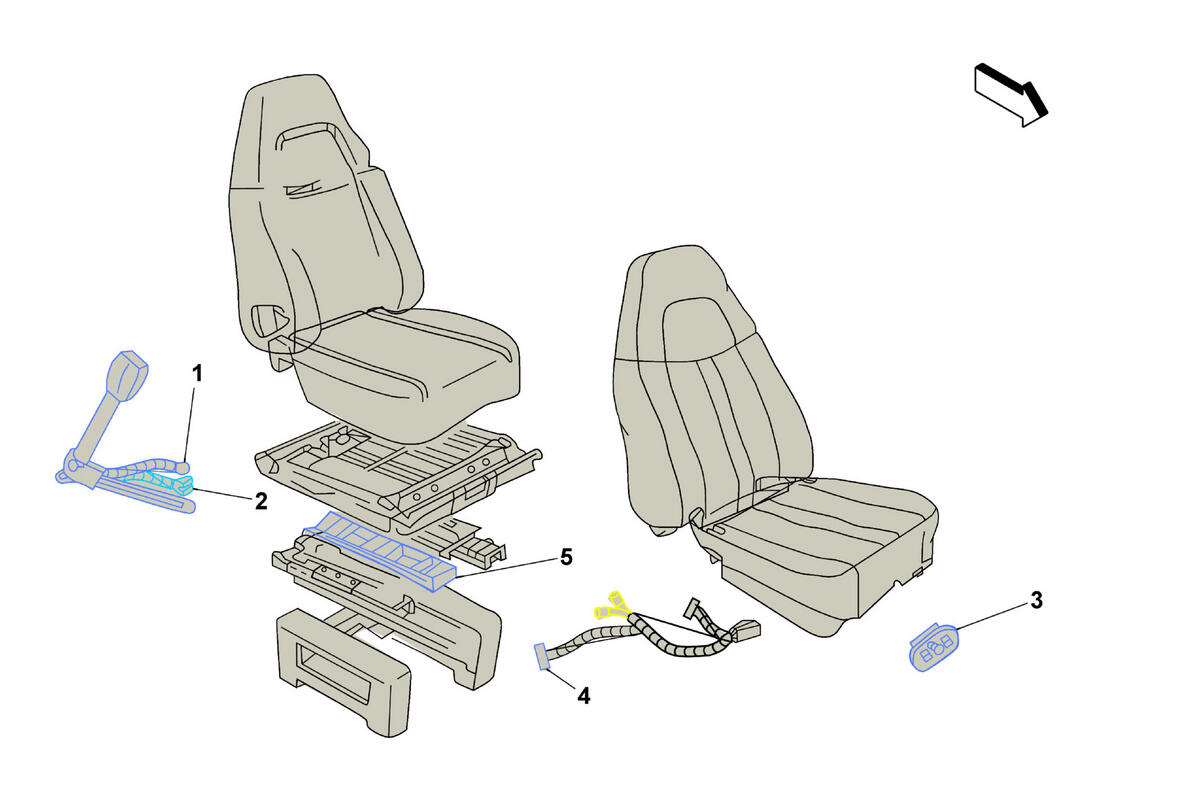

GM4004063Courtesy of GENERAL MOTORS COMPANY
Items
1. B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver
2. F109D Seat Belt Buckle Pretensioner - Driver F109D Seat Belt Buckle Pretensioner - Driver
3. S64D Seat Adjuster Switch - Driver (AG1) S64D Seat Adjuster Switch - Driver (AG1)
4. X307 Body Wiring Harness to Seat Wiring Harness - Driver X307 Body Wiring Harness to Seat Wiring Harness - Driver
5. M49D Seat Motor Assembly - Driver (AG1) M49D Seat Motor Assembly - Driver (AG1)
