S64D Seat Adjuster Switch - Driver (AG1)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

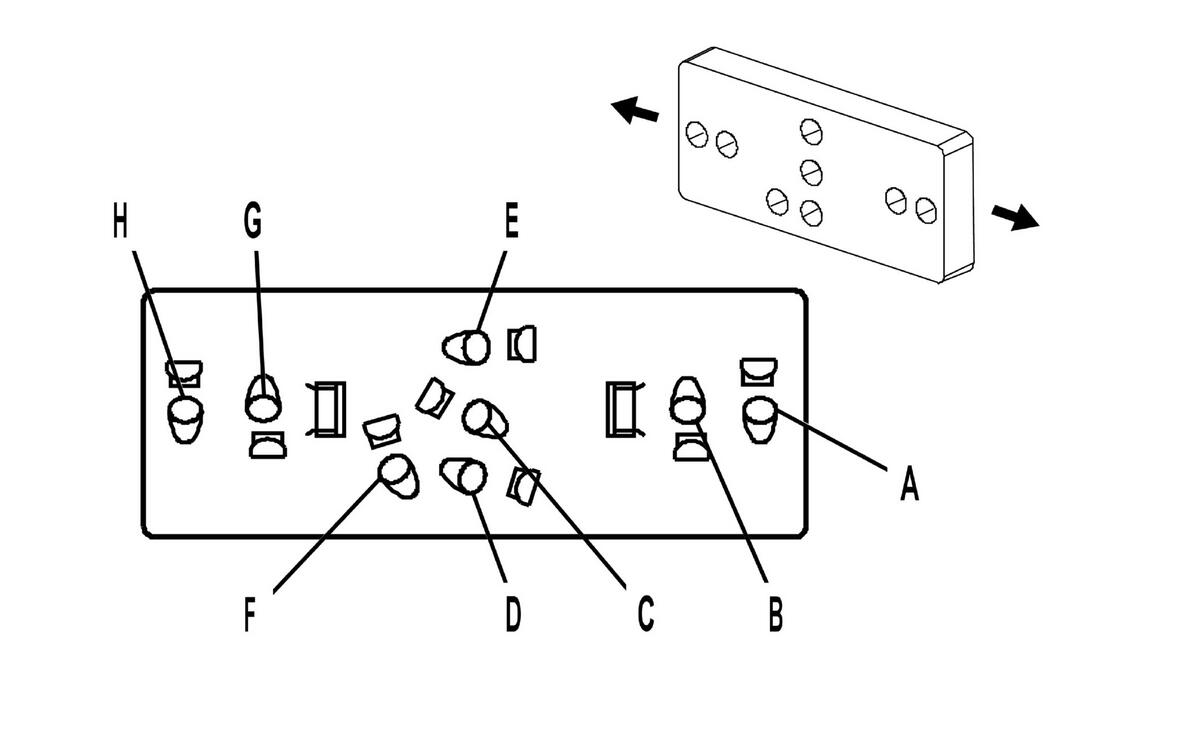

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12066386
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F Pin Grip Connector (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
BU |
283 |
Driver Seat Rear Vertical Motor Down Control |
I |
- |
| B |
- |
YE |
282 |
Driver Seat Rear Vertical Motor Up Control |
I |
- |
| C |
- |
BK |
450 |
Ground |
I |
- |
| D |
- |
TN |
285 |
Driver Seat Horizontal Motor Forward Control |
I |
- |
| E |
- |
GN |
284 |
Driver Seat Horizontal Motor Rearward Control |
I |
- |
| F |
- |
RD/WH |
3540 |
Battery Positive Voltage |
I |
- |
| G |
- |
BU |
287 |
Driver Seat Front Vertical Motor Down Control |
I |
- |
| H |
- |
GN |
286 |
Driver Seat Front Vertical Motor Up Control |
I |
- |
