Rear Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

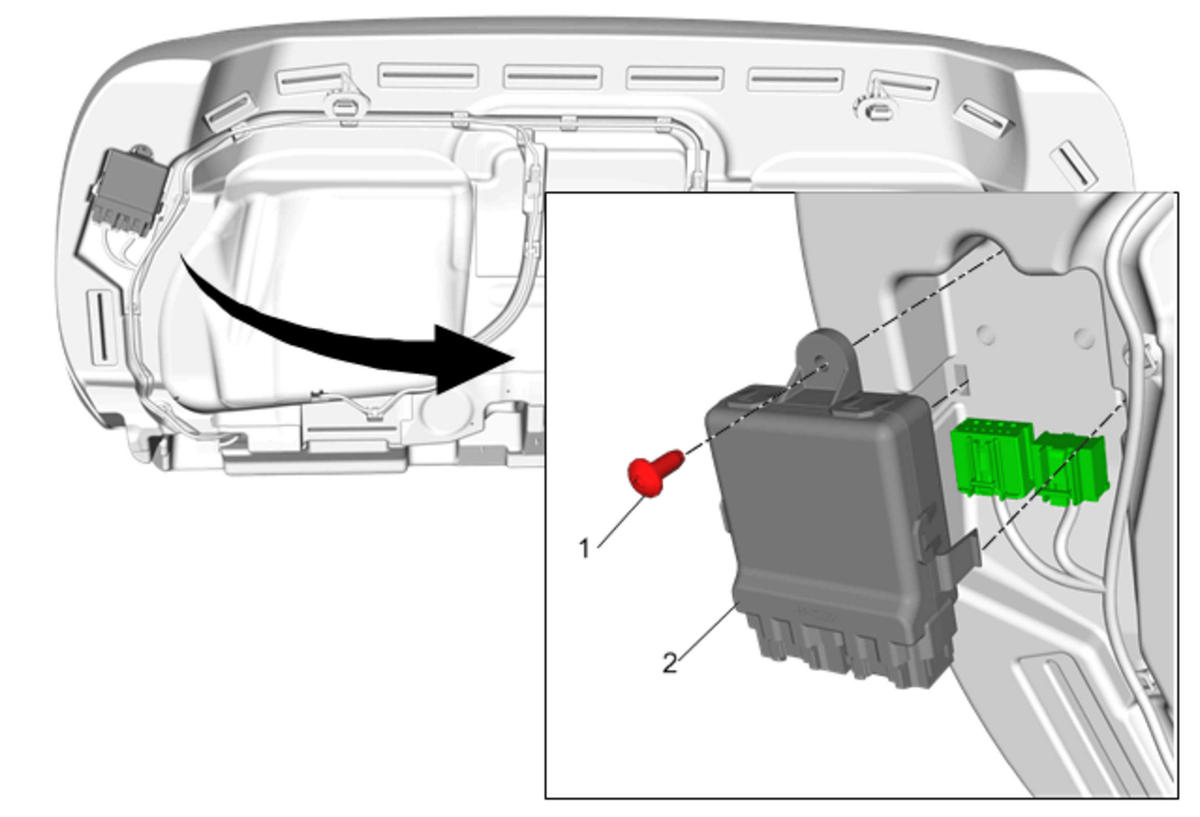

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Seat Cushion - Remove - Rear Seat Cushion Removal and Installation
1	Rear Seat Heater Control Module Retainer
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connector. Rear Seat Cushion - Install - Rear Seat Cushion Removal and Installation

Callout

Component Name

Preliminary Procedure
Rear Seat Cushion - Remove - Rear Seat Cushion Removal and Installation

Rear Seat Heater Control Module Retainer

Rear Seat Heater Control Module

Procedure
