Rear Seat Cushion Removal and Installation

Courtesy of GENERAL MOTORS COMPANY

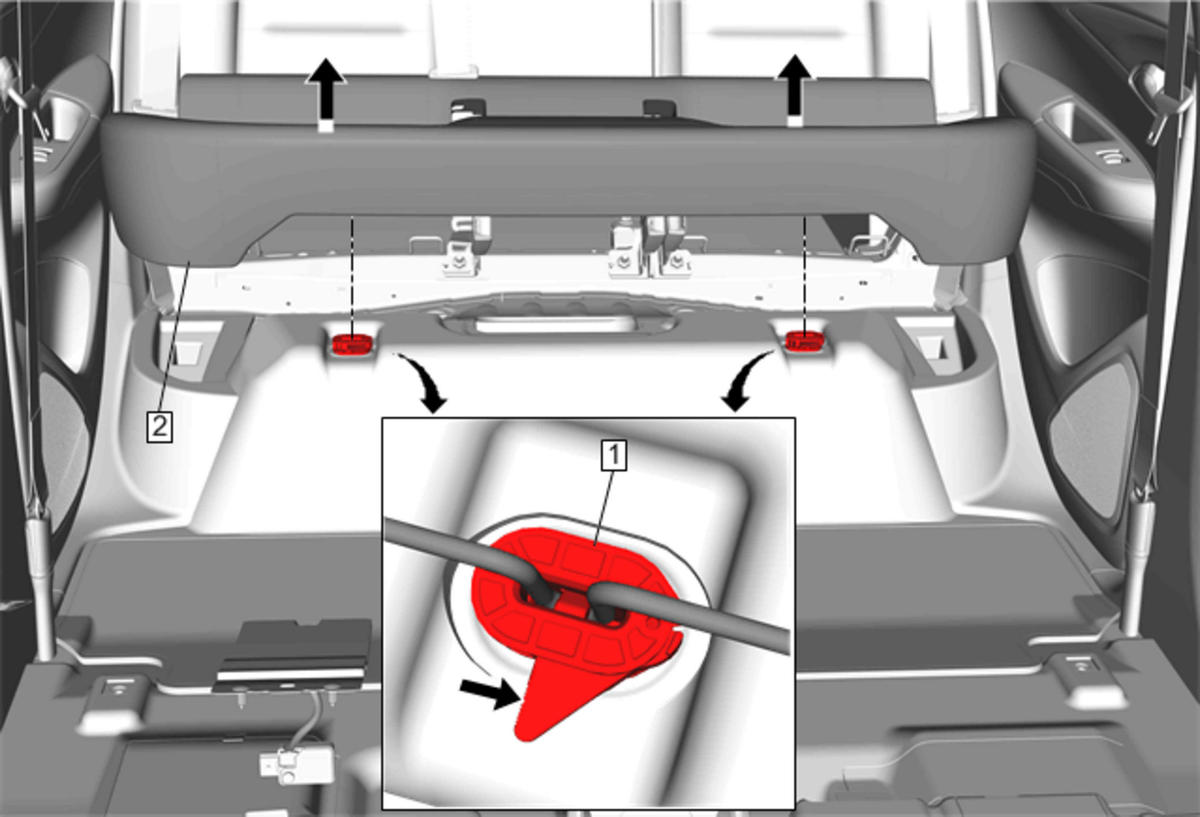

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Push pin in the slot on mini-buckle to disengage the rear center seat belt retractor from rear center seat belt buckle - Rear Seat Center Belt Retractor Replacement
1	Rear Seat Cushion Clip [2x] Procedure Release the cushion clip tab.
2	Rear Seat Cushion Procedure If equipped, disconnect the electrical connectors. Pull up on the front of the seat cushion and lift out of the vehicle.

Callout

Component Name

Preliminary Procedure
Push pin in the slot on mini-buckle to disengage the rear center seat belt retractor from rear center seat belt buckle - Rear Seat Center Belt Retractor Replacement

Rear Seat Cushion Clip [2x]
Procedure
Release the cushion clip tab.

Rear Seat Cushion

Procedure

If equipped, disconnect the electrical connectors.
Pull up on the front of the seat cushion and lift out of the vehicle.
