Front Seat Cushion Heater Replacement

Courtesy of GENERAL MOTORS COMPANY

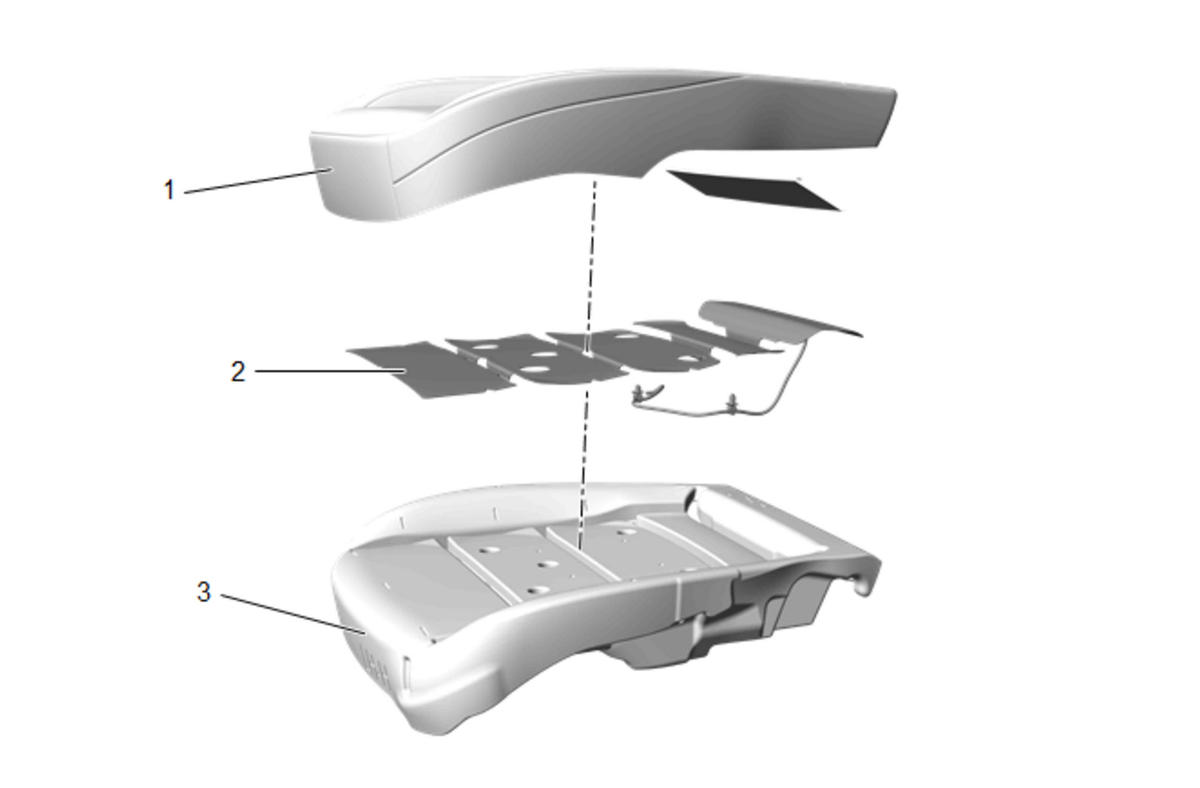

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1	Front Seat Cushion Cover
2	Front Seat Cushion Heater Procedure  Separate the front seat cushion heater mat from the front seat cushion pad by using a heat gun to loosen the glue, moving slowly from one end of the mat to the other end, slowly peeling the heater mat up. Do not to use high temperatures or hold the heat gun in one place for too long.
3	Front Seat Cushion Pad
