Rear Seat Center Belt Retractor Replacement

Courtesy of GENERAL MOTORS COMPANY

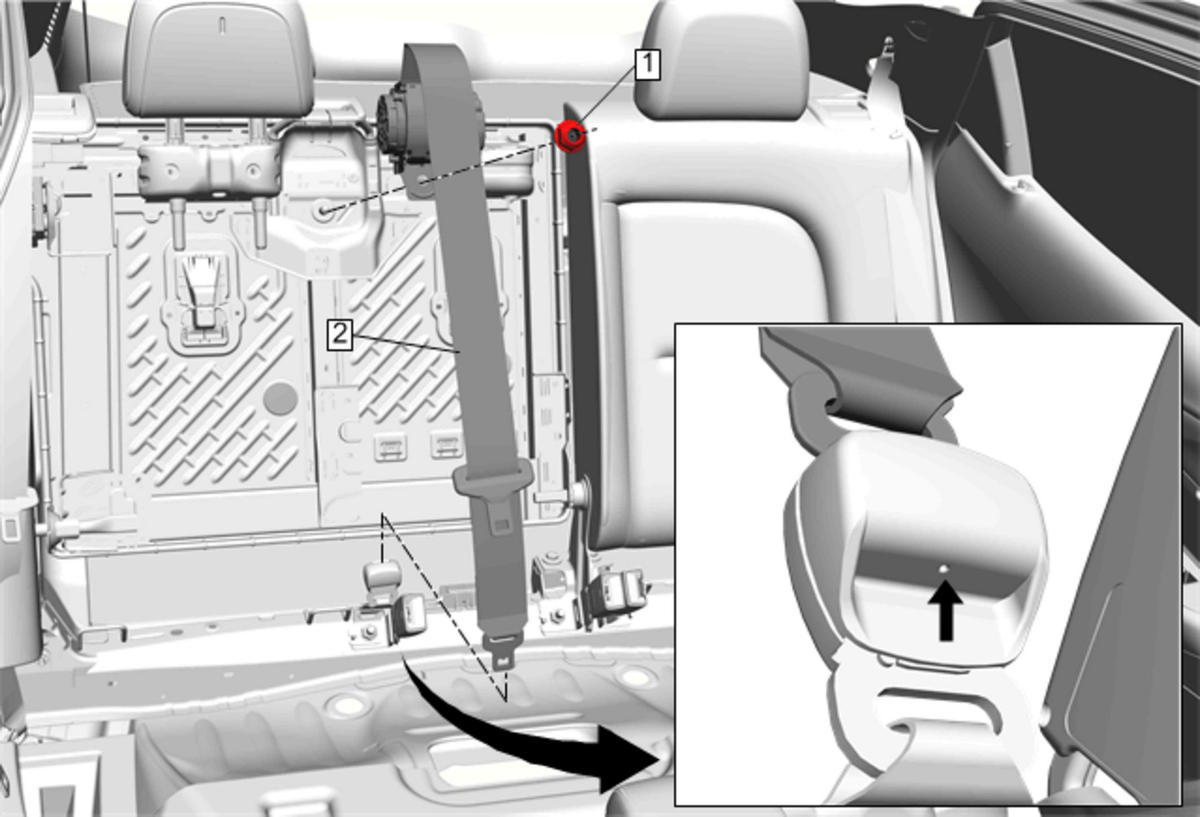

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Push pin in the slot on mini-buckle to disengage the rear center seat belt retractor from rear center seat belt buckle. Rear Seat Back Cover and Pad Replacement (60%)Rear Seat Back Cover and Pad Replacement (with Armrest, 60%)Rear Seat Back Cover and Pad Replacement (40%) NOTE: Do not separate the cover from the pad.
1	Rear Center Seat Belt Retractor Nut CAUTION: Fastener Caution NOTE: Selfcutting bolts, prevailing nuts must be replaced if loosened. Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Belt Retractor

Callout

Component Name

Preliminary Procedures

NOTE:

Do not separate the cover from the pad.

Rear Center Seat Belt Retractor Nut

CAUTION:

NOTE:

Selfcutting bolts, prevailing nuts must be replaced if loosened.

Tighten
45 N.m (33 lb ft)

Rear Seat Center Belt Retractor
