Front Seat Inner Recliner Finish Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

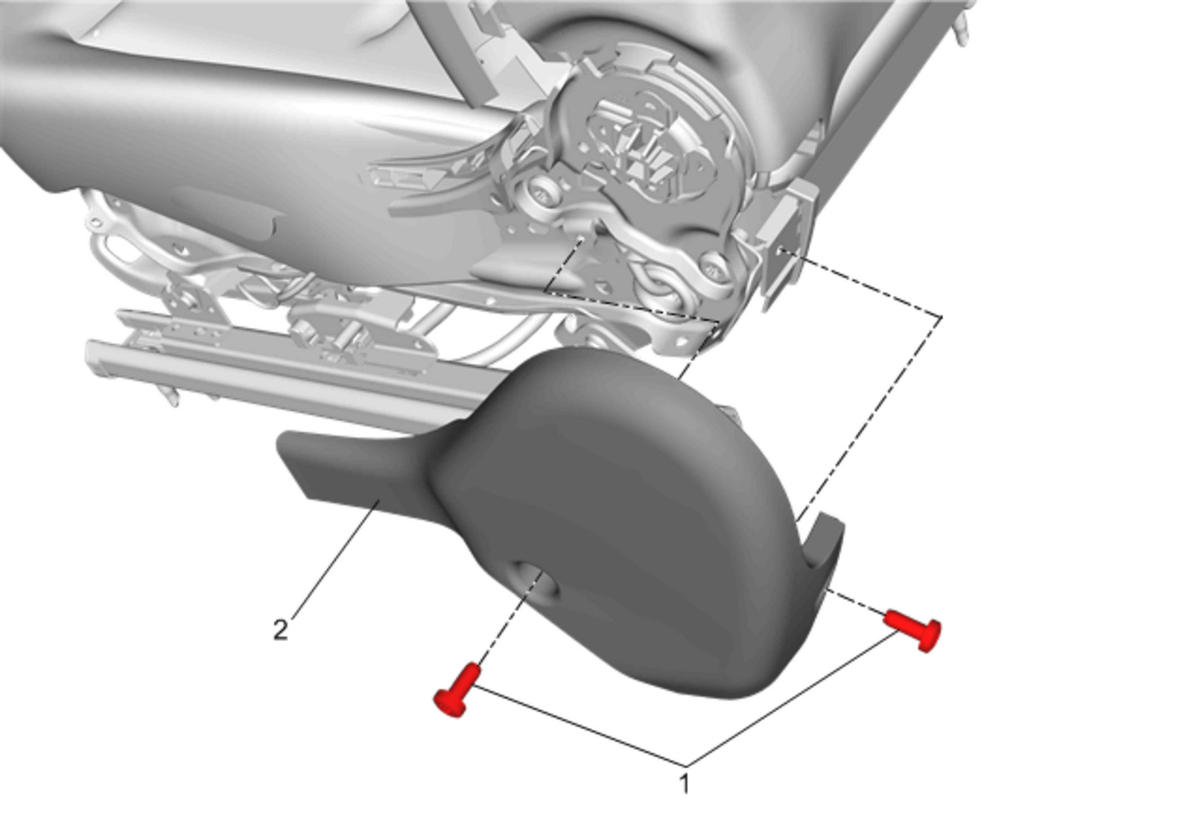

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Remove the appropriate front seat. Front Seat Removal and Installation (Manual) , or Front Seat Removal and Installation (Power)
1	Front Seat Cushion Outer Finish Cover Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Seat Inner Recliner Finish Cover Procedure Use a flat-bladed plastic trim tool to release the cover. Install the appropriate front seat. Front Seat Removal and Installation (Manual) , or Front Seat Removal and Installation (Power)

Callout

Component Name

Front Seat Cushion Outer Finish Cover Bolt [2x]

CAUTION:

Tighten
3 N.m (27 lb in)

Front Seat Inner Recliner Finish Cover

Procedure

Use a flat-bladed plastic trim tool to release the cover.
Install the appropriate front seat. Front Seat Removal and Installation (Manual) , or Front Seat Removal and Installation (Power)
