Front Seat Removal and Installation (Manual)

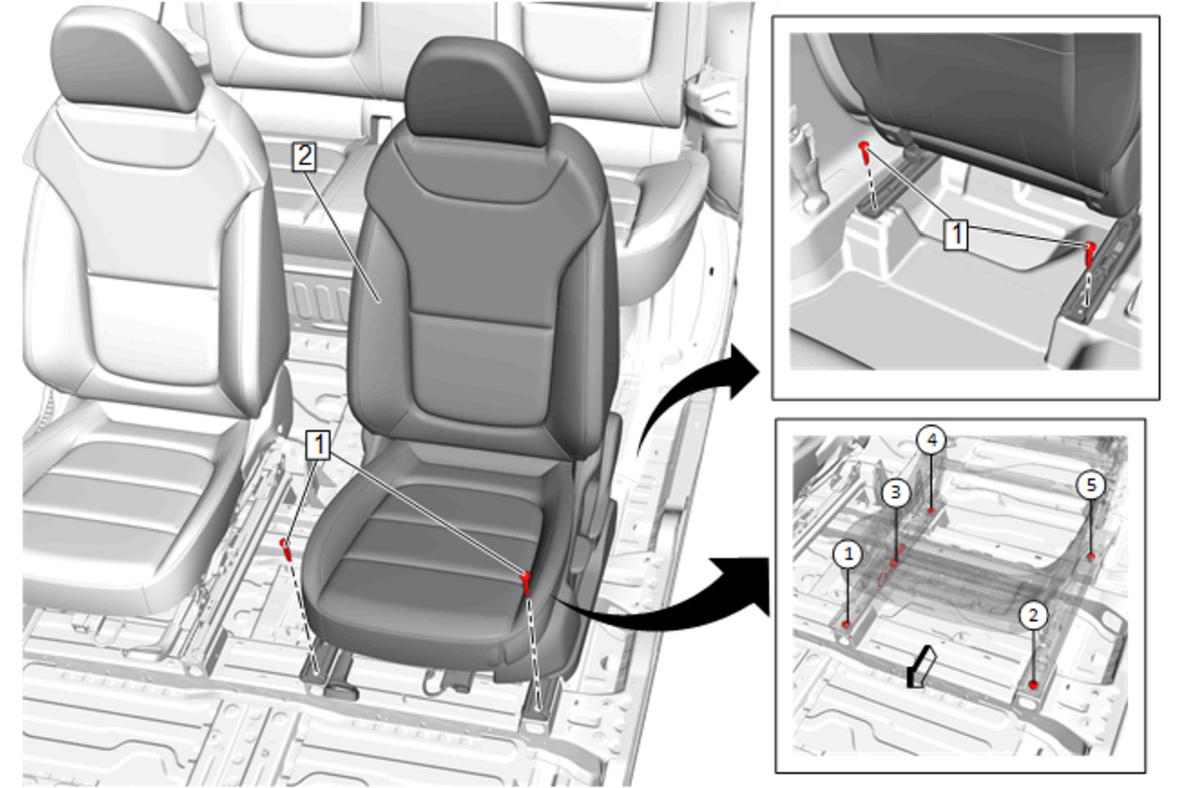

Fig 1: Front Seat Bolt Tightening Sequence (Manual)

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Disconnect the electrical connectors.
1	Front Seat Bolt [4x] CAUTION: Refer to Fastener Caution . Procedure Adjust the front seat forward or rearward to access the bolts. Tighten the front seat bolts and pull the interlock according to the sequence shown in the graphic. Tighten 45 N.m (33 lb ft)
2	Front Seat Procedure Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Preliminary Procedures

Front Seat Bolt [4x]

CAUTION:

Procedure

Adjust the front seat forward or rearward to access the bolts.
Tighten the front seat bolts and pull the interlock according to the sequence shown in the graphic.

Tighten
45 N.m (33 lb ft)

Front Seat
Procedure
Enable the SIR System. SIR Disabling and Enabling
