Rocker Panel Front Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

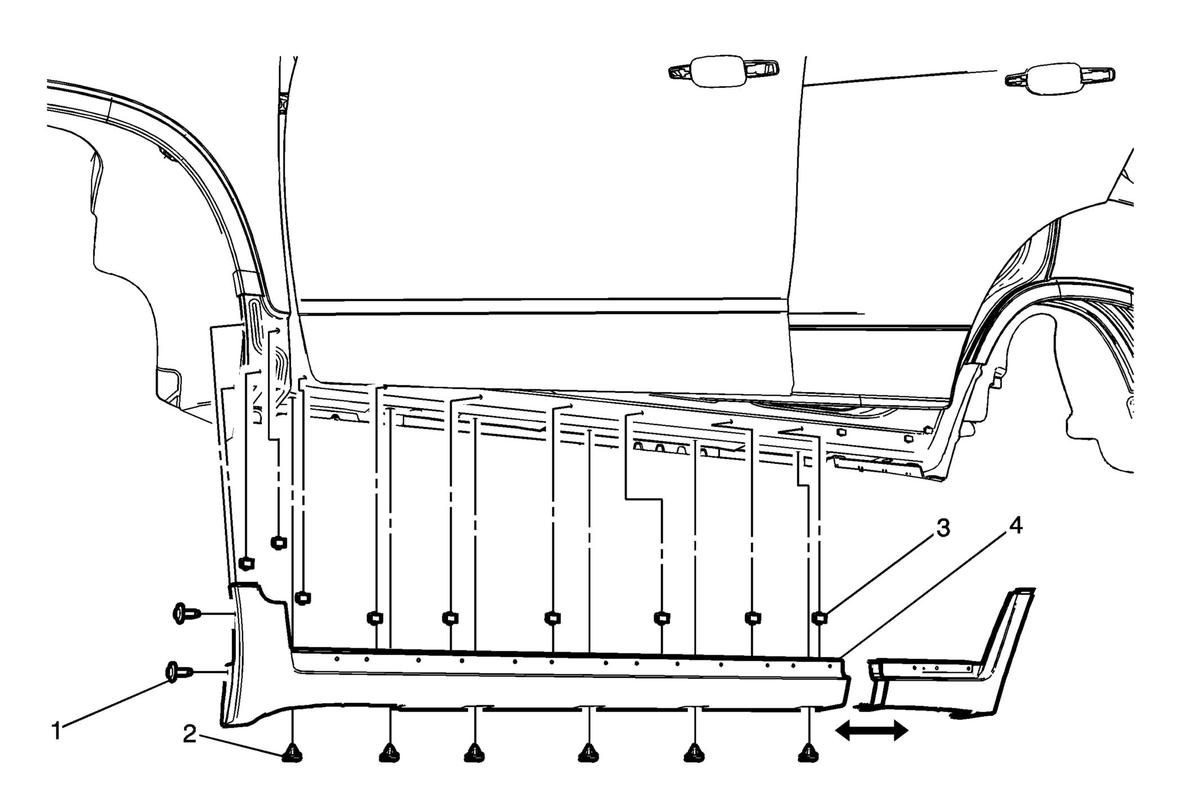

Callout	Component Name
Preliminary Procedures Open both side doors in order to remove the rocker panel front molding assembly. Remove the rear rocker panel molding assembly. Refer to Rocker Panel Rear Molding Replacement .
1	Rocker Panel Front Molding Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rocker Panel Molding Lower Retainer (Qty: 6)
3	Rocker Panel Molding Upper Retainer (Qty: 9)
4	Rocker Panel Front Molding Assembly Procedure Remove the two front rocker panel screws. Release the six lower rocker molding retainers. Release the eleven upper rocker molding retainers. NOTE: Replace the retainer clips as needed.
