Rocker Panel Rear Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

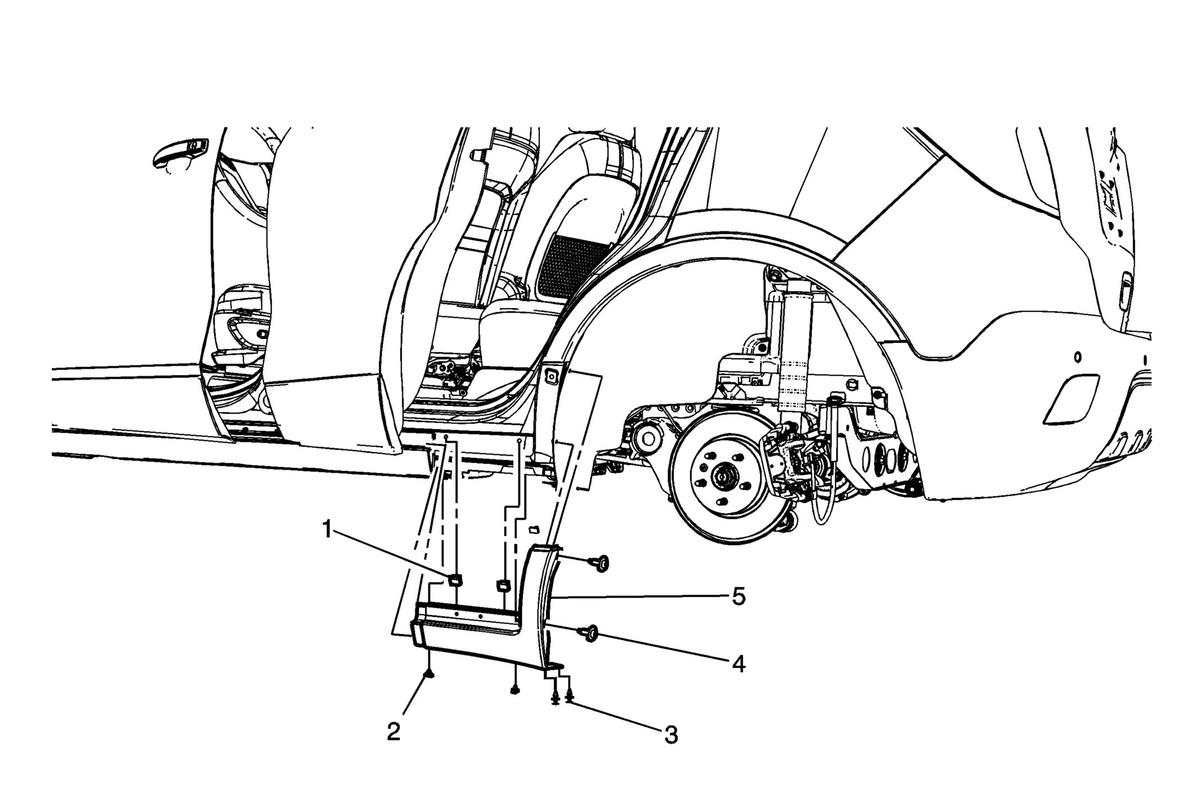

Callout	Component Name
Preliminary Procedure Open the rear side door.
1	Rocker Panel Rear Molding Upper Retainer (Qty 3)
2	Rocker Panel Rear Molding Lower Retainer (Qty 2)
3	Tire Deflector Push - Pin (Qty 2)
4	Rear Wheelhouse Liner Bolt (Qty 2) CAUTION: Refer to Fastener Caution .
5	Rocker Panel Rear Molding Procedure Remove the two rear wheelhouse liner bolts. Release the two tire deflector push - pin. Release the upper and lower rocker panel rear molding retainers. Pull the rocker panel rear molding rearward to release the molding from the rocker panel front molding retaining tabs and remove from the vehicle.
