Instrument Panel Lower Center Trim Panel Replacement (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Trim Panel - Right Side - Loosen - Instrument Panel Upper Trim Panel Replacement - Right Side (Chevrolet) Instrument Panel Knee Bolster - Loosen - Instrument Panel Knee Bolster Replacement (Chevrolet)

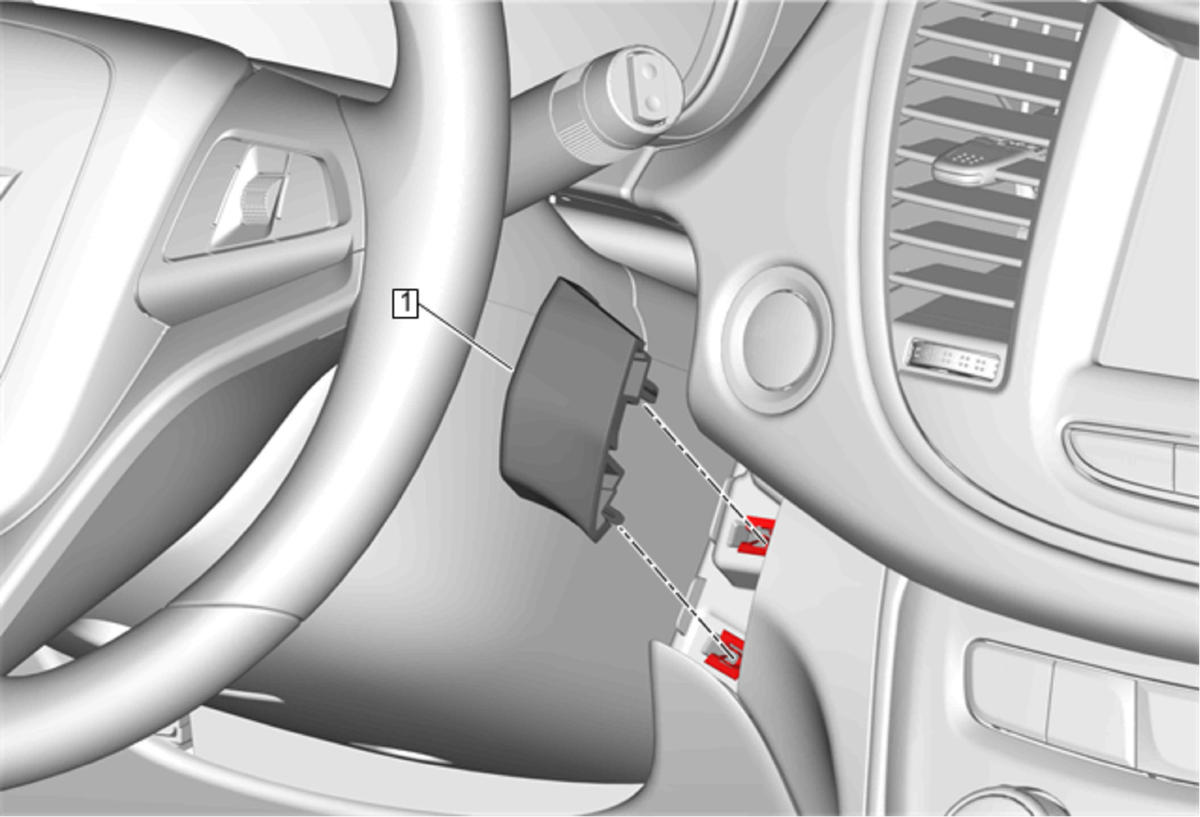

1	Instrument Panel Lower Center Trim Panel Procedure Use a flat bladed plastic trim tool.

Callout

Component Name

Preliminary Procedure

Instrument Panel Lower Center Trim Panel
Procedure
Use a flat bladed plastic trim tool.
