Roof Panel Rear Extension Replacement

Courtesy of GENERAL MOTORS COMPANY

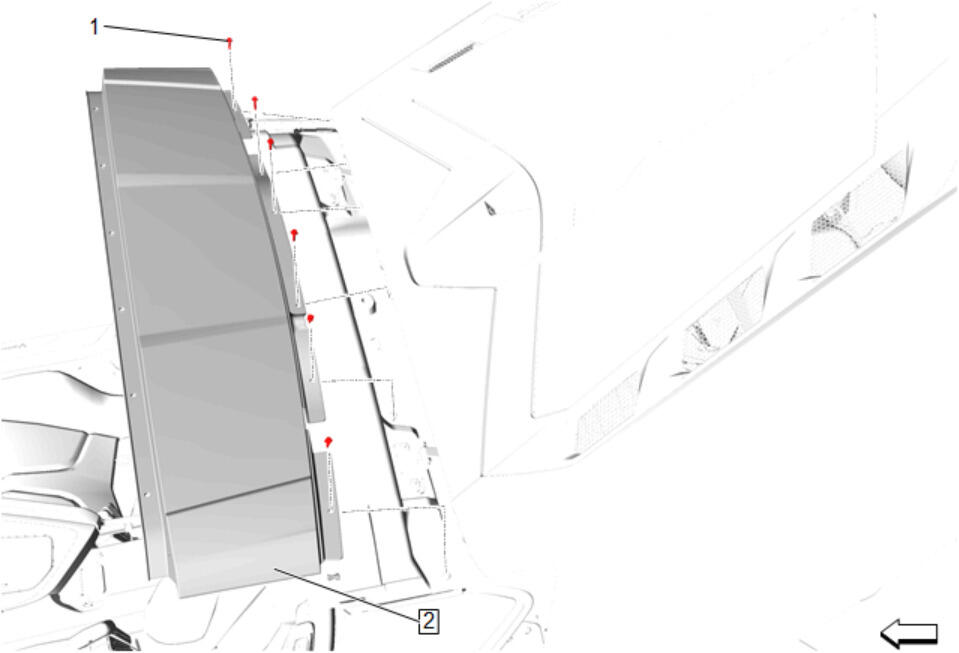

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Roof Lift Off Panel/Window Rear Weatherstrip Retainer Replacement
1	Roof Panel Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Roof Panel Rear Extension
