Roof Lift Off Panel/Window Rear Weatherstrip Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

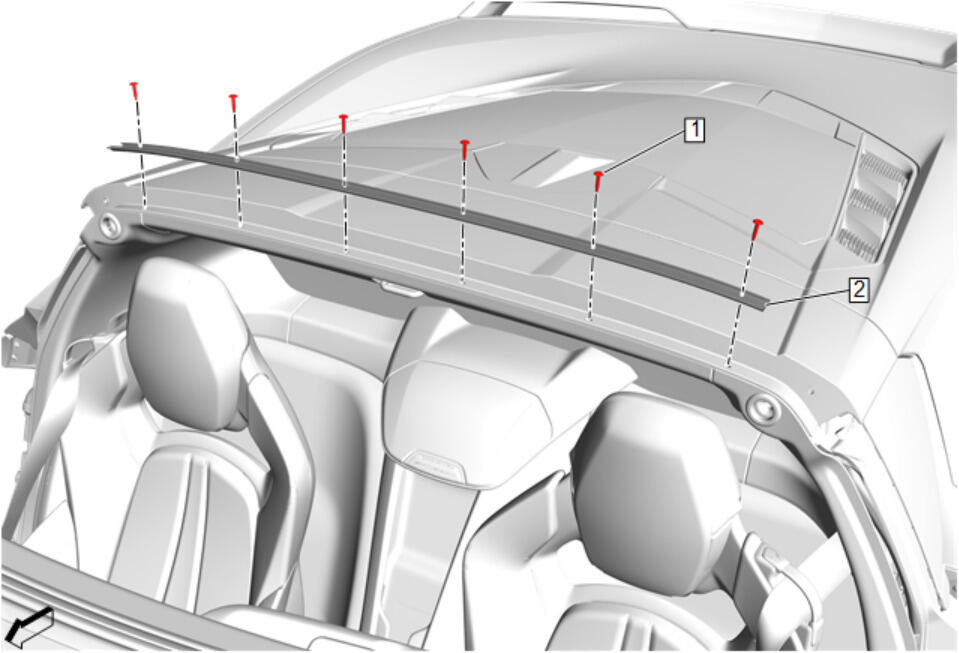

Callout	Component Name
Preliminary Procedure  Roof Lift Off Panel/Window Rear Weatherstrip Replacement
1	Roof Lift Off Panel/Window Rear Weatherstrip Retainer Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Roof Lift Off Panel/Window Rear Weatherstrip Retainer
