Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Remove the left and right body hinge pillar garnish molding (1). Body Hinge Pillar Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the left and right windshield garnish molding (2). Windshield Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the left and right instrument panel trim pad radio speaker opening cover (1). Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the left and right radio front speaker grille molding (2). Radio Front Speaker Grille Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

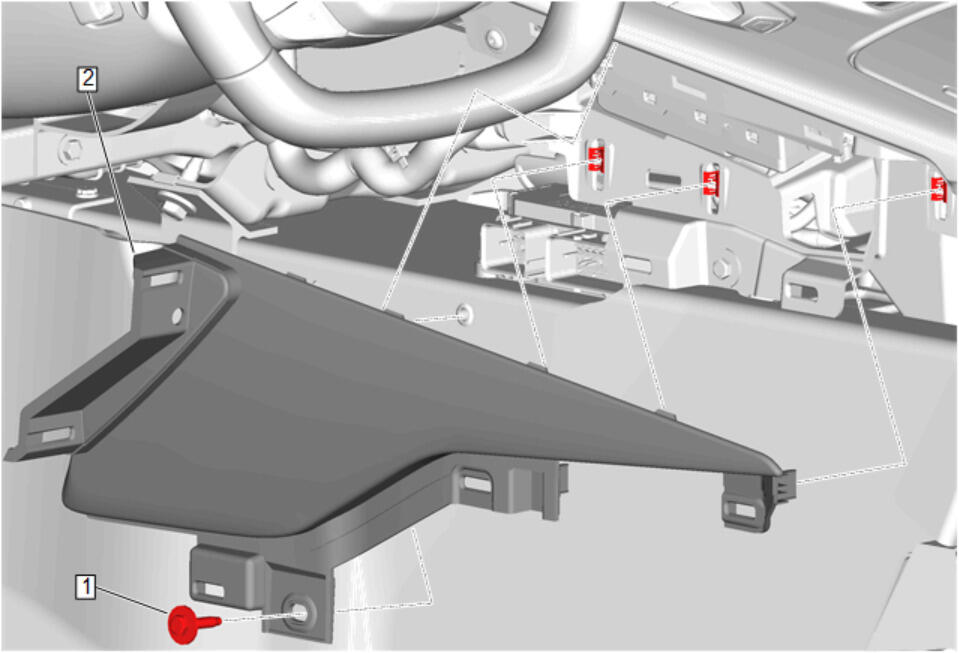

Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

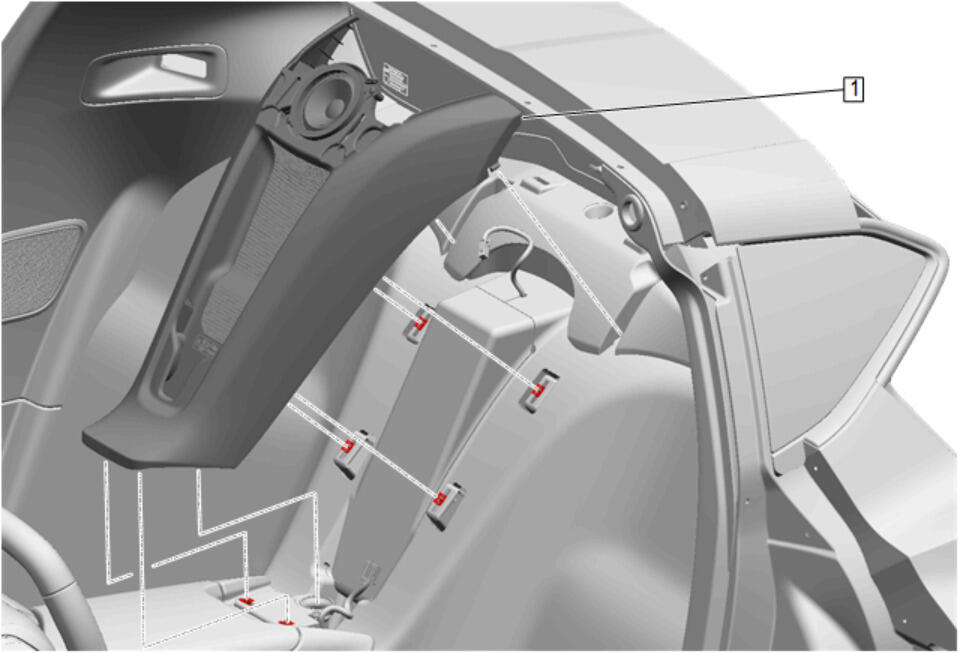

Radio Rear Quarter Trim Panel Speaker Grille (1) - Remove - Radio Rear Quarter Trim Panel Speaker Grille Replacement (Coupe) , or Radio Rear Quarter Trim Panel Speaker Grille Replacement (Convertible)
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Closeout Panel (1) - Remove - Rear Compartment Closeout Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel - Left Side (1) - Remove - Front Floor Rear Console Side Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel - Right Side (1) - Remove - Front Floor Rear Console Side Trim Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (2) - Remove - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel (2) - Remove - Front Floor Console Extension Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Compartment (1) - Remove - Front Floor Console Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment (1) - Remove - Instrument Panel Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

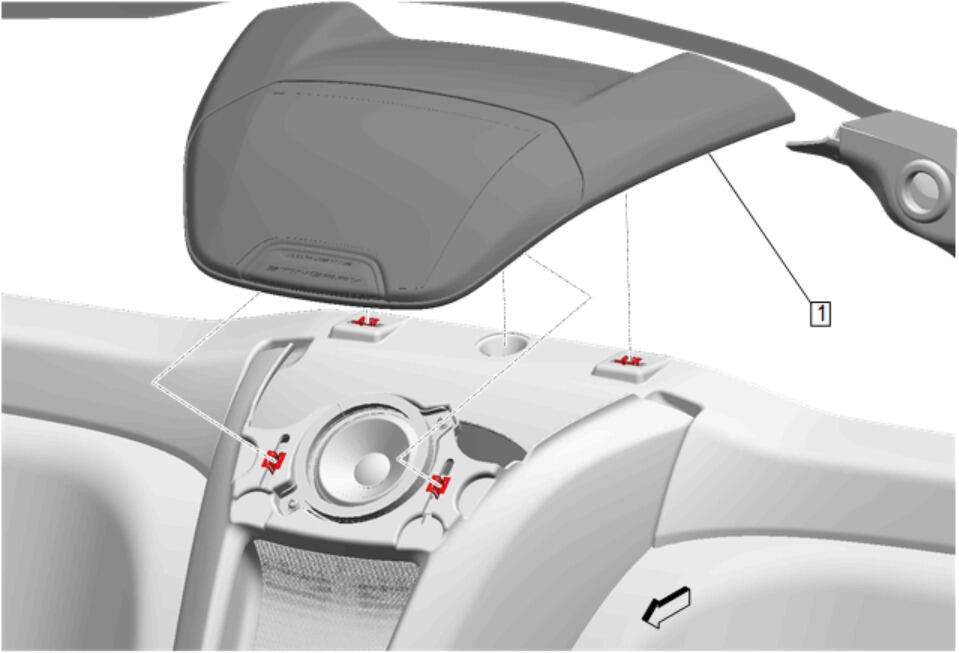

Radio Front Center Speaker Grille (1) - Remove - Radio Front Center Speaker Grille Replacement
Courtesy of GENERAL MOTORS COMPANY

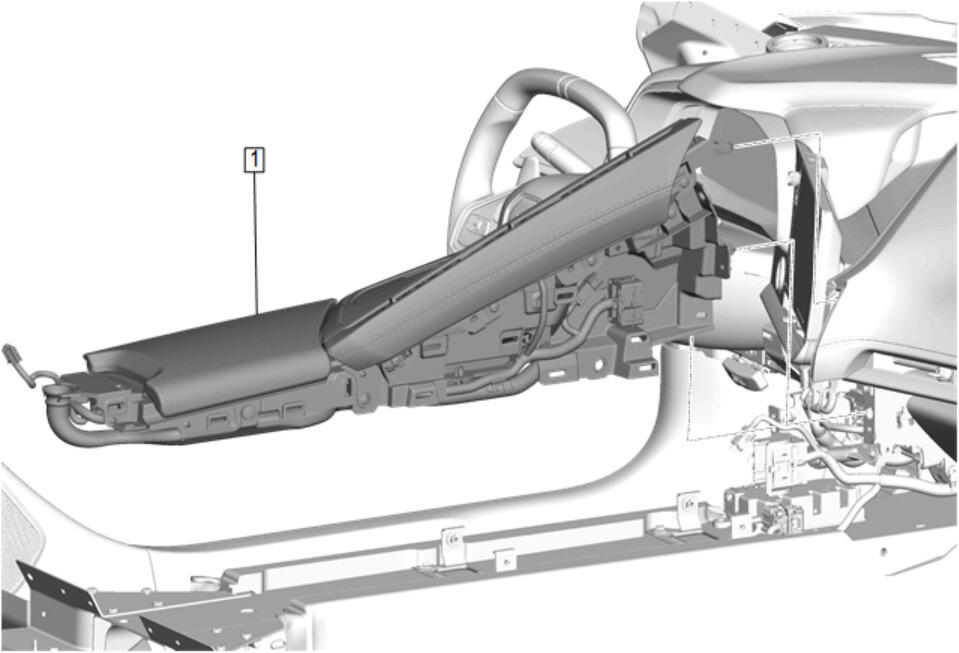

Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

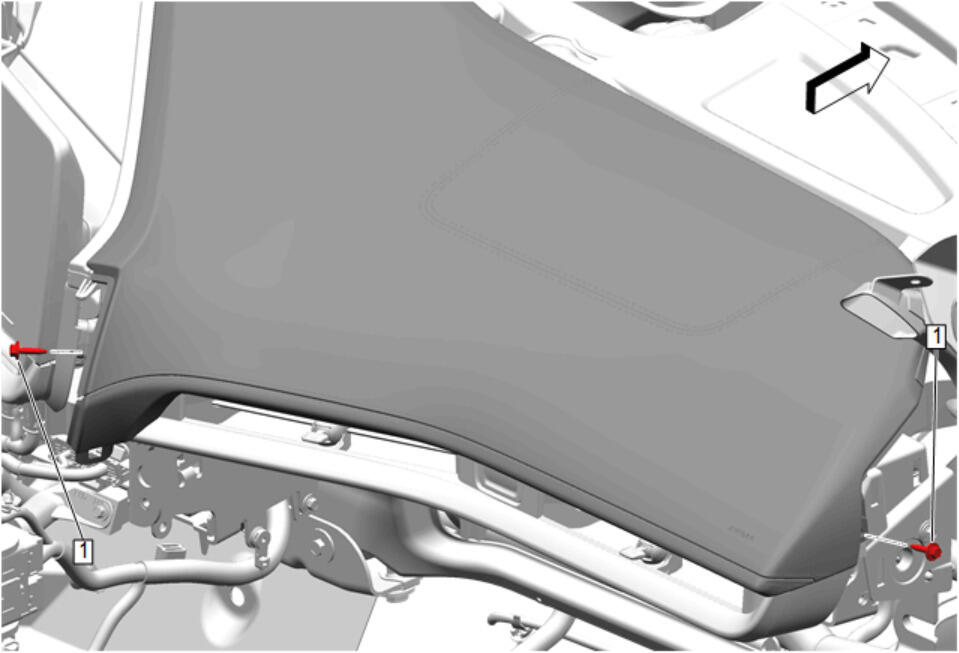

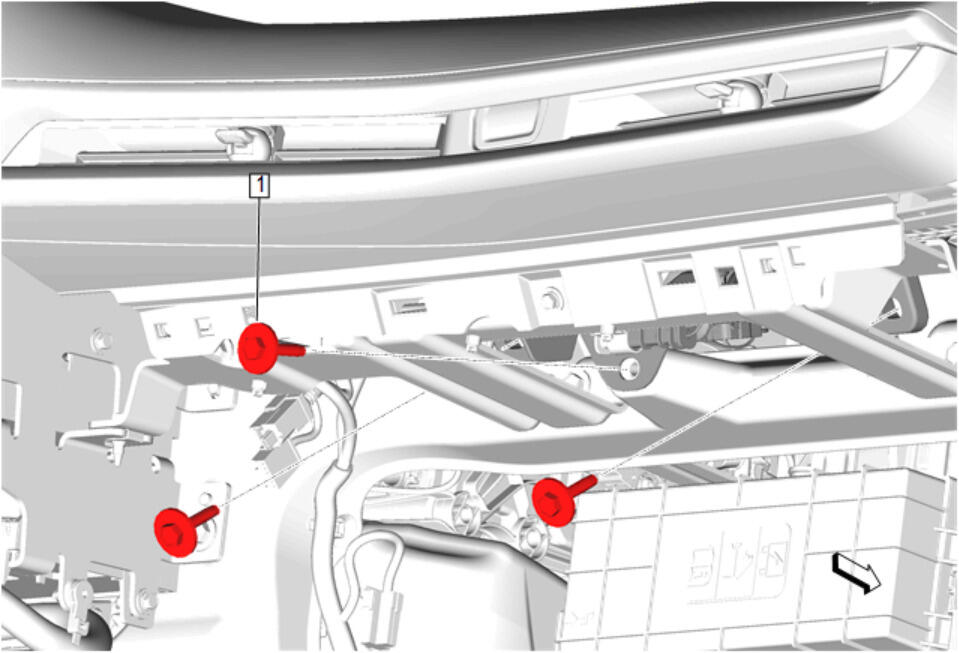

Instrument Panel Airbag Bolt (1) - Remove [3x]
Disconnect the instrument panel airbag electrical connector from the instrument panel harness.
Courtesy of GENERAL MOTORS COMPANY

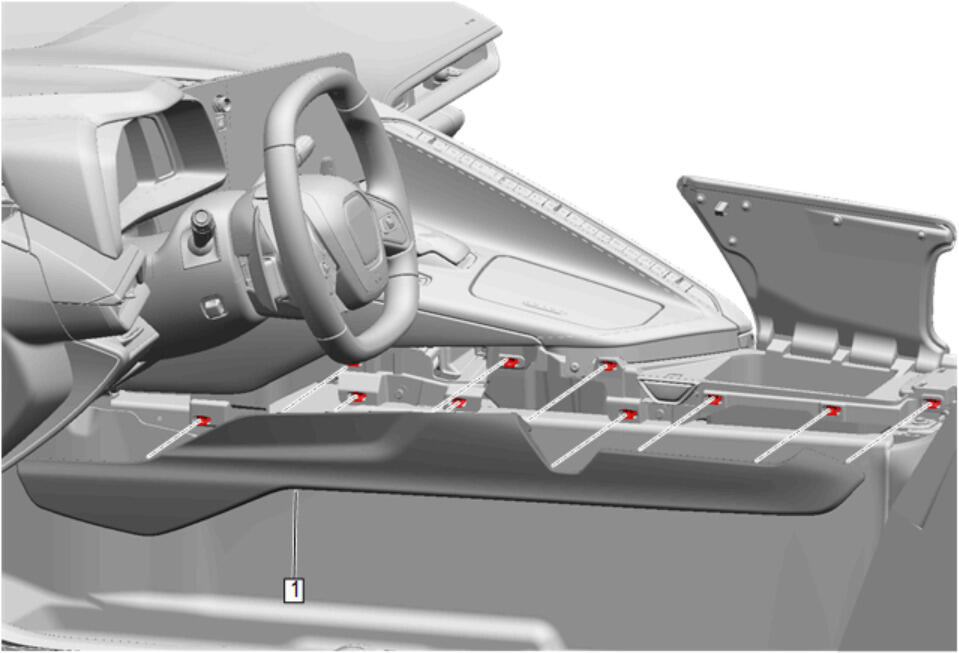

Instrument Panel Upper Trim Panel Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

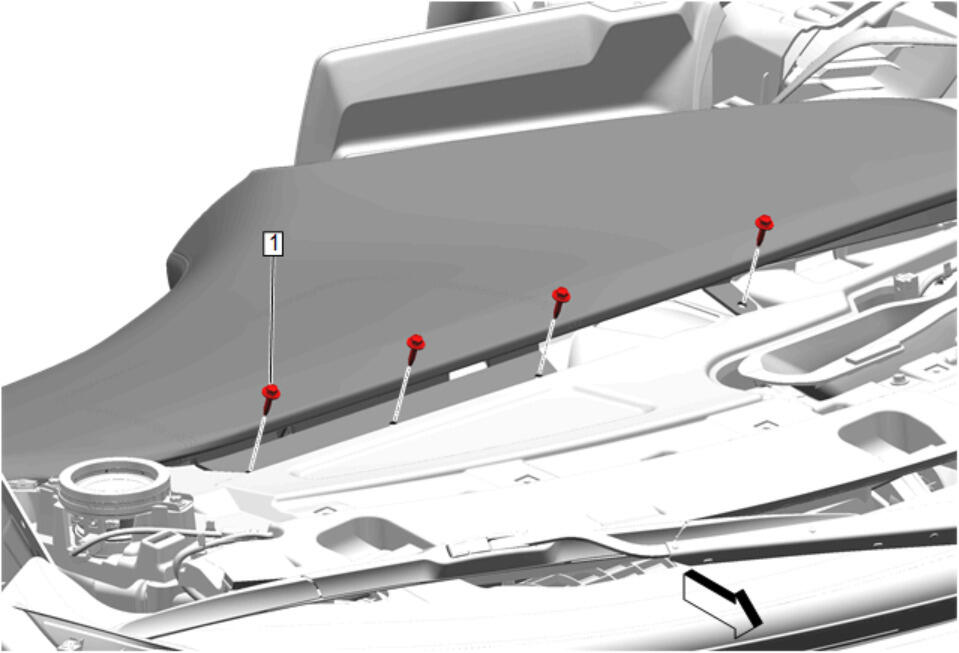

Instrument Panel Upper Trim Panel Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The instrument panel upper trim panel and instrument panel airbag will be removed as an assembly. Instrument panel airbag is a single use component. The airbag will need to be removed and scrapped.

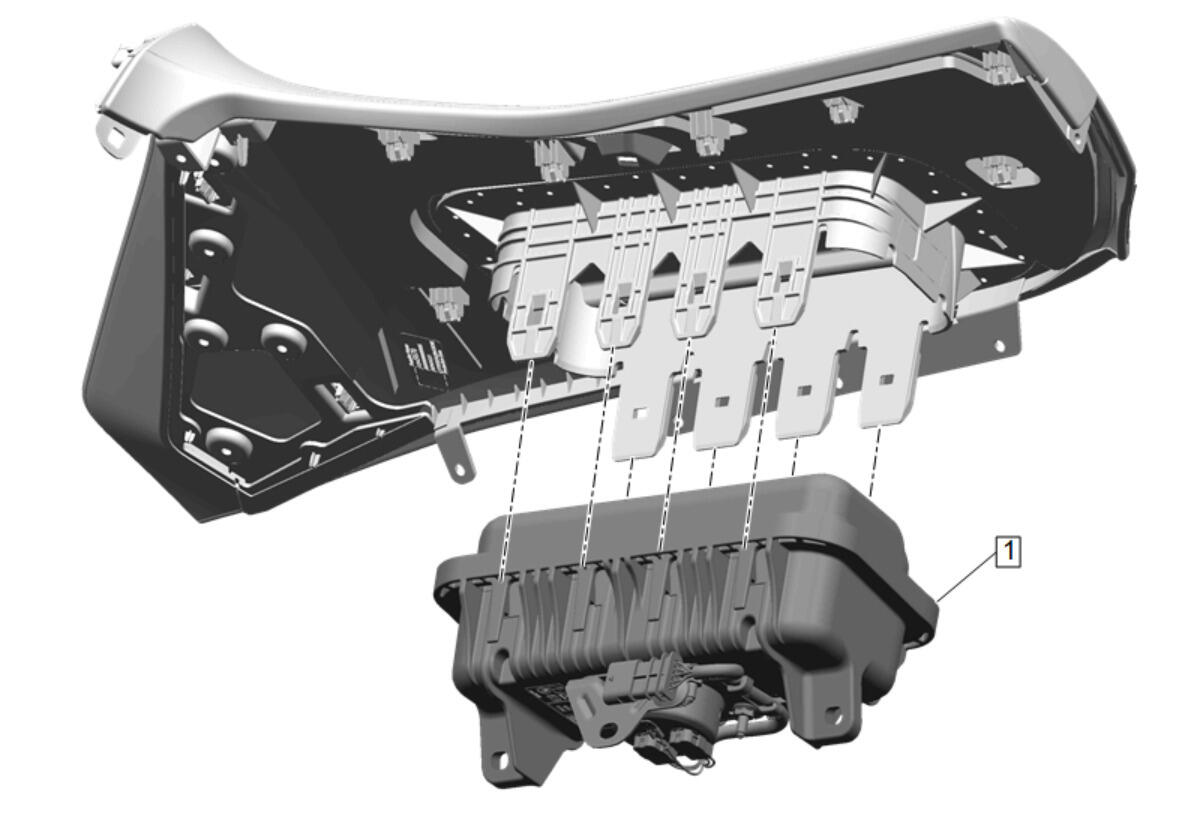

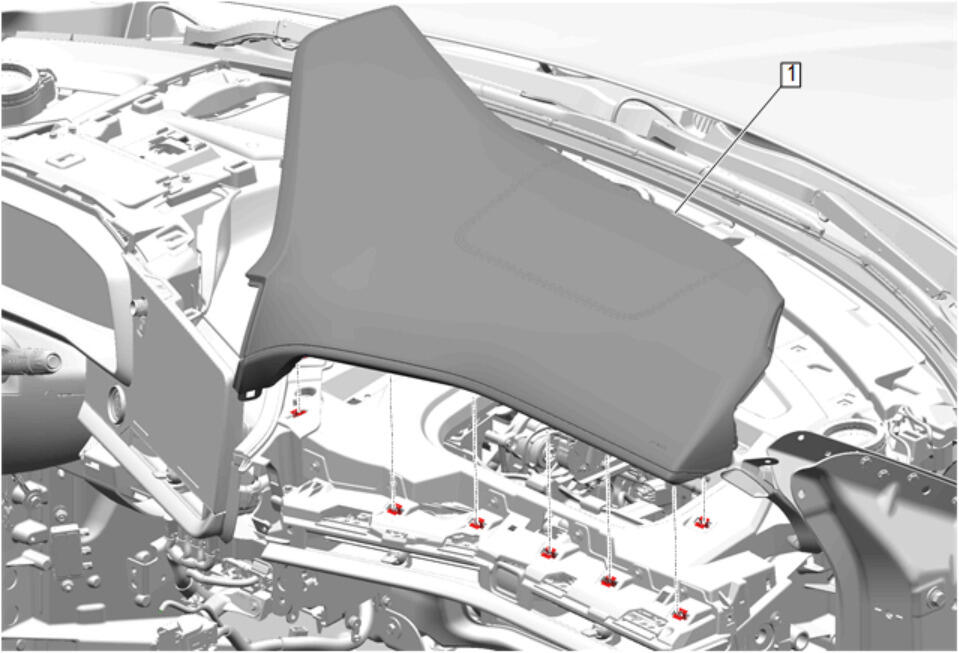

Instrument Panel Airbag (1) - Remove and DISCARD - Instrument Panel Airbag Replacement
