Removal Procedure
Remove the left front side door (2) only. Front Side Door Replacement

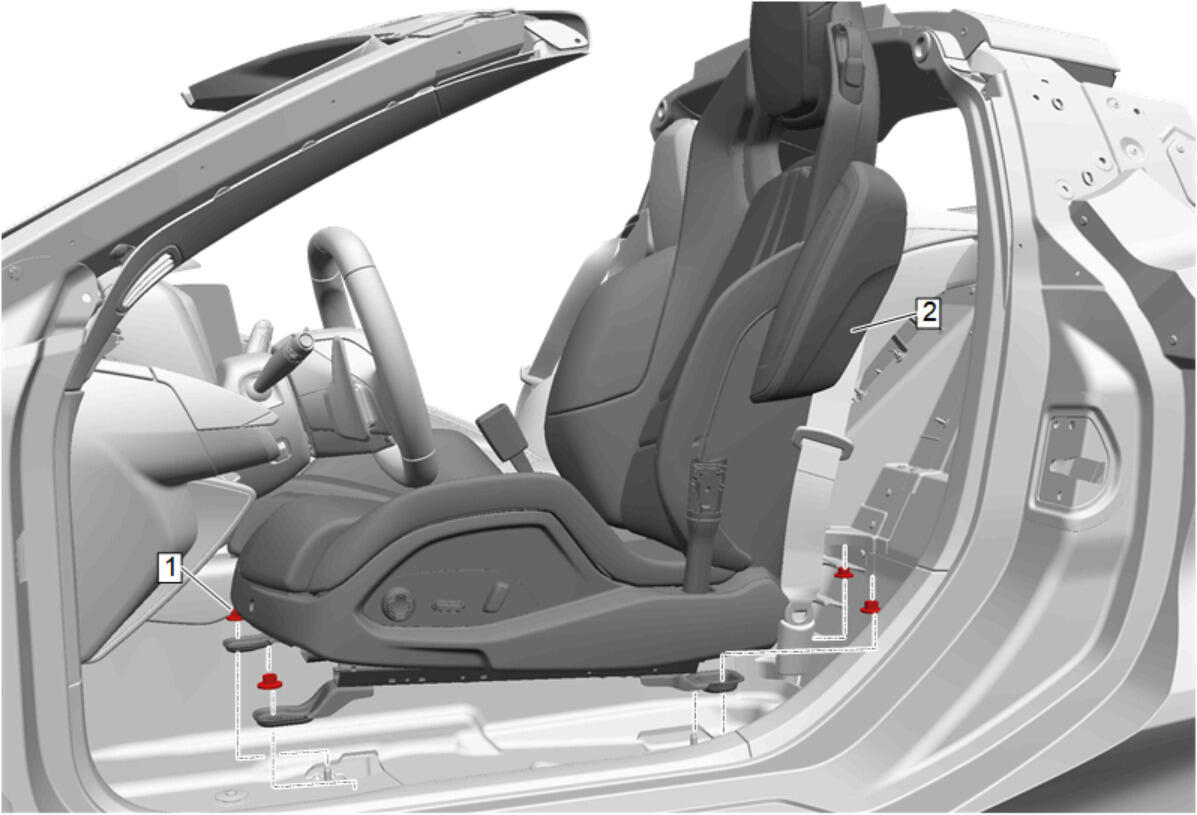

Remove the left and right front seats (2). Front Seat Removal and Installation
Front Compartment Rear Access Cover (2) - Remove - Front Compartment Rear Access Cover Replacement
- Recover the refrigerant. Refrigerant Recovery and Recharging
- Drain the cooling system. Cooling System Draining and Filling (Static)

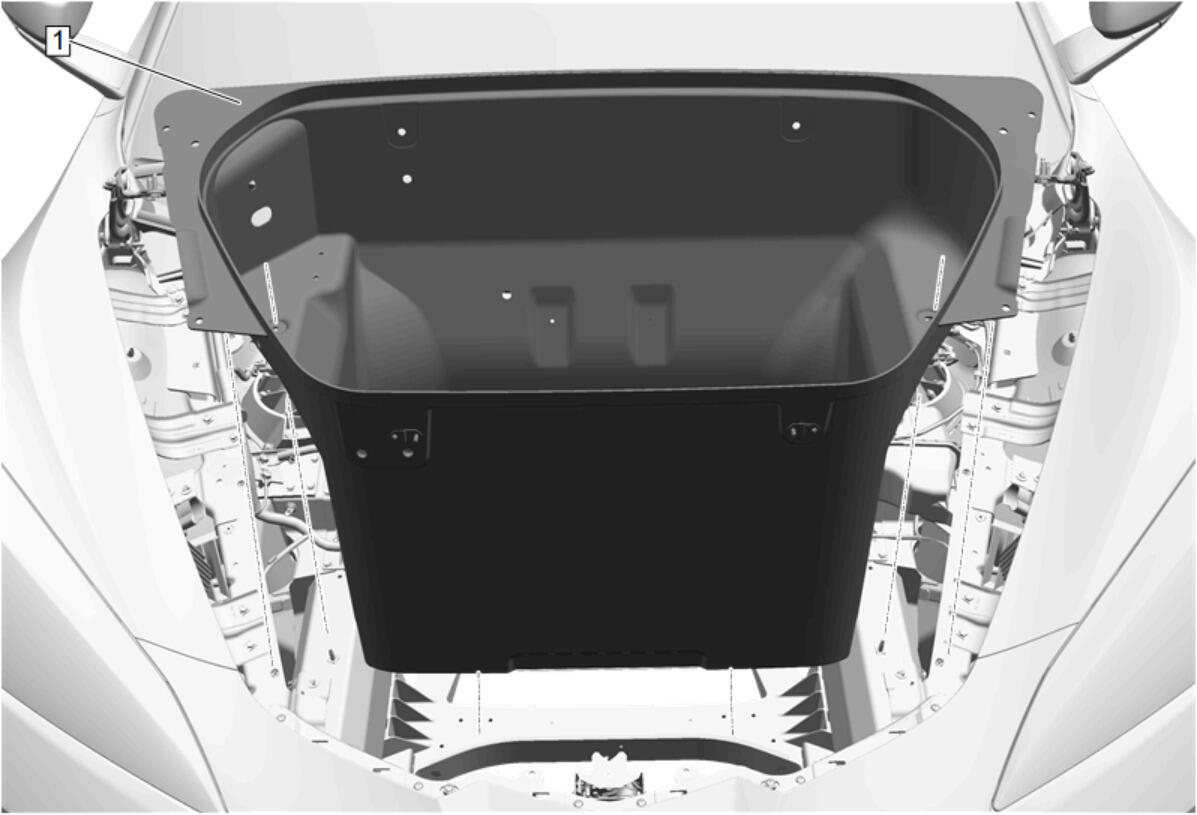

Front Compartment Front Panel (1) - Remove - Front Compartment Front Panel Replacement
- Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
Battery (1) - Remove - Battery Replacement
Battery Tray (1) - Remove - Battery Tray Replacement

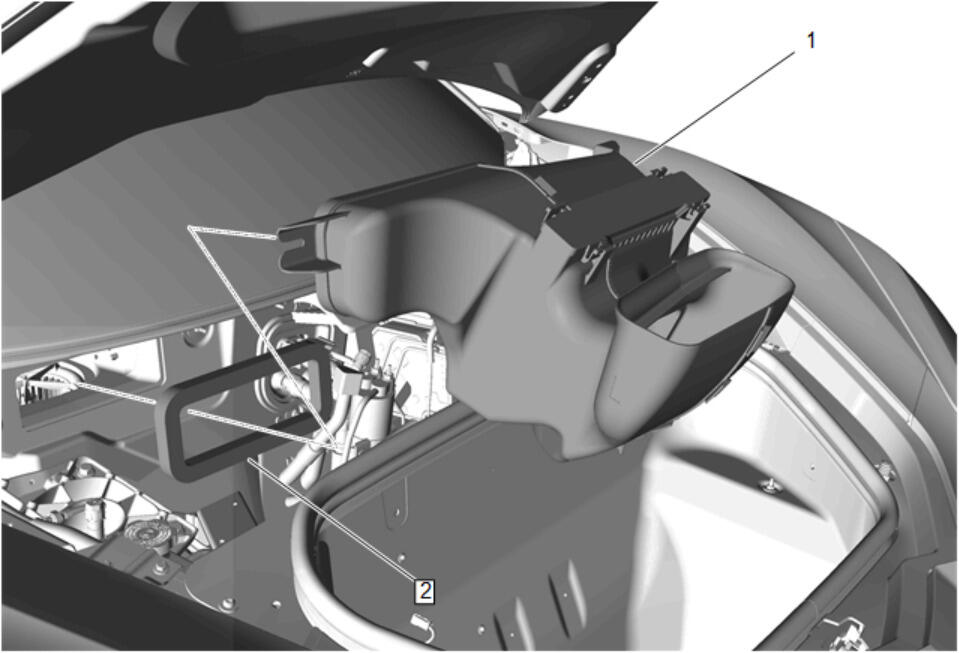

Air Inlet Housing Front Panel (1) - Remove - Air Inlet Housing Front Panel Replacement
Air Conditioning Condenser and Evaporator Hose Fitting Nut (1) - Remove

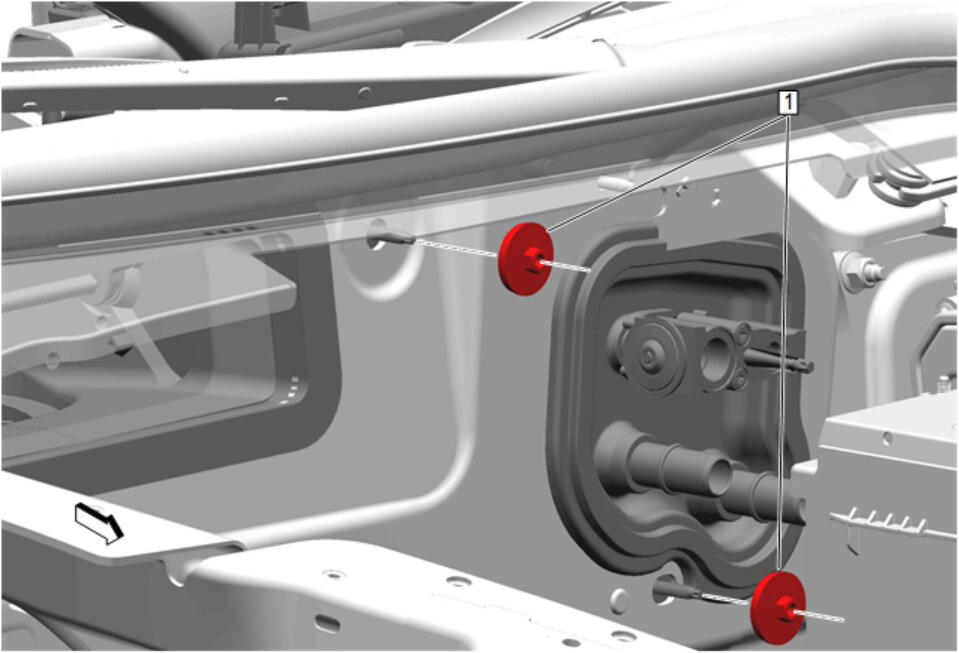

- Air Conditioning Evaporator Thermal Expansion Valve Stud (2) - Remove

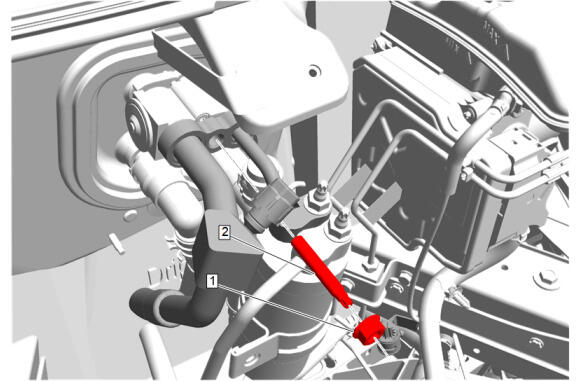

- Radiator Inlet Hose @ Heater Core Inlet Tube - Remove - Radiator Inlet Hose Replacement - Radiator Inlet Pipe to A/C Tube
- Heater Outlet Hose @ Heater Core Outlet Tube - Remove - Heater Outlet Hose Replacement
Heater and Blower Module Nut (1) - Remove [2x]
Remove the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement
Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement
Radio Rear Quarter Trim Panel Speaker Grille (1) - Remove - Radio Rear Quarter Trim Panel Speaker Grille Replacement (Coupe) , or Radio Rear Quarter Trim Panel Speaker Grille Replacement (Convertible)
Rear Compartment Closeout Panel (1) - Remove - Rear Compartment Closeout Panel Replacement
Front Floor Console Applique - Left Side (2) - Remove - Front Floor Console Applique Replacement - Left Side
Front Floor Console Extension Panel (2) - Remove - Front Floor Console Extension Panel Replacement
Front Floor Console Compartment (1) - Remove - Front Floor Console Compartment Replacement
Instrument Panel Compartment (1) - Remove - Instrument Panel Compartment Replacement
Radio Front Center Speaker Grille (1) - Remove - Radio Front Center Speaker Grille Replacement
Instrument Panel Instrument Cluster Hood (1) - Remove - Instrument Panel Instrument Cluster Hood Replacement
Instrument Panel Extension (1) - Remove - Instrument Panel Extension Replacement
Instrument Panel Upper Trim Panel (1) - Remove - Instrument Panel Upper Trim Panel Replacement
Instrument Panel Trim Pad (2) - Remove - Instrument Panel Trim Pad Replacement
Instrument Panel Air Outlet Bezel-Right Side (2) - Remove - Instrument Panel Air Outlet Bezel Replacement - Right Side
Instrument Panel Cluster Trim Plate (1) - Remove - Instrument Panel Cluster Trim Plate Replacement
Instrument Panel Air Outlet Bezel-Left Side (2) - Remove - Instrument Panel Air Outlet Bezel Replacement - Left Side
Radio Control (1) - Remove - Radio Control Replacement
Instrument Cluster (2) - Remove - Instrument Cluster Replacement
Instrument Panel Upper Trim Panel Cover (1) - Remove - Instrument Panel Upper Trim Panel Cover Replacement
Body Control Module (1) - Remove - Body Control Module Replacement
Steering Column (1) - Remove - Steering Column Replacement
Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement
- With the aid of an assistant, remove the instrument panel carrier assembly from the vehicle. (1)

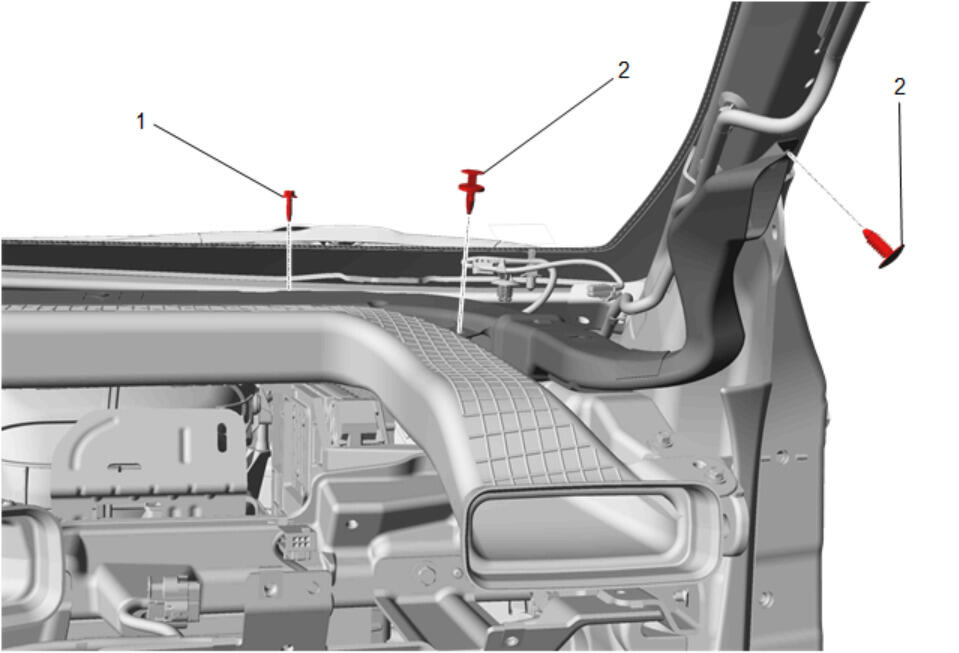

Side Window Defogger Outlet Duct Bolt (1) - Remove
- Side Window Defogger Outlet Duct Retainer (2) - Remove [2x]

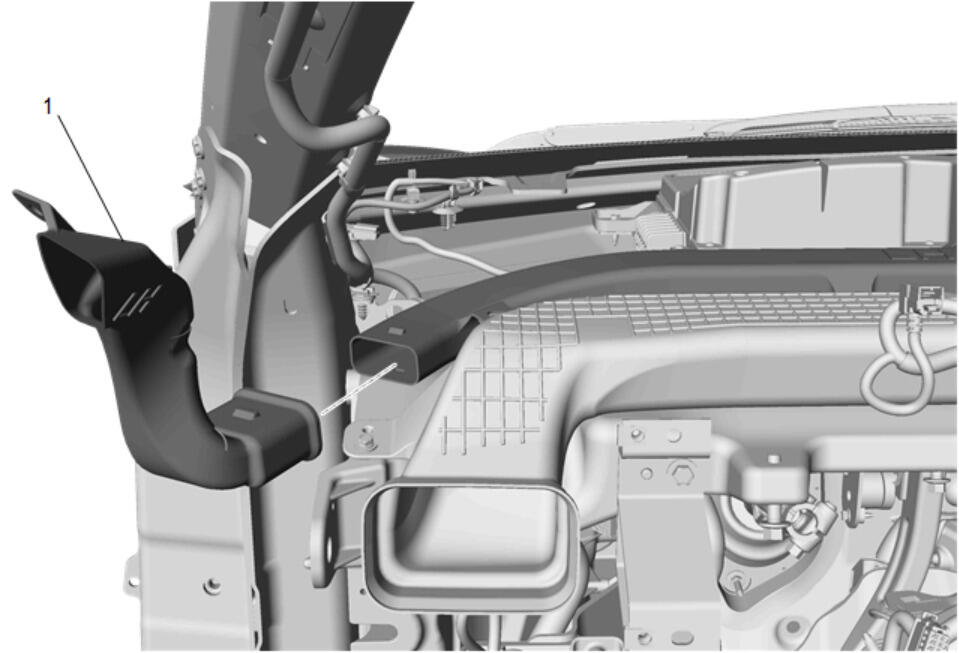

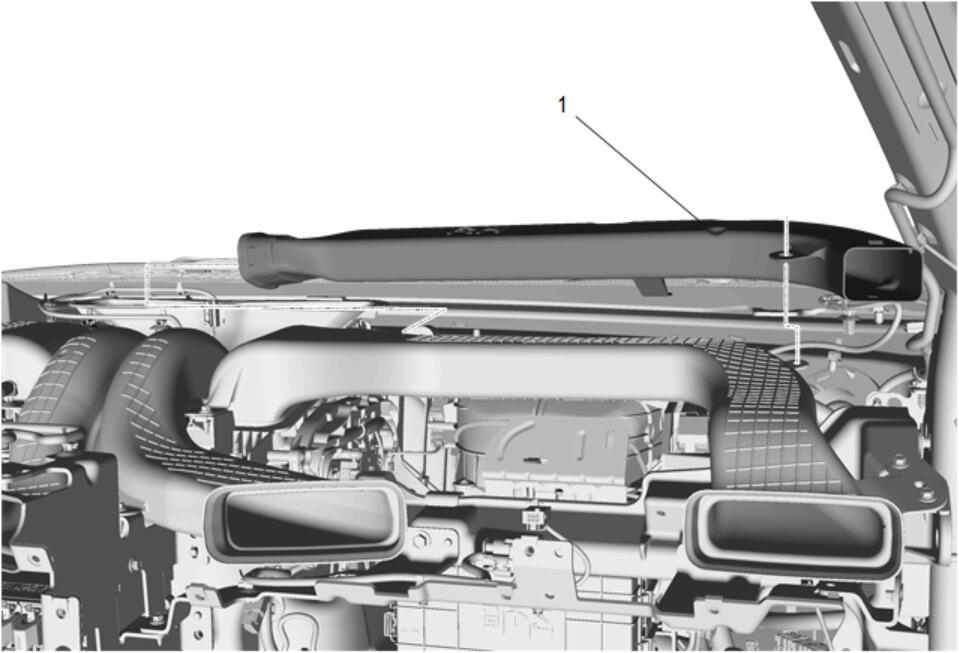

Side Window Defogger Outlet Outer Duct - Right Side (1) - Remove

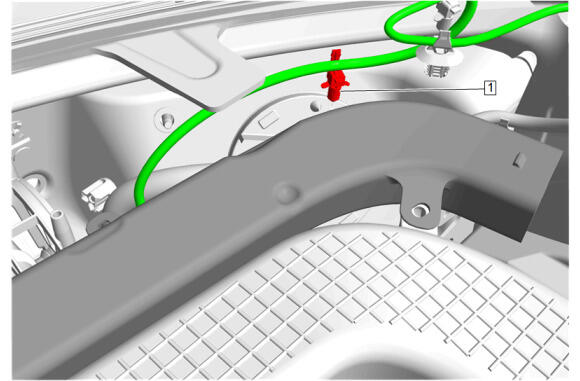

Instrument Panel Wiring Harness Retainer (1) @ Side Window Defogger Outlet Outer Duct - Right Side - Remove
Side Window Defogger Outlet Outer Duct - Right Side (1) - Remove

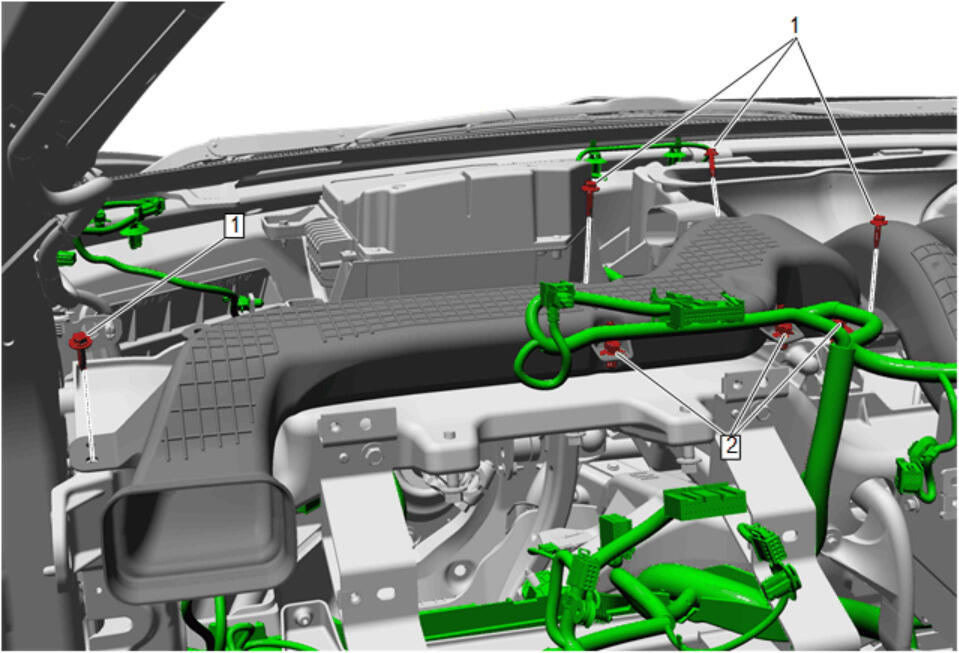

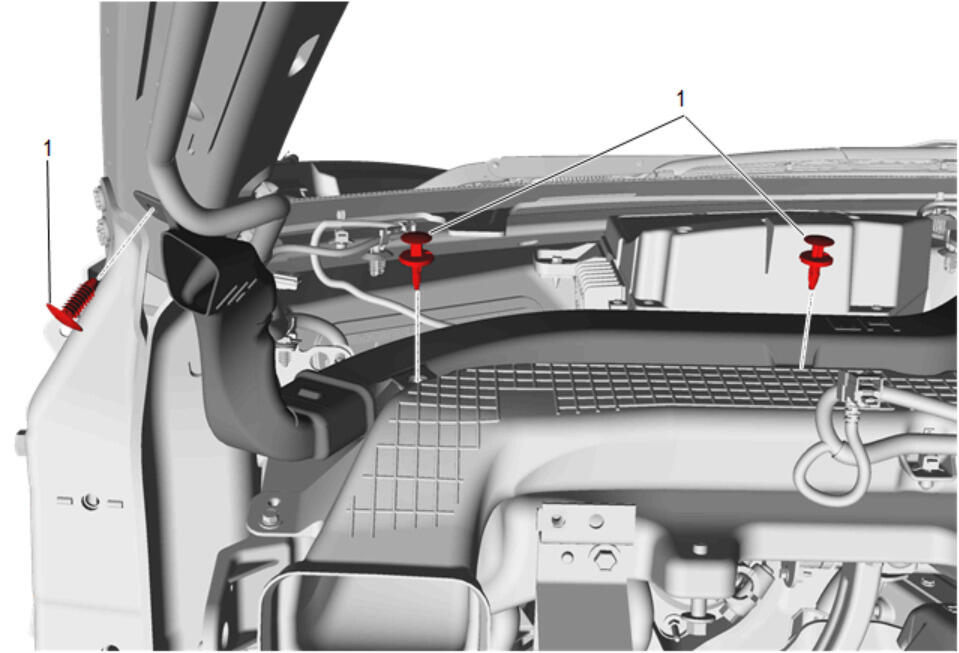

Instrument Panel Outer Air Outlet Duct Bolt (1) - Remove [5x]
Side Window Defogger Outlet Duct Retainer (1) - Remove [3x]

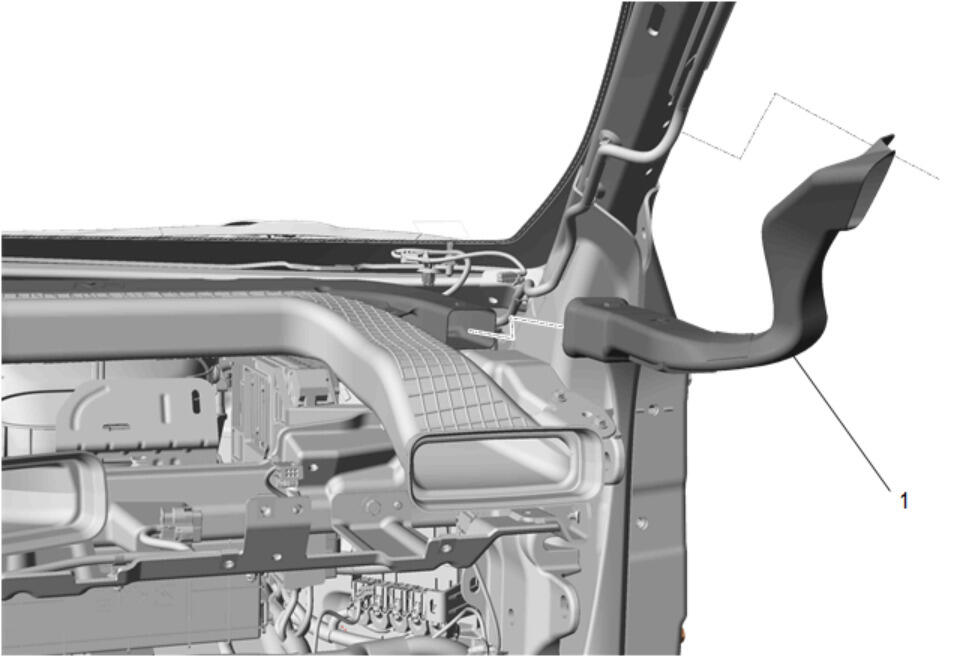

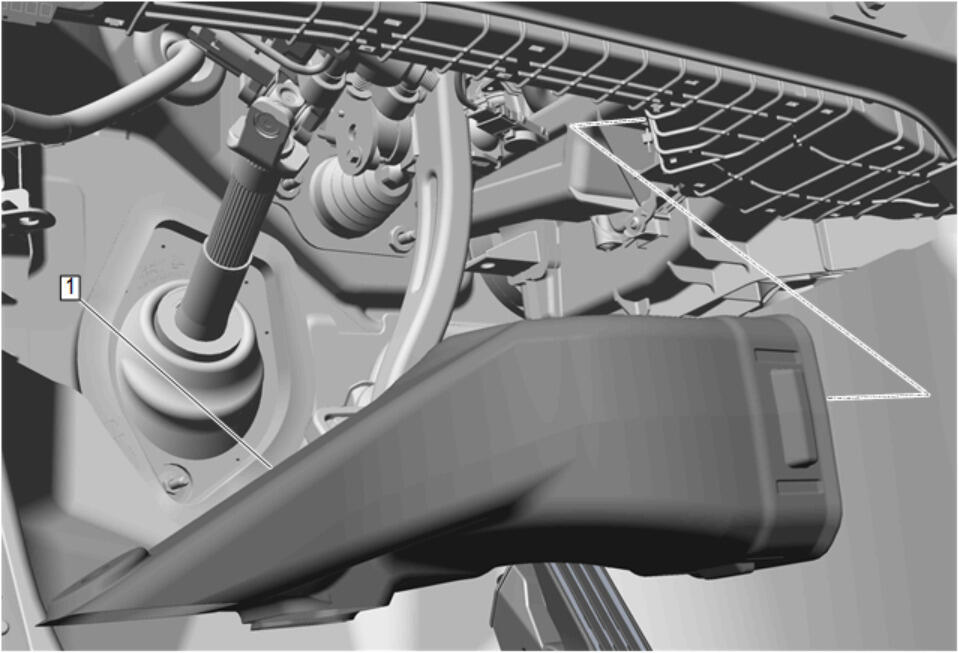

Side Window Defogger Outlet Duct - Left Side (1) - Remove
Side Window Defogger Outlet Duct - Left Side (1) - Remove

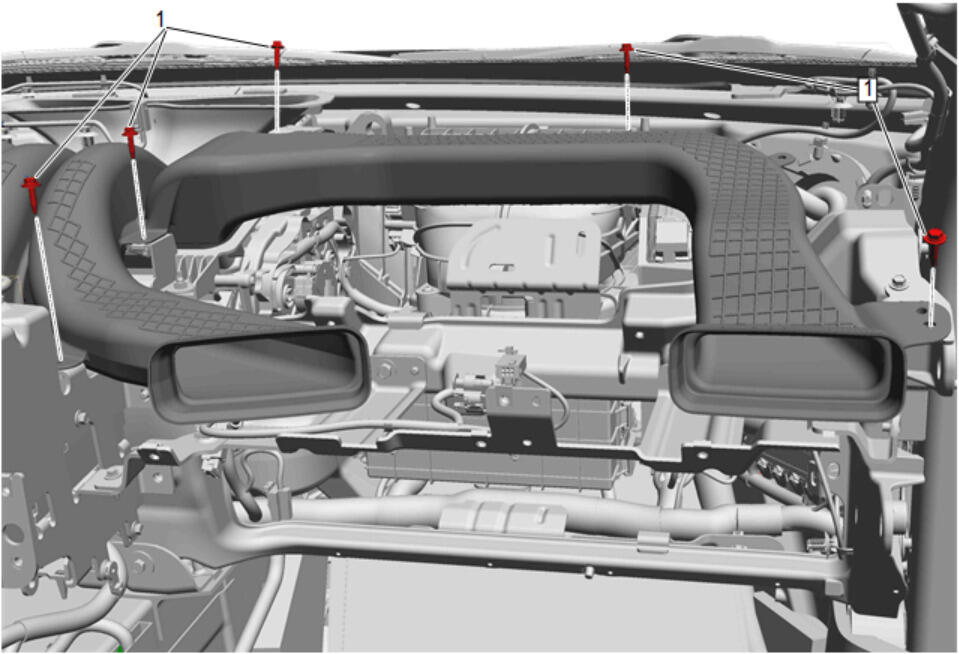

Instrument Panel Outer Air Outlet Duct Bolt (1) - Remove [4x]
- Wiring Harness Retainer (2) @ Instrument Panel Outer Air Outlet Duct - Remove [3x]

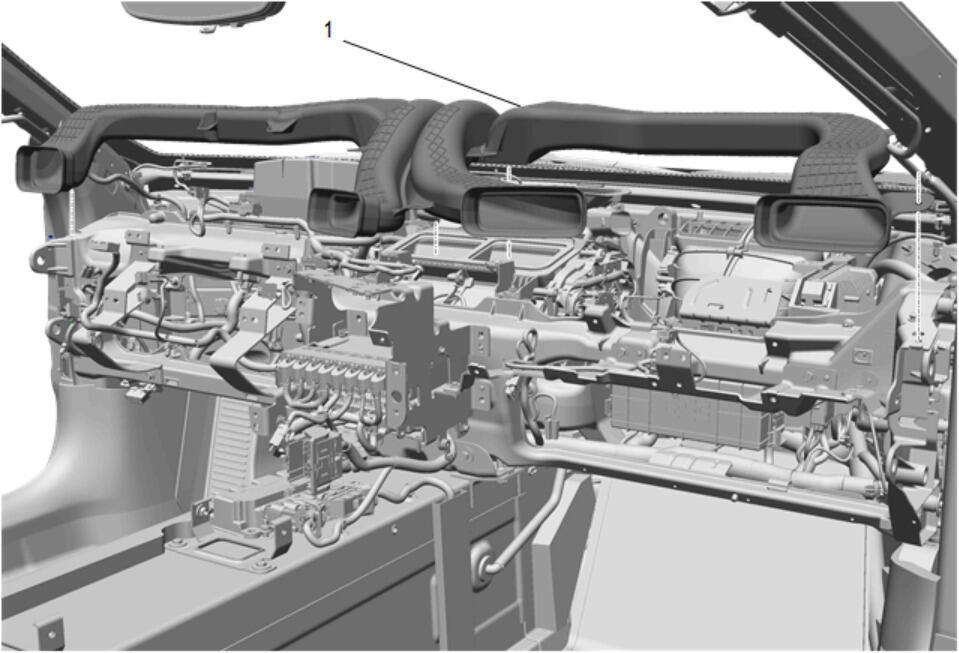

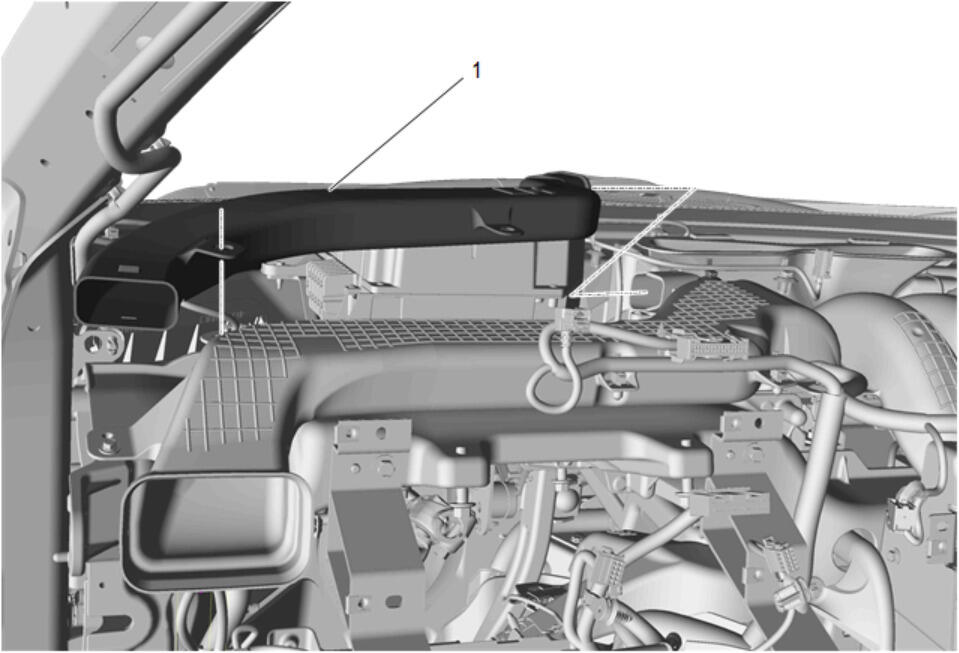

Instrument Panel Outer Air Outlet Duct (1) - Remove
Head-Up Display (2) - Remove - Head-Up Display Replacement
Floor Front Air Outlet Duct - Left Side (1) - Remove - Floor Front Air Outlet Duct Replacement - Left Side

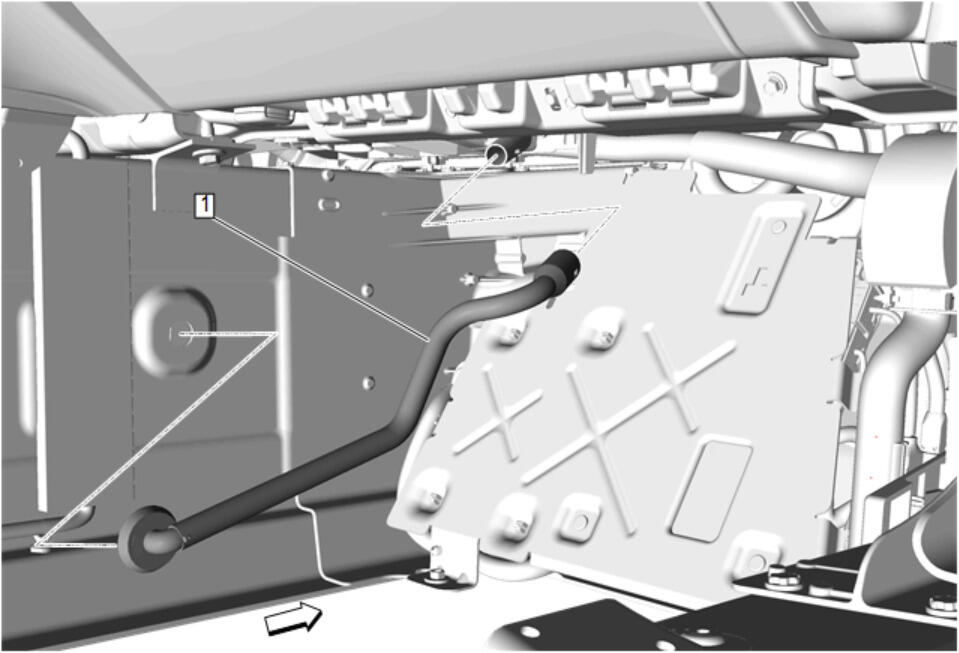

Air Conditioning Evaporator Case Drain Tube (1) - Remove - Air Conditioning Evaporator Case Drain Tube Replacement

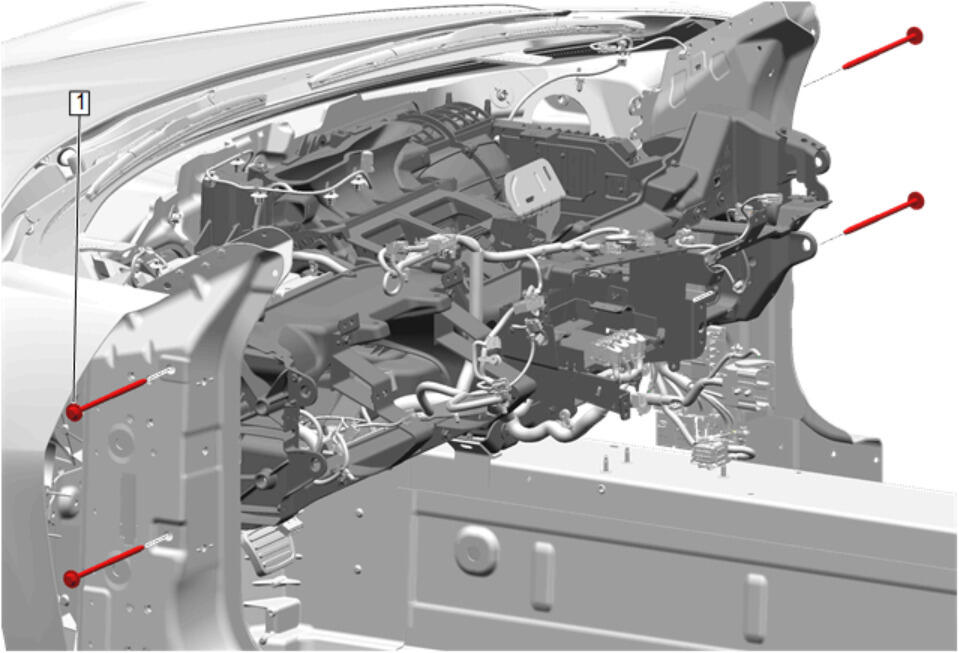

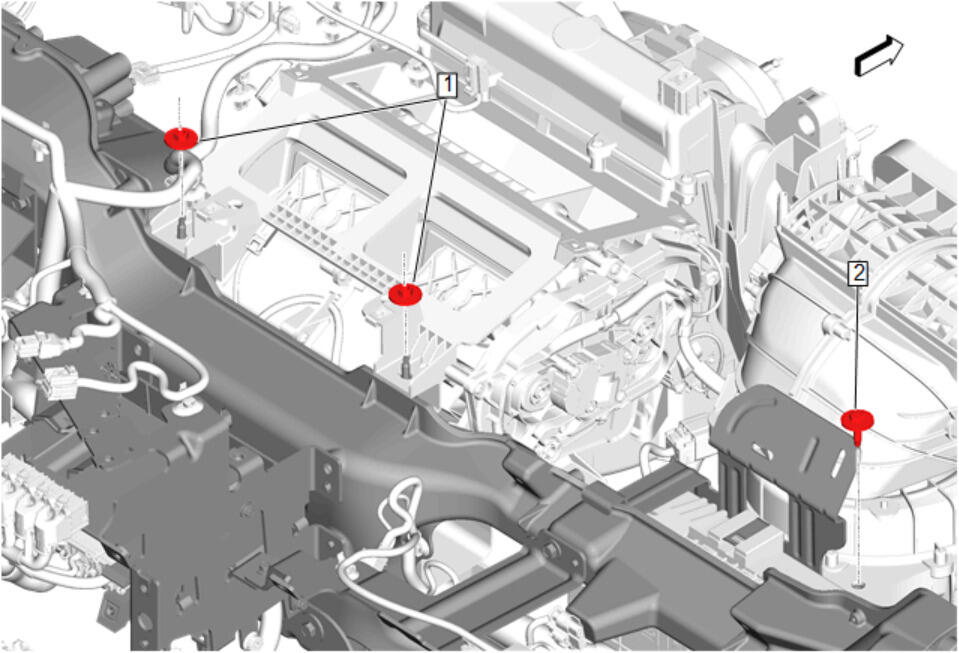

Brake and Accelerator and Clutch Pedal Bracket Bolt (1) - Remove [3x]

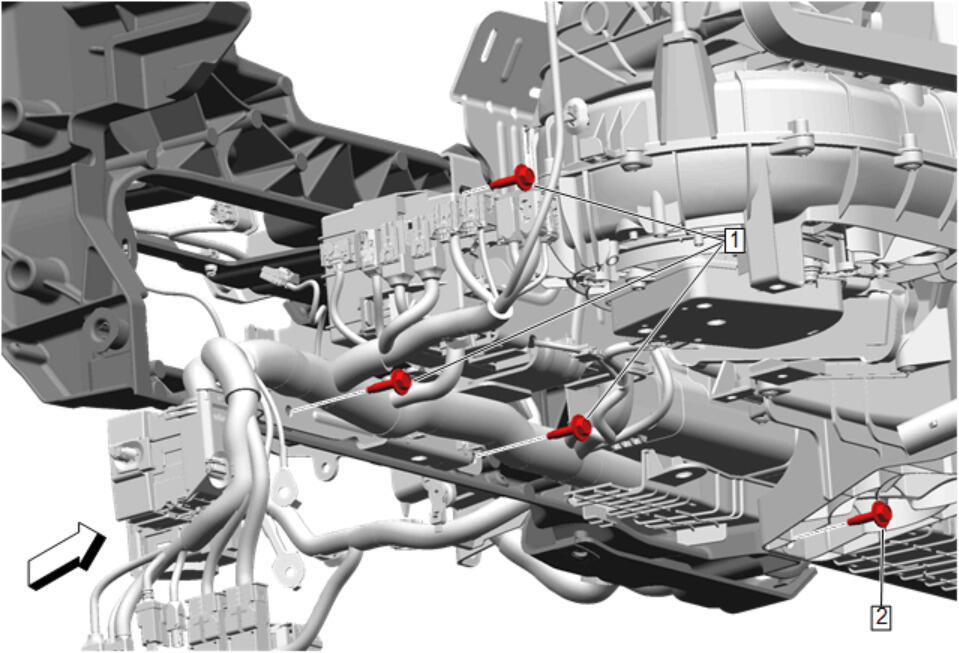

Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Remove

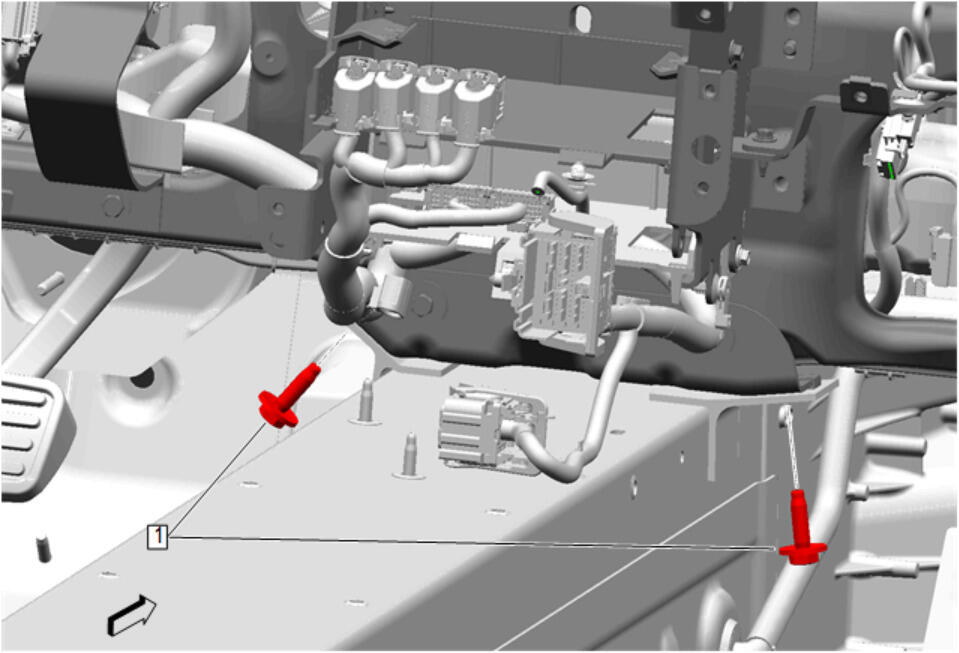

Instrument Panel Center Lower Bracket Bolt (1) - Remove [2x]
- NOTE:
When removing the right side instrument panel tie bar bolts, slide bolts out far enough to clear the tie bar, and leave the bolts in the cavity. The bolts do not have to be removed from the vehicle.

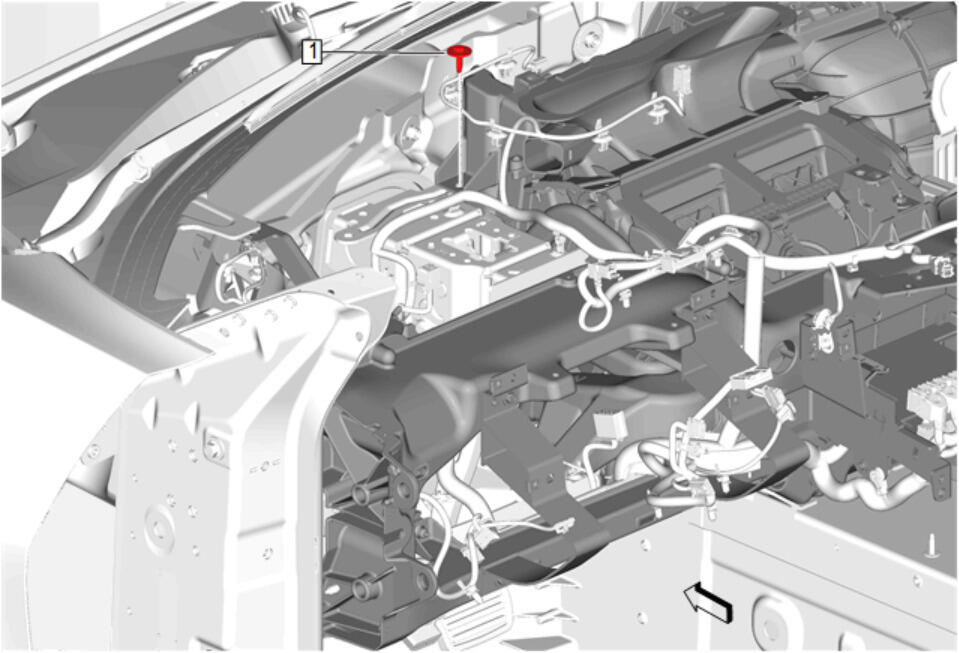

Instrument Panel Tie Bar Bolt (1) - Remove [4x]

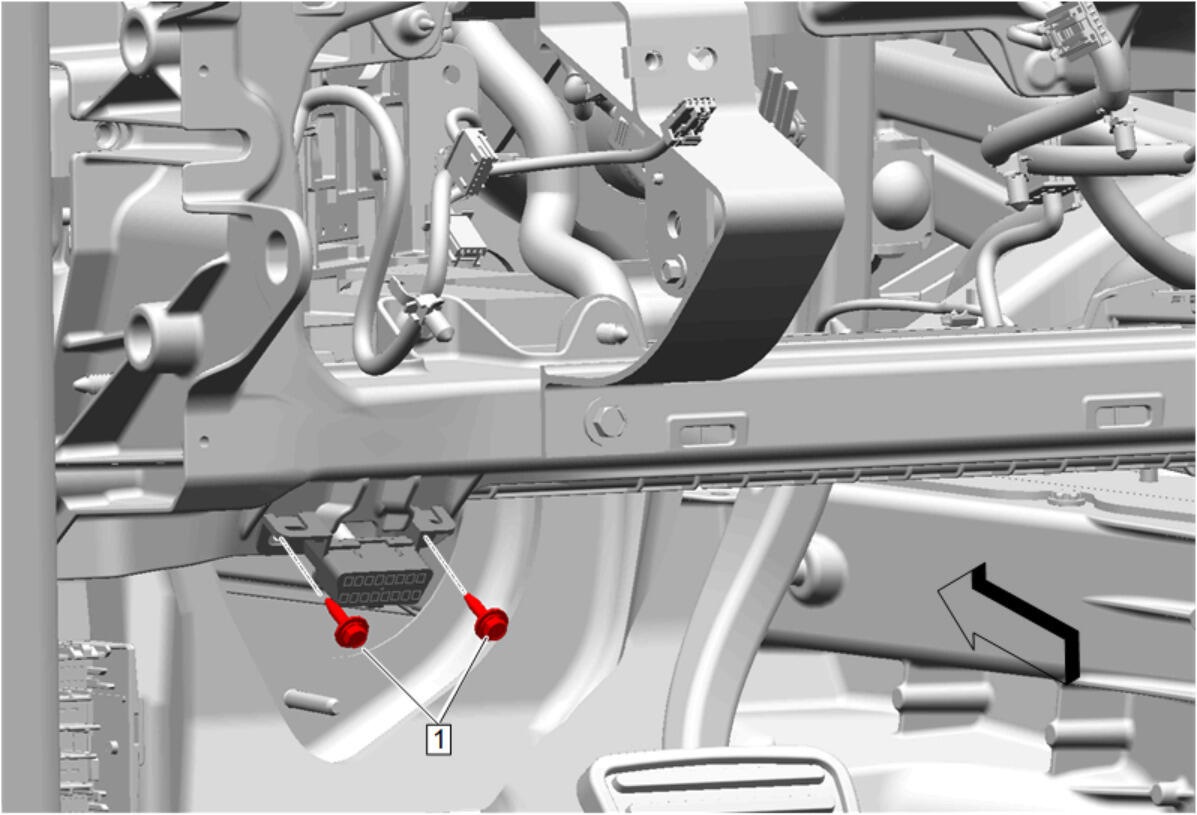

Data Link Connector Bolt (1) - Remove [2x]
- Data Link Connector - Remove
- Disconnect and reposition harness as necessary.

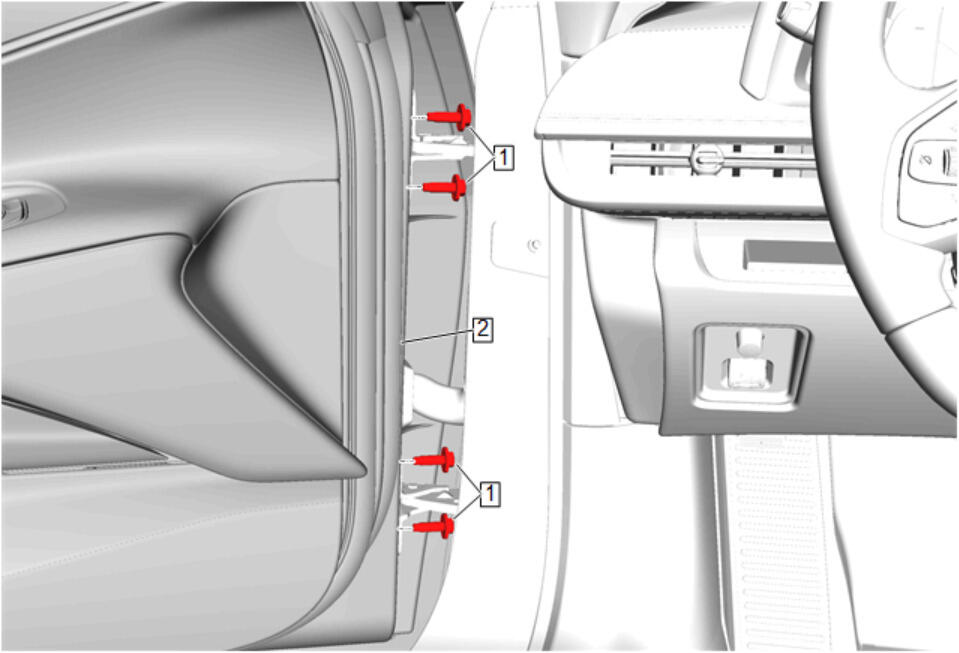

Use a flat-bladed plastic trim tool in order to release the body hinge pillar garnish molding (1) clips.
- Remove the left and right side body hinge pillar garnish moldings (1).

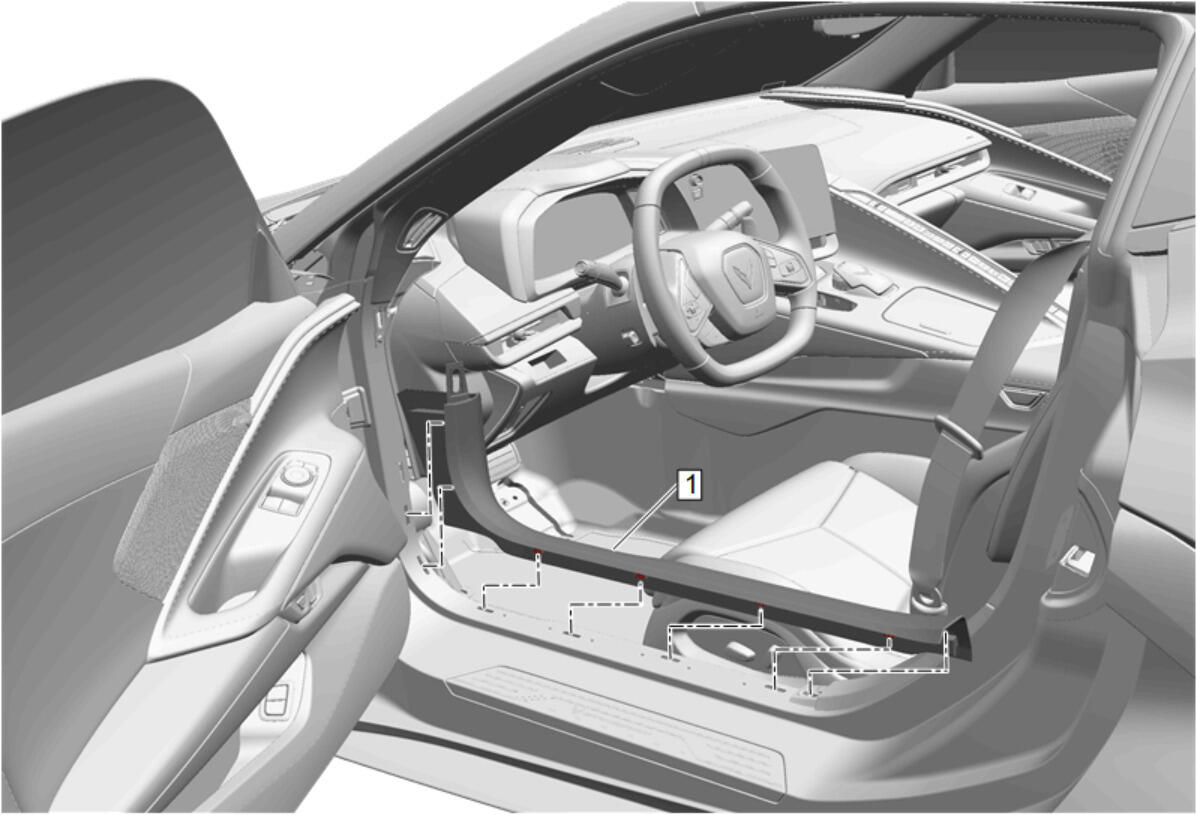

Use a flat-bladed plastic trim tool in order to release the front side door sill garnish molding (1) clips.
- Remove the left and right side front side door sill garnish moldings (1).

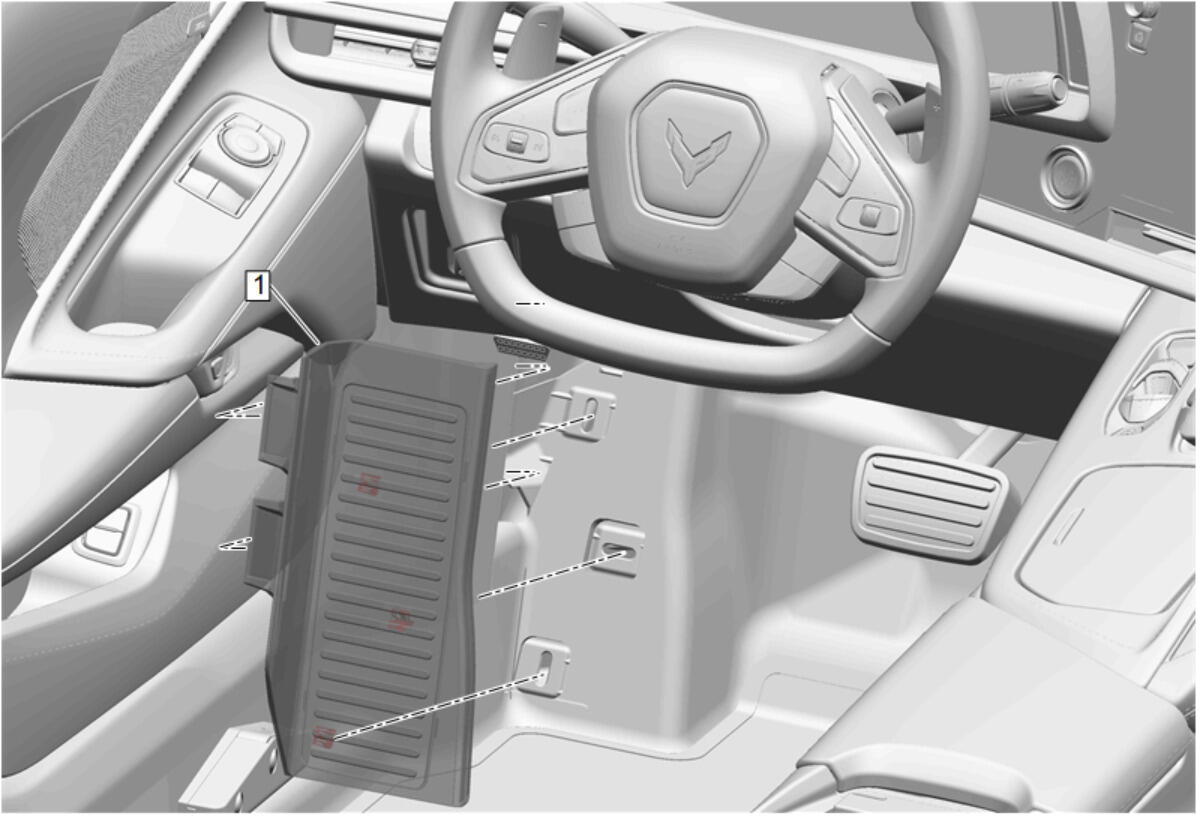

Use a flat-bladed plastic trim tool in order to release the driver footrest (1) from the driver footrest bracket.
- Driver Footrest (1) - Remove

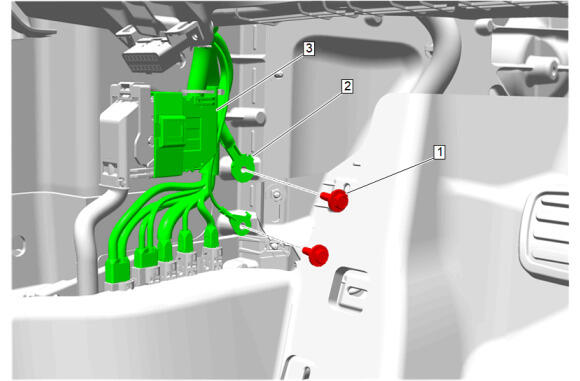

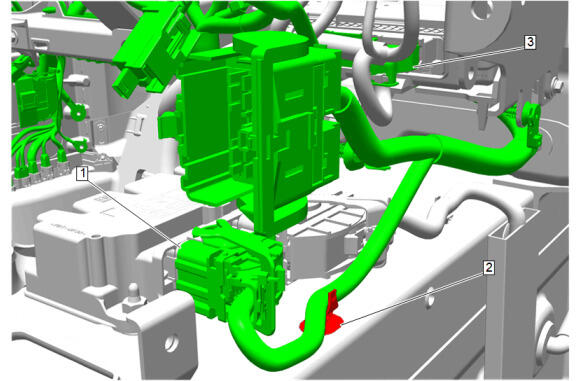

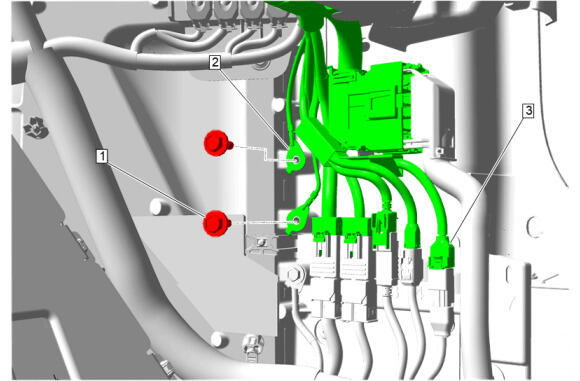

Instrument Panel Wiring Harness Ground Bolt (1) - Remove [2x]
- Ground terminal (2) - Remove [2x]
- Electrical Connector (3) - Disconnect [6x]
Electrical Connector (1) @ Restraints Control Module - Disconnect
- Wiring Harness Retainer (2) - Remove
- Electrical Connector (3) @ Serial Data Gateway Module - Disconnect

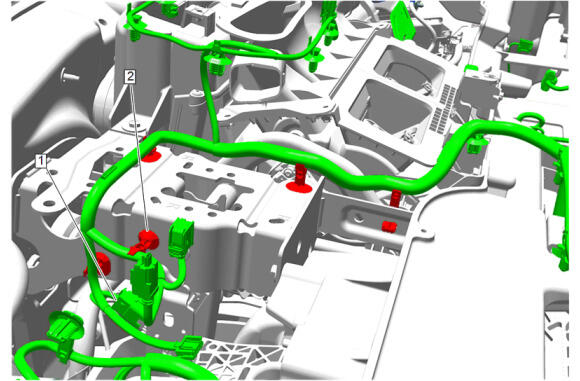

Instrument Panel Wiring Harness Ground Bolt (1) - Remove [2x]
- Ground terminal (2) - Remove [2x]
- Electrical Connector (3) - Disconnect [6x]
Disconnect the brake pedal position sensor electrical connector (1).
- Wiring Harness Retainer (2) - Remove [5x]

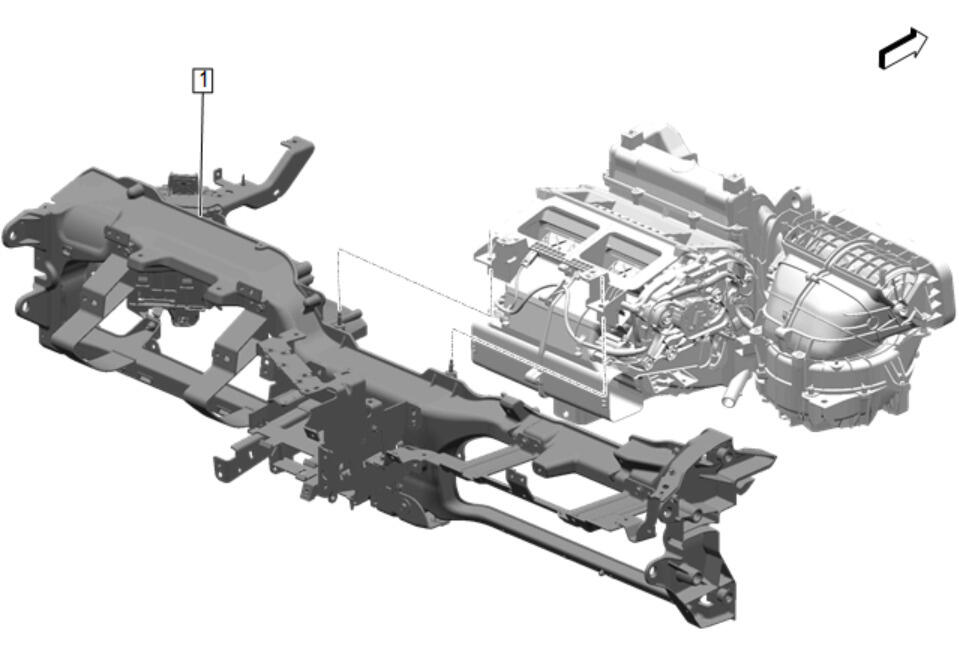

Remove the instrument panel tie bar and heater and air conditioning evaporator and blower module (1) together with the aid of an assistant.
- Place the instrument panel tie bar and heater and air conditioning evaporator and blower module (1) on a clean work surface.
- Note the location and routing of the instrument panel wiring harness prior to removal to ensure proper installation.

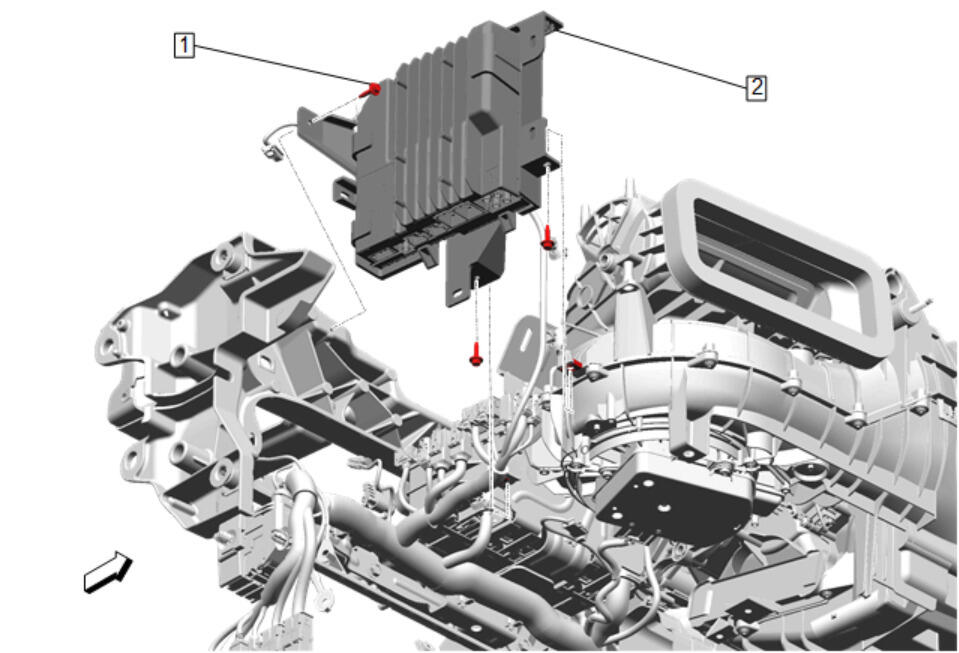

Radio Bracket Bolt (1) - Remove [3x]
- Radio Bracket (2) - Remove

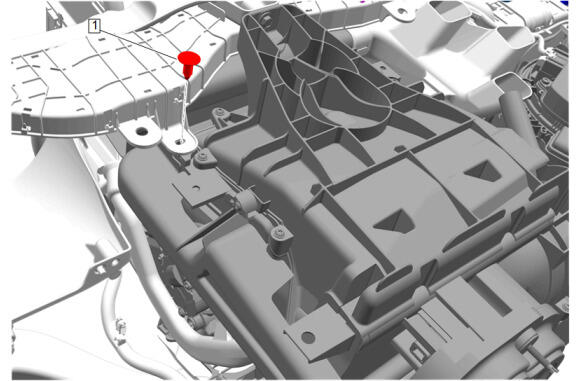

Instrument Panel Wiring Harness Clip (1) - Remove
Body Wiring Harness Fuse Block Bracket Bolt (1) - Remove [3x]
- Air Distributor Case Bolt (2) - Remove
Heater and Air Conditioning Evaporator and Blower Module Nut (1) - Remove [2x]
- Heater and Air Conditioning Evaporator and Blower Module Bolt (2) - Remove
- Disconnect the electrical connectors.
Instrument Panel Tie Bar (1) - Remove

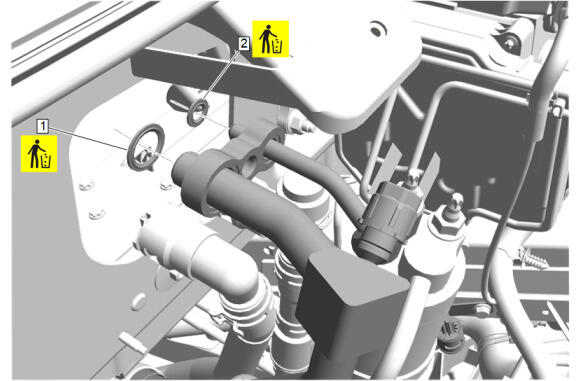

Air Conditioning Sealing Washer-Large (1) - Remove and DISCARD
- Air Conditioning Sealing Washer-Small (2) - Remove and DISCARD
