Transmission Fluid Pump and Inlet Tube Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

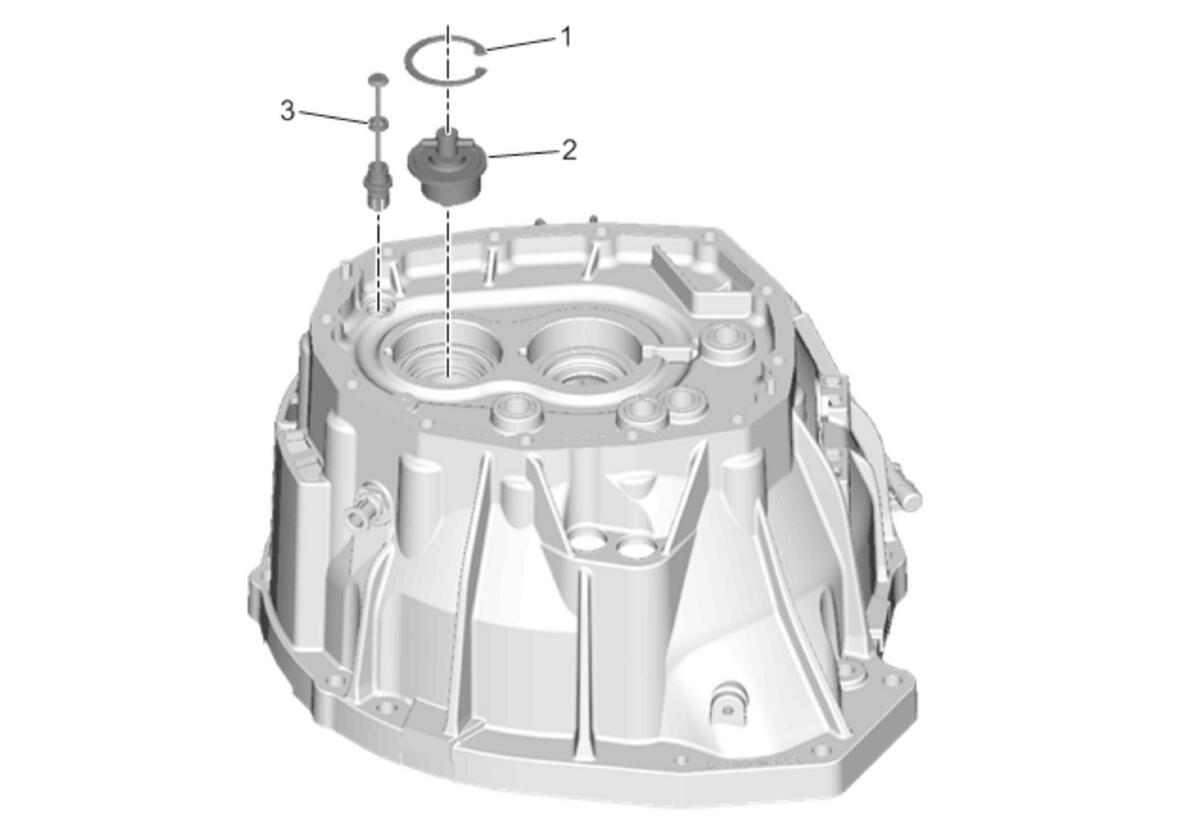

Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Pump and Inlet Tube Removal
| Callout |
Component Name |
| 1 |
Transmission Fluid Pump Retaining Ring |
| 2 |
Transmission Fluid Pump
NOTE:
Discard the pump, it is not reusable.
|
| 3 |
Pump Inlet Tube |
