Clutch Housing Assembly
WARNING: This page is about a different variant/trim than selected.
- WARNING:
Wear safety glasses to avoid injury when using compressed air or any cleaning solvent. Bodily injury may occur if fumes are inhaled or if skin is exposed to chemicals.

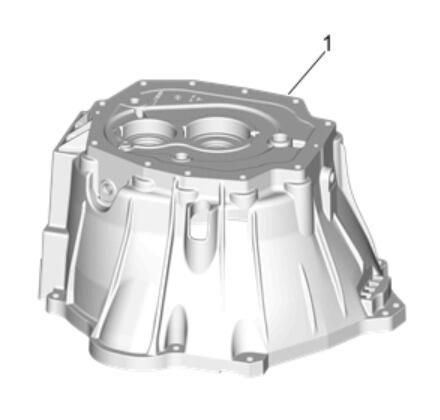

Clean the clutch housing (1) parts with a suitable solvent. Air dry all the parts.
- Inspect the clutch housing parts for the following conditions:
- Cracks
Replace the clutch housing part if cracks are found.
- Scratches
- Burrs
- Nicked mounting surfaces
- Damaged sealing surfaces
- Damaged front or rear bearing bores
- Cracks
- Inspect the machined mating surfaces for flatness. Check the mating surfaces with a straight edge.
- Inspect the bearing races and bores for wear, scratches or grooves.
- Inspect the bushing for excessive wear. Replace worn bushings.
- Use a fine mill file to dress minor scratches or burrs.
- If scratches, or grooves or scoring cannot be removed by hand with a soft stone or crocus cloth, replace the component.
