Transmission Case Shift Shaft Bearing Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

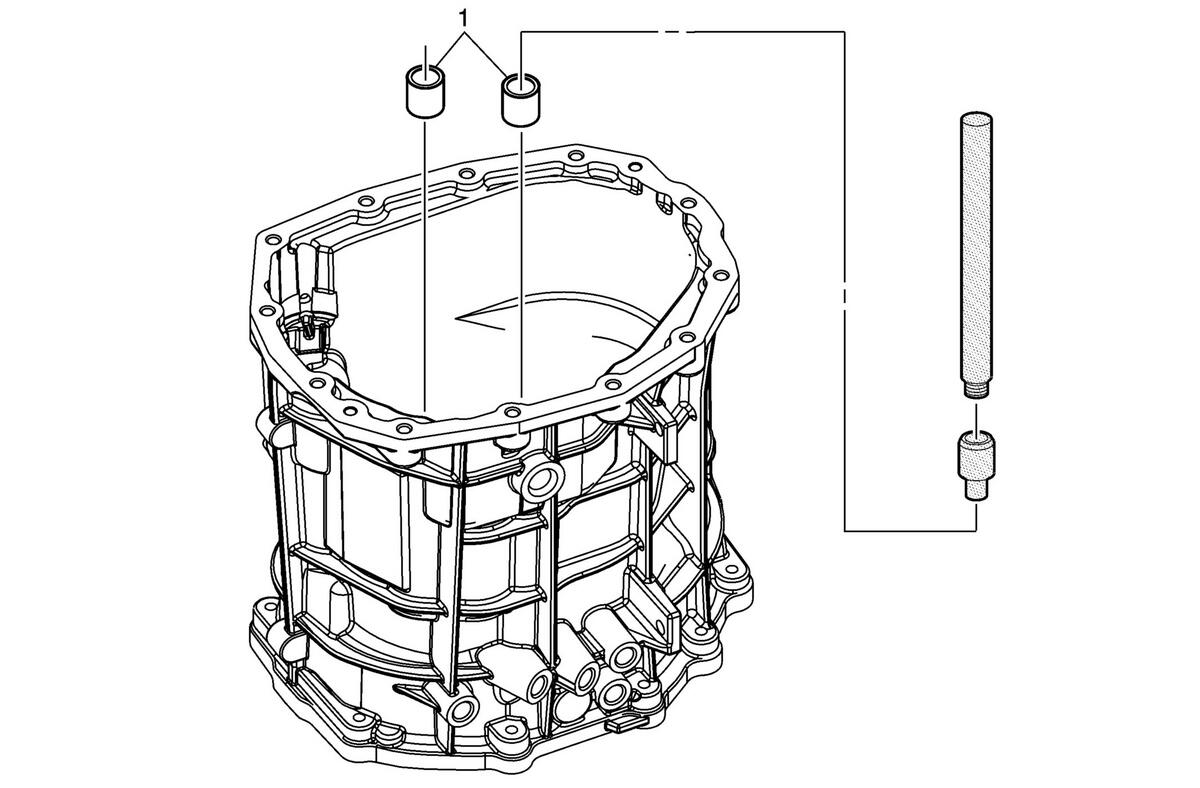

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Shift Shaft Bearing Assembly Procedure Install the J 44384 shift fork bearing installer into the bearing. Install the J 36190 driver handle into the remover. Install the bearing. Special Tools J 36190 Driver Handle J 44384 Shift Fork Bearing Installer For equivalent regional tools, refer to Special Tools (M13) .

Callout

Component Name

Shift Shaft Bearing Assembly

Procedure

Special Tools
J 36190 Driver Handle
J 44384 Shift Fork Bearing Installer
For equivalent regional tools, refer to Special Tools (M13) .
