Clutch Housing Shift Shaft Bearing and Input Shaft Seal Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

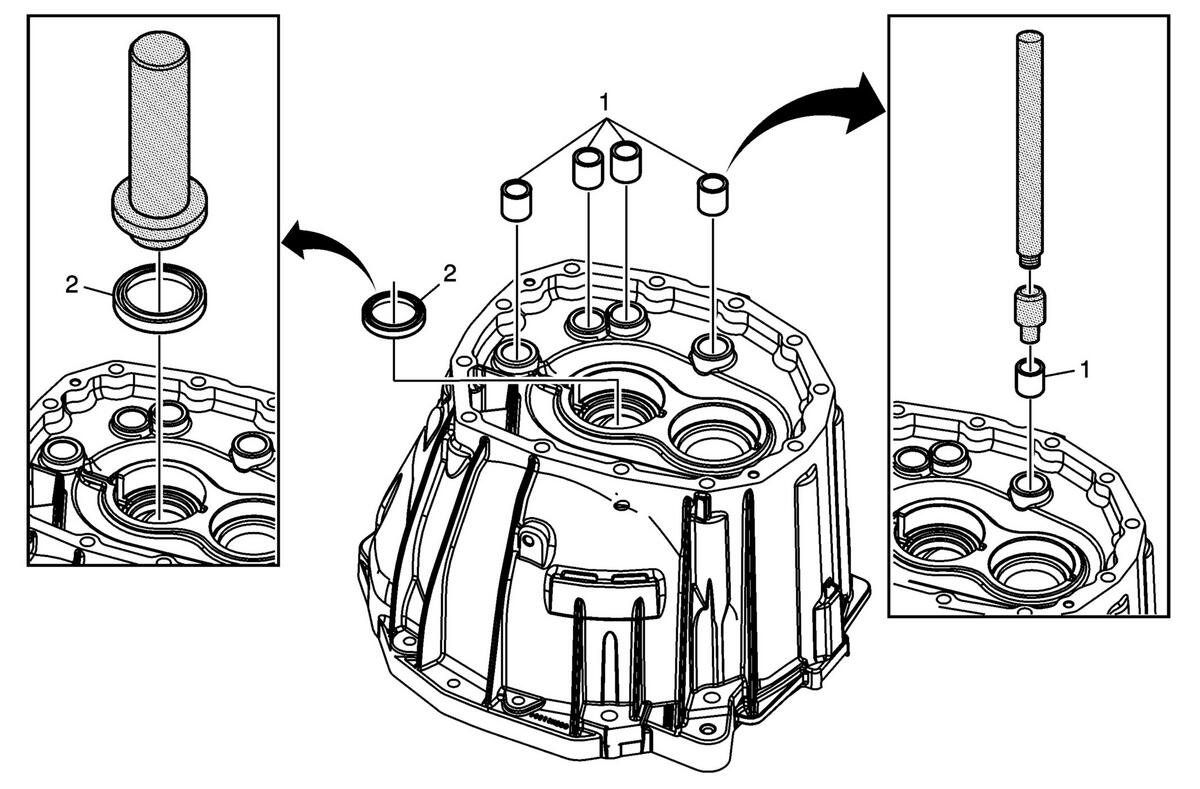

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Shift Shaft Bearing Assembly Procedure Install the J 44384 shift fork bearing installer into the bearing. Install the J 36190 driver handle into the remover. Install the bearing. Special Tools J 36190 Driver Handle J 44384 Shift Fork Bearing Installer For equivalent regional tools, refer to Special Tools (M13) .
2	Input Shaft Seal Procedure Install the GE 8092 driver handle into the DT 48078 inner drive shaft seal installer. Install the seal. Special Tools GE 8092 Driver Handle DT 48078 Inner Drive Shaft Seal Installer For equivalent regional tools, refer to Special Tools (M13) .

Callout

Component Name

Shift Shaft Bearing Assembly

Procedure

Special Tools
J 36190 Driver Handle
J 44384 Shift Fork Bearing Installer
For equivalent regional tools, refer to Special Tools (M13) .

Input Shaft Seal

Procedure

Install the GE 8092 driver handle into the DT 48078 inner drive shaft seal installer.
Install the seal.

Special Tools
GE 8092 Driver Handle
DT 48078 Inner Drive Shaft Seal Installer
For equivalent regional tools, refer to Special Tools (M13) .
