Clutch Housing Bearing Race and Shim Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

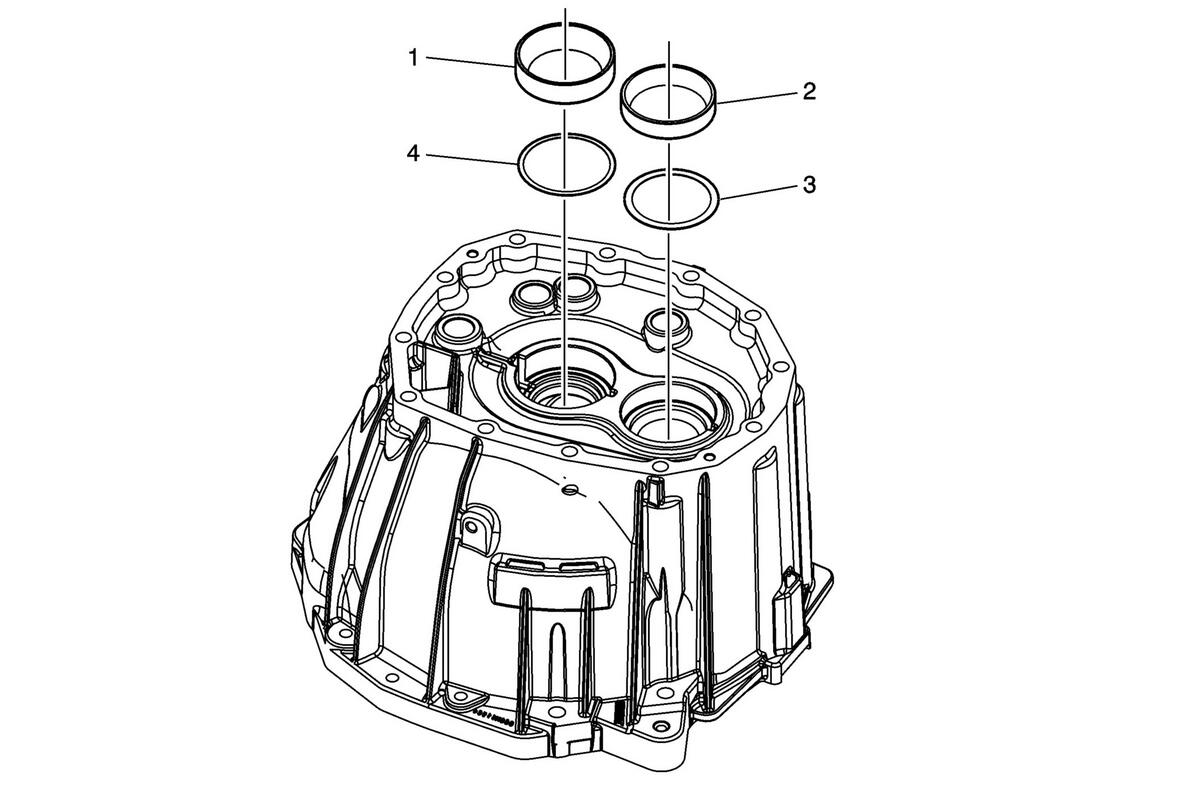

Callouts in the following chart represent components shown in graphic above.
Clutch Housing Bearing Race and Shim Installation
| Callout |
Component Name |
| 1 |
Input Shaft Bearing Race |
| 2 |
Counter Gear Front Bearing Race |
| 3 |
Counter Gear Front Bearing Shim |
| 4 |
Input Shaft Bearing Shim |
