Supercharger Belt Tensioner Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

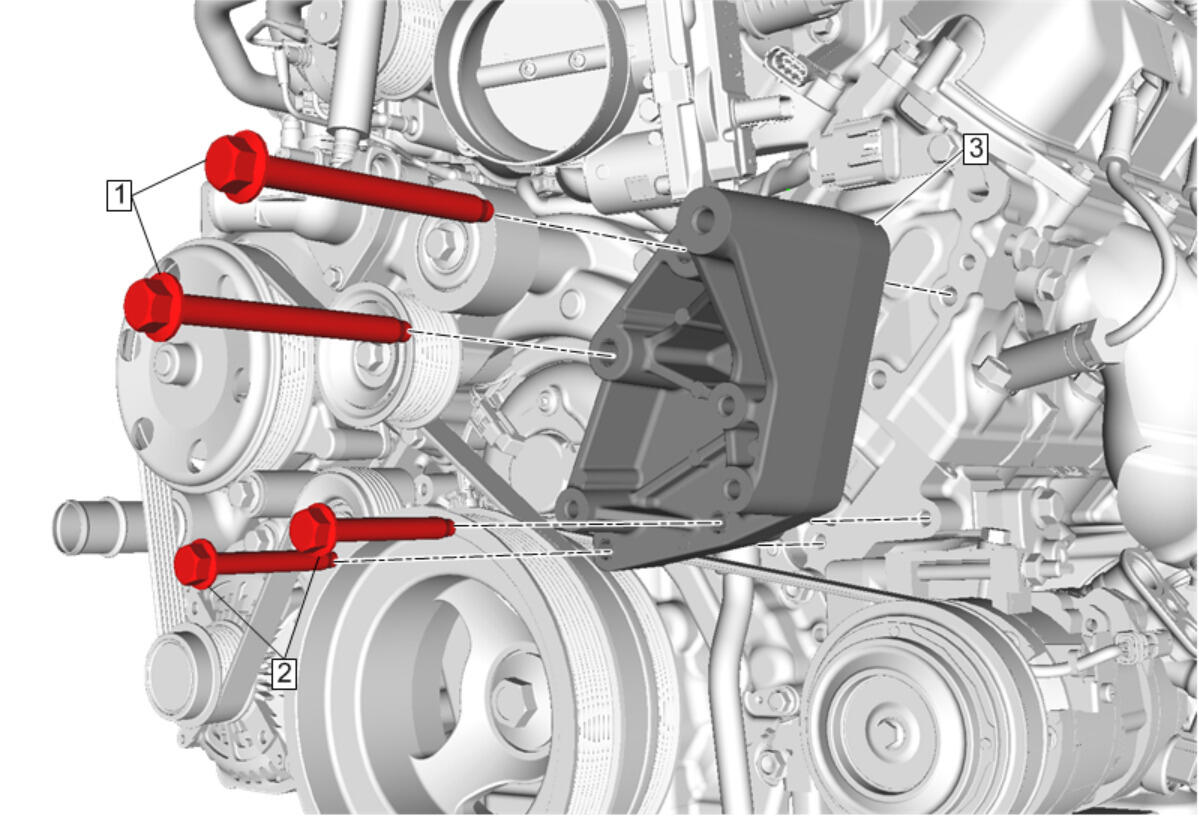

Callout	Component Name
Preliminary Procedures Supercharger Belt Tensioner Replacement Supercharger Belt Idler Pulley-Upper @ Supercharger Belt Tensioner Bracket - Remove - Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Upper) , or Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower) , or Supercharger Belt Idler Pulley Replacement (Supercharger Belt Tensioner Bracket)
1	Supercharger Belt Tensioner Bracket Bolt [2] CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Supercharger Belt Tensioner Bracket Bolt Tighten 25 N.m (18 lb ft)
3	Supercharger Belt Tensioner Bracket
