Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Upper)
WARNING: This page is about a different variant/trim than selected.

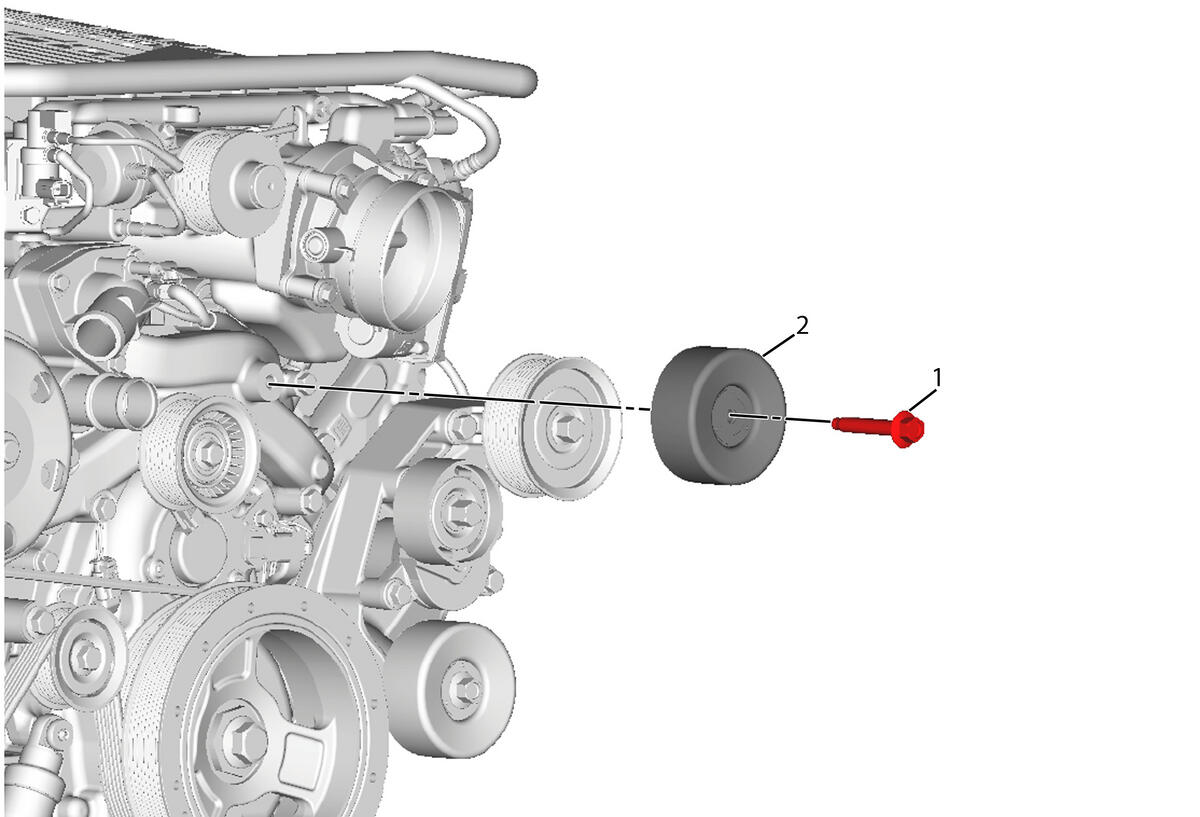

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the supercharger belt. Supercharger Belt Replacement . |
|
| 1 | Supercharger Idler Pulley Fastener
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Supercharger Idler Pulley |
