Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Evaporative Emission Canister Purge Tube Replacement (LT1) - Remove

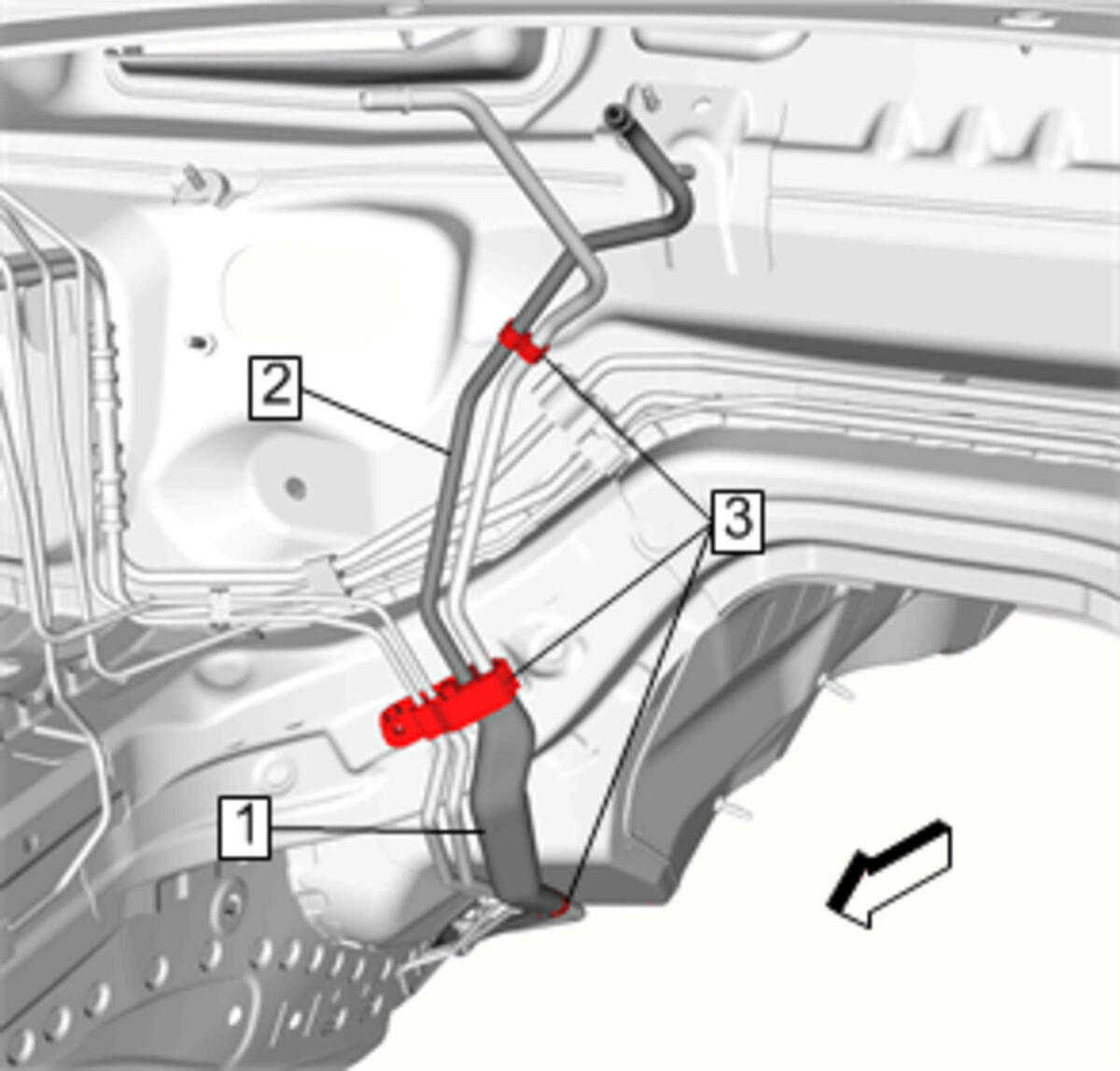

Heat Sleeve (1) - Remove
- Evaporative Emission Pipe (2) @ Retainer (3) - Remove [3x]
- Raise and support the vehicle. Lifting and Jacking the Vehicle (ZL1) , or Lifting and Jacking the Vehicle (Convertible)
- Underbody Front Air Deflector Replacement - Right Side - Remove
- Front Body Exhaust Heat Shield Replacement (Right) , or Front Body Exhaust Heat Shield Replacement (Left) - Remove
- Catalytic Converter Replacement - Right Side (LT1, LT4) - Remove
Evaporative Emission Pipe (1) @ Fuel Tank Vent Valve Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Pipe (1) @ Retainer (3) - Remove [5x]
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
