Evaporative Emission Canister Purge Tube Replacement (LT1)
WARNING: This page is about a different variant/trim than selected.
NOTE:

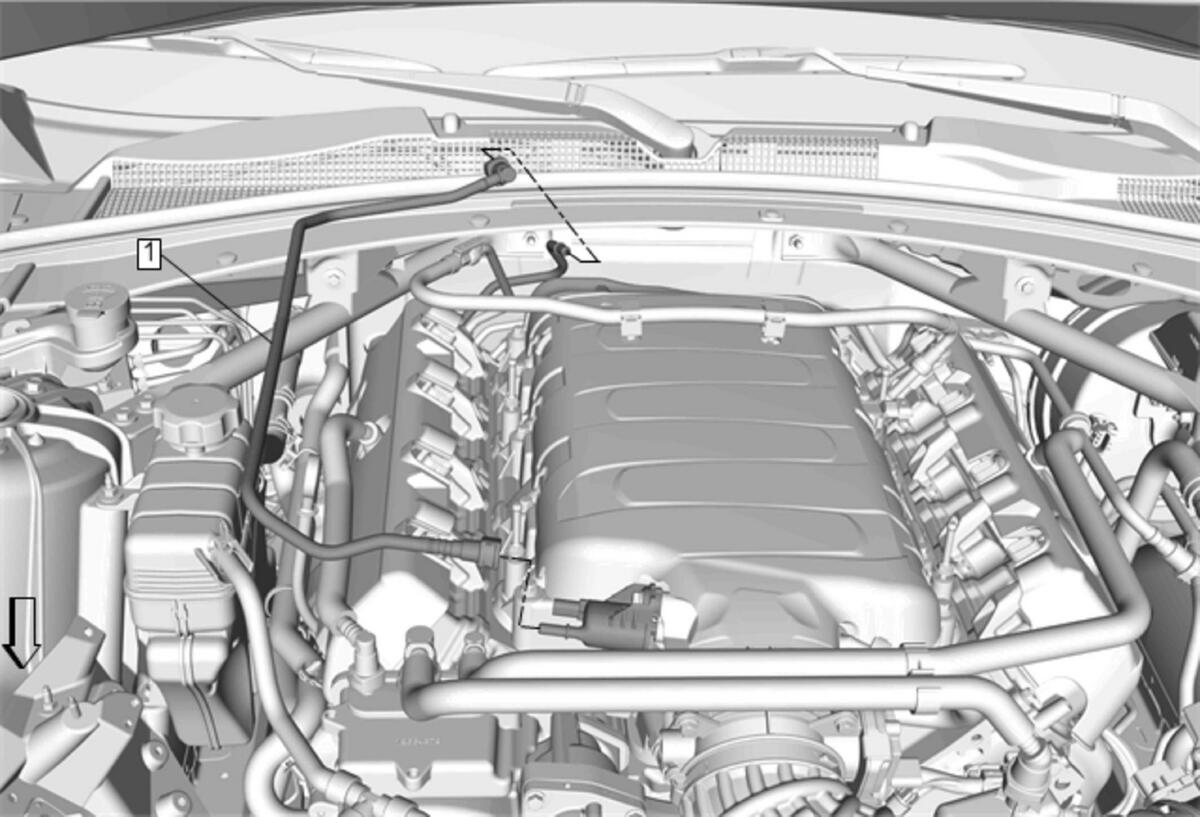

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Upper Intake Manifold Cover Replacement |
|
| 1 | Evaporative Emission Canister Purge Tube Procedure Evaporative Emission Canister Purge Tube @ Evaporative Emission Pipe and Evaporative Emission Canister Purge Solenoid Valve - Disconnect - Plastic Collar Quick Connect Fitting Service |
