Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

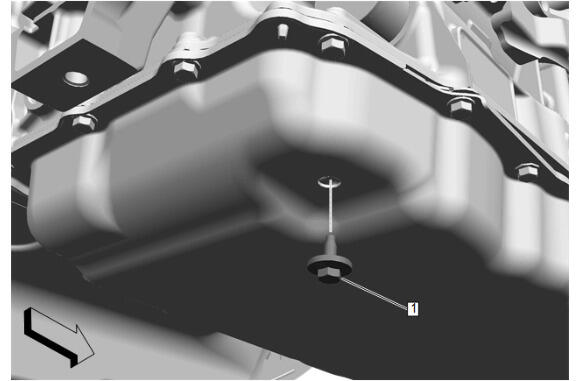

  1. GM5511746Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Transmission Oil Level Check Plug (1) - Install and tighten - Fastener Specifications

  2. Remove the drain pan.
  3. Lower the vehicle.
  4. Check the transmission fluid level and condition and correct as necessary. Transmission Fluid Level and Condition Check
