Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

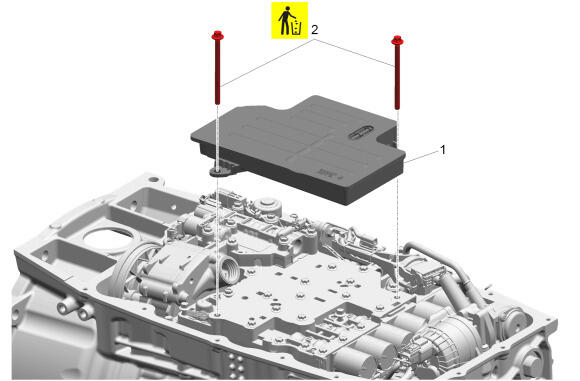

  1. GM5427506Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Filter (1) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Automatic Transmission Fluid Filter Bolt (2) - Install NEW and tighten [2x] - Fastener Specifications
  3. GM5427504Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Pan Gasket (3) - Install

  4. Automatic Transmission Fluid Pan (4) - Install
  5. Automatic Transmission Fluid Pan Bolt (5) - Install and tighten in sequence [16x] - Fastener Specifications
  6. Remove the drain pan.
  7. Lower the vehicle.
  8. Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
