Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

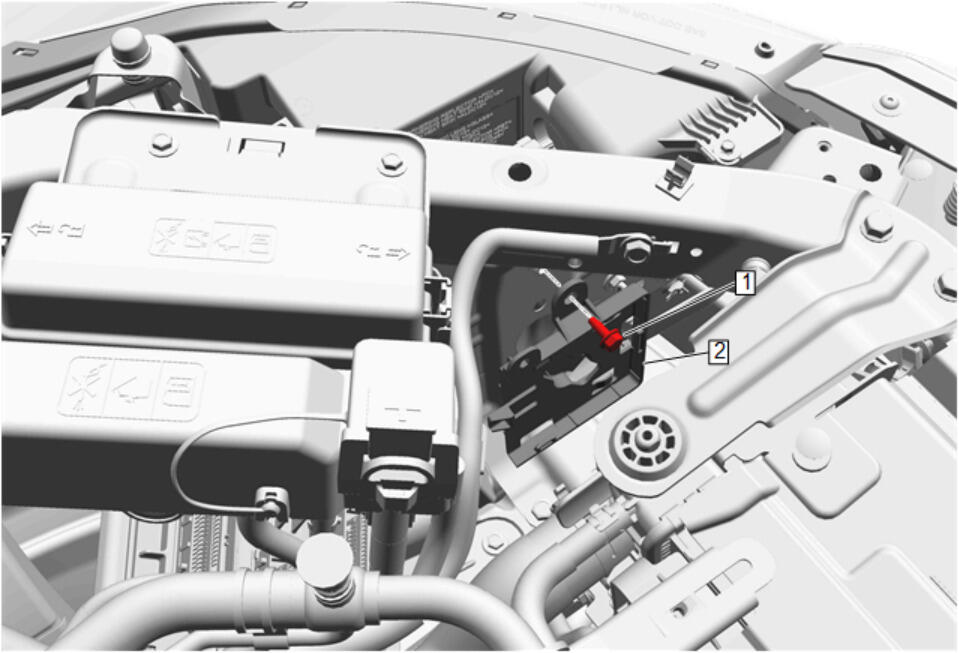

Transmission Control Module Bracket (2) - Install
- Transmission Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications

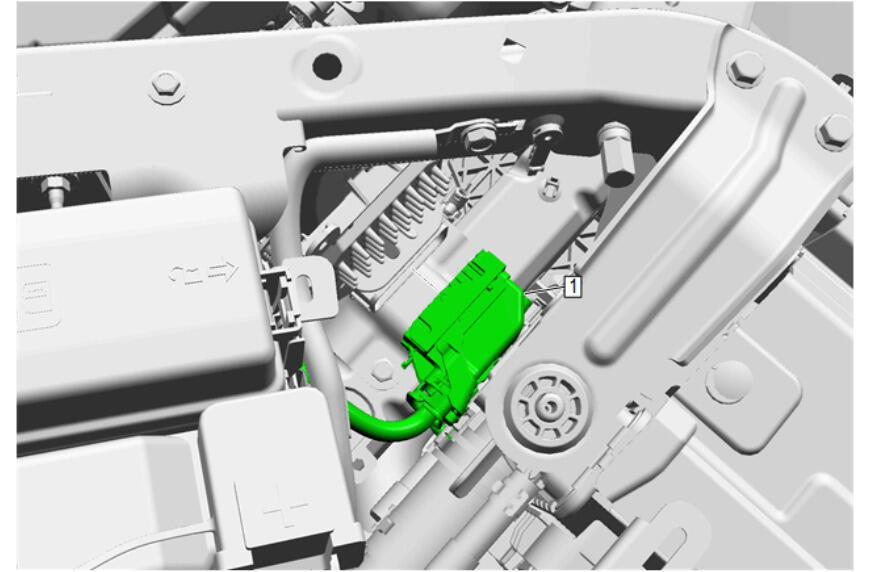

Snap the transmission control module (1) into the transmission control module bracket.

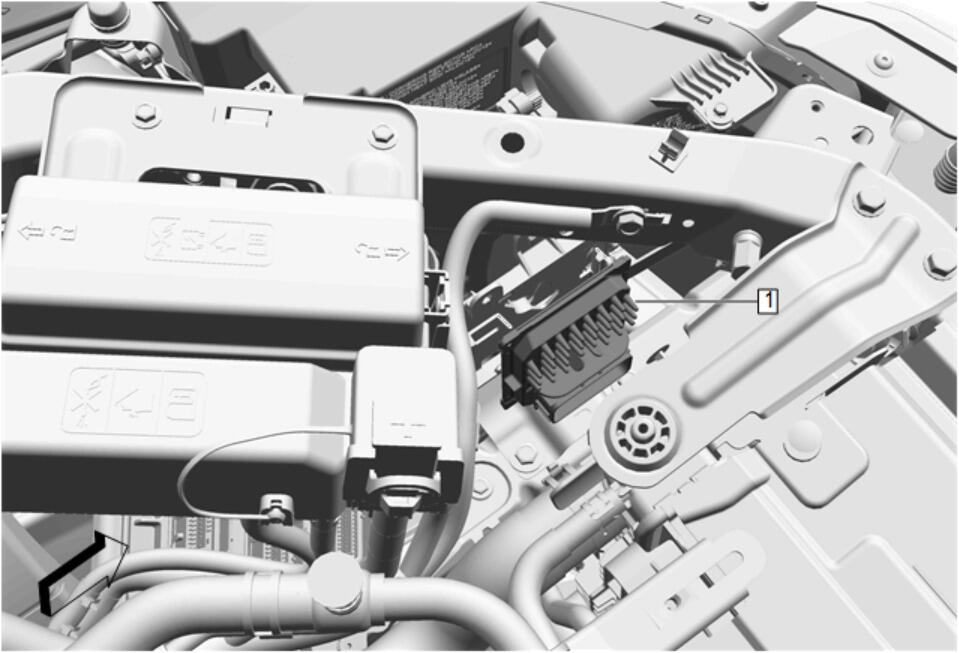

Connect the transmission control module electrical connector (1).
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Program the transmission control module, if replaced. Control Module References
CAUTION:
Refer to Fastener Caution .
