Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

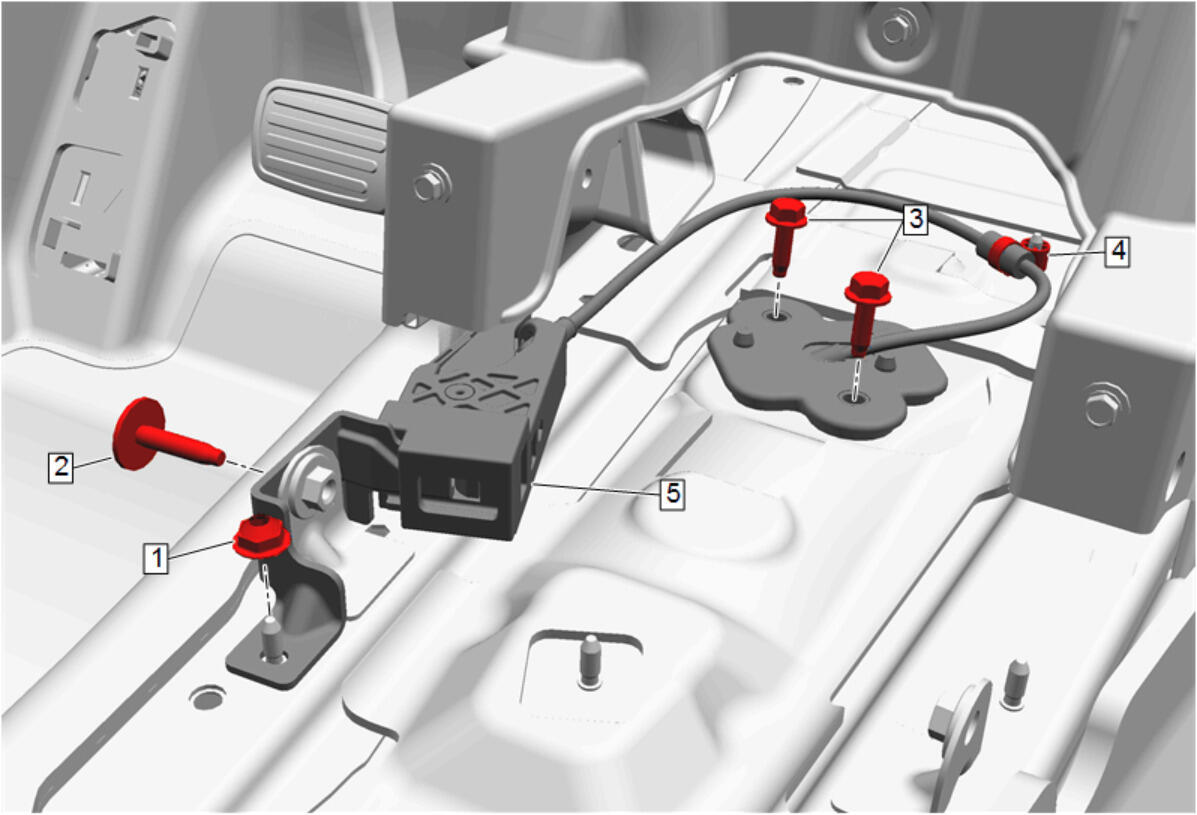

  1. GM5328635Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Range Selector Manual Park Release Cable (5) - Install

  2. Install the retainer. (4)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Electronic Transmission Range Selector Manual Park Release Cable Grommet Bolt (3) - Install and tighten [2x] - Fastener Specifications
  4. Front Floor Console Bracket Bolt (2) - Install and tighten - Fastener Specifications
  5. Electronic Transmission Range Selector Manual Park Release Shift Lever Nut (1) - Install and tighten - Fastener Specifications
  6. Raise the vehicle.
  7. GM5403540Courtesy of GENERAL MOTORS COMPANY

    Install the electronic transmission range selector manual park release cable (2) to the electronic transmission range selector manual park release cable bracket on the transmission.

  8. Clip the electronic transmission range selector manual park release cable (1) retainer to the electronic transmission range selector manual park release cable bracket.
  9. GM5403496Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Range Selector Manual Park Release Cable (2) @ Transmission - Install

  10. Electronic Transmission Range Selector Manual Park Release Cable Clamp Bolt (1) - Install and tighten - Fastener Specifications
  11. GM5328679Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Range Selector Manual Park Release Cable Guide Nut (1) - Install and tighten - Fastener Specifications

  12. Lower the vehicle. Lifting and Jacking the Vehicle

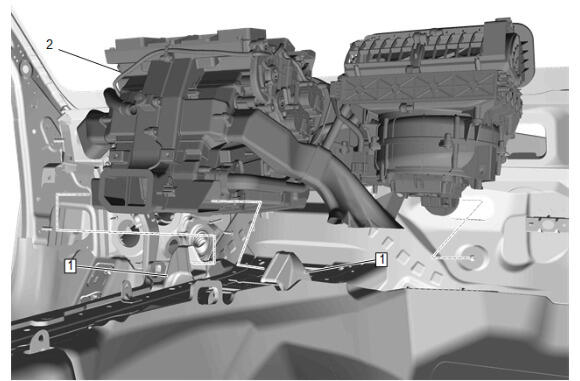

  13. GM5504491Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module (2) - Install - Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

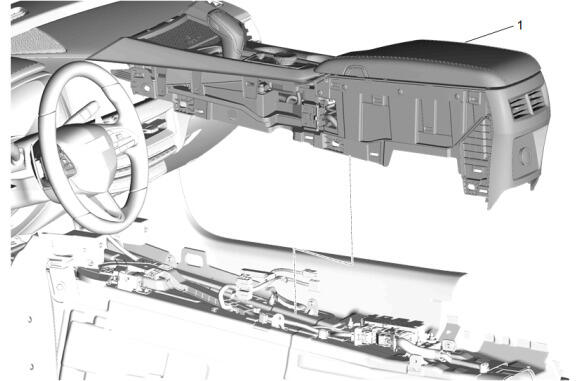

  14. GM5502868Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the front floor console (1) to the vehicle.

  15. Connect the front floor console wiring harness to the body wiring harness.
  16. GM5323222Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  17. Automatic Transmission Electronic Control (2) - Install
    18. CAUTION:

    Refer to Fastener Caution .

  18. Automatic Transmission Control Bolt (1) - Install and tighten [4x] - Fastener Specifications
  19. GM5502706Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  20. Front Floor Console Trim Plate (1) - Install
  21. GM5502705Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] - Fastener Specifications

  22. Front Floor Console Variable 1 Liner (1) - Install
  23. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  24. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  25. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  26. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  27. Return the seat to its original position.
  28. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  29. Return the seat to its original position.
  30. Adjust the automatic transmission range selector cable. Range Selector Lever Cable Adjustment
