Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

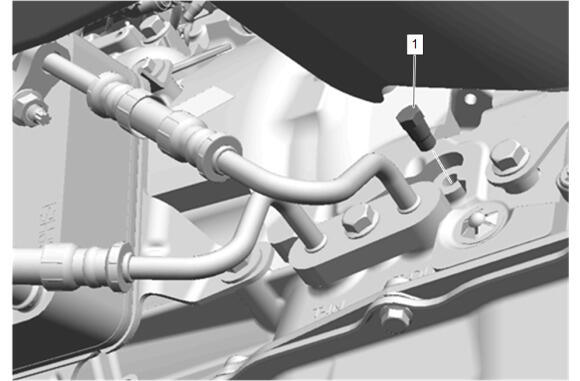

Prepare the automatic transmission fluid pressure test hole plug (1) for installation as follows:
- Remove all traces of the adhesive patch from the plug and the mating threads using the appropriate tools.
- Clean the threads of the plug and mating threads with denatured alcohol or equivalent and allow to dry.
- Apply thread locking adhesive to the plug. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the plug.
- Automatic Transmission Fluid Pressure Test Hole Plug (1) - Install and tighten - Fastener Specifications
- Check the transmission fluid level and condition and correct as necessary. Transmission Fluid Level and Condition Check
- Lower the vehicle. Lifting and Jacking the Vehicle
CAUTION:
Refer to Component Fastener Tightening Caution .
