Installation Procedure

  1. GM5670550Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

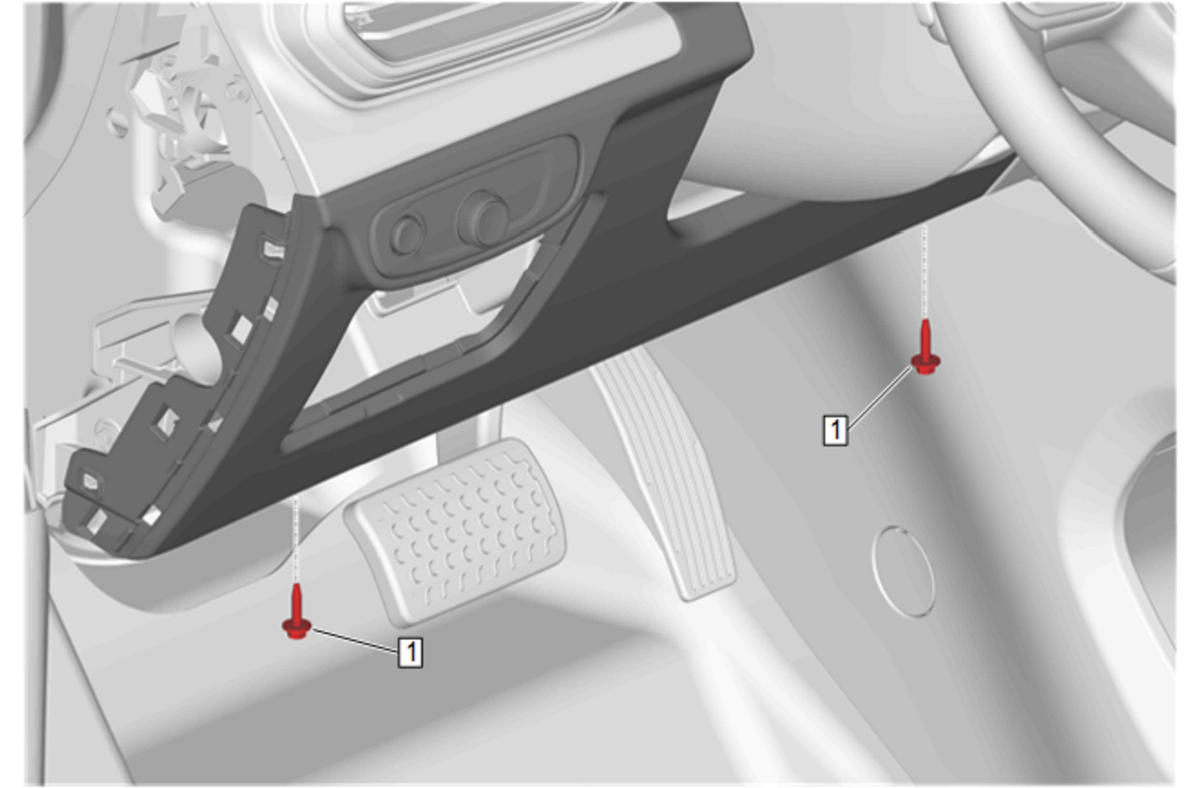

  2. GM5670548Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Knee Bolster Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  3. GM5670535Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install - Instrument Panel Fuse Block Access Hole Cover Replacement

  4. GM5670530Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
