Instrument Panel Outer Trim Cover Replacement

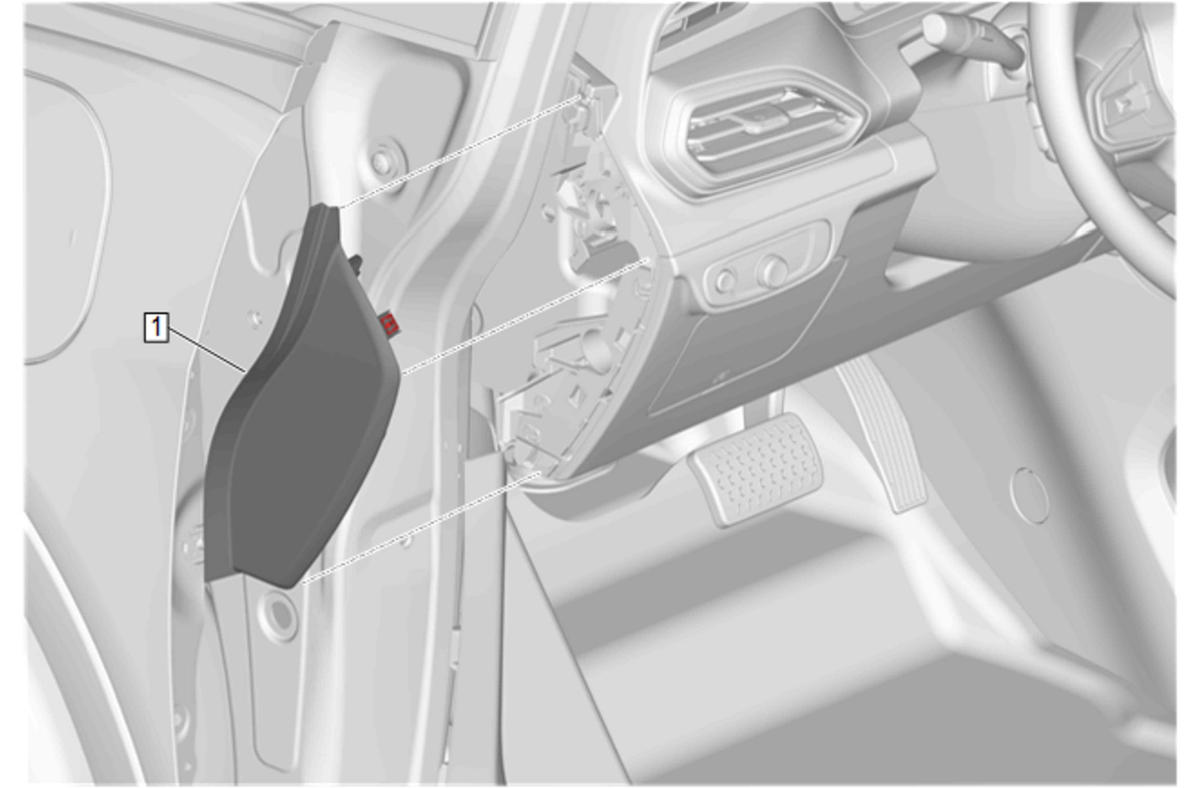

GM5670530Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Outer Trim Cover

Procedure

  1. Reposition the weatherstrip as necessary.
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
