Installation Procedure

  1. GM5678650Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

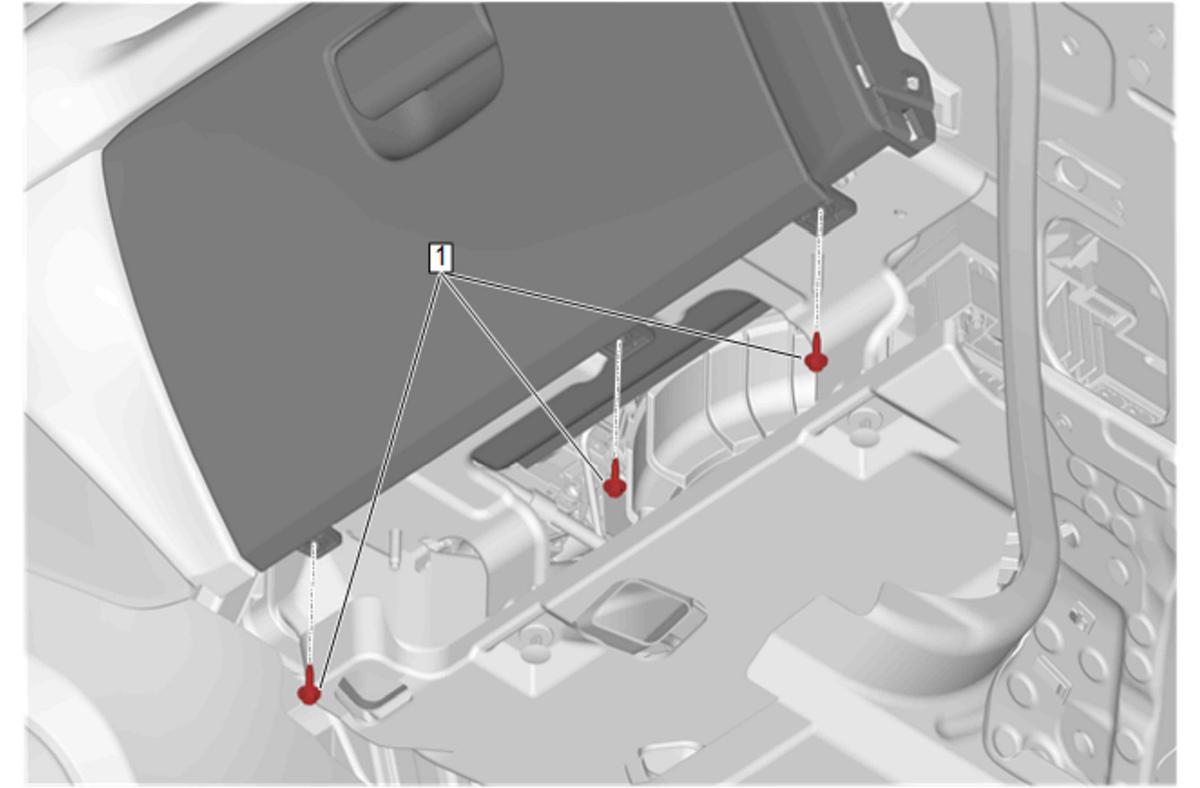

  2. GM5678645Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

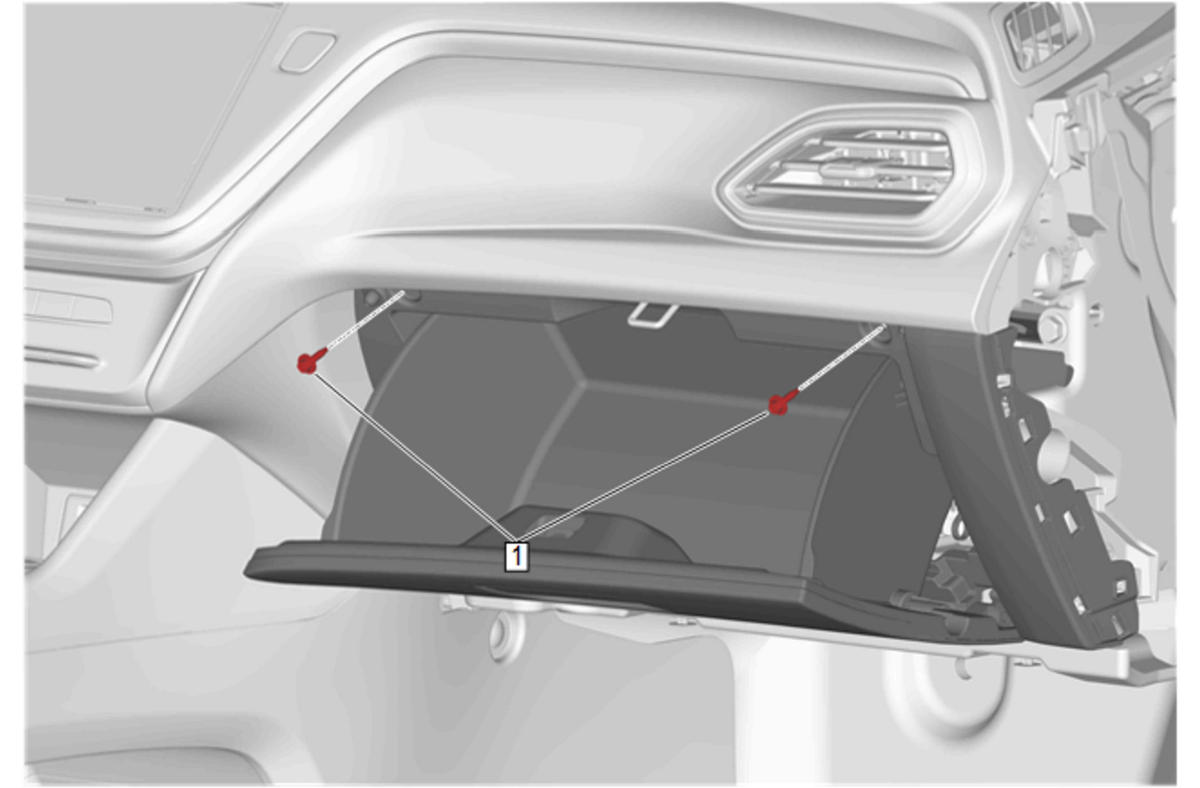

  3. GM5678642Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

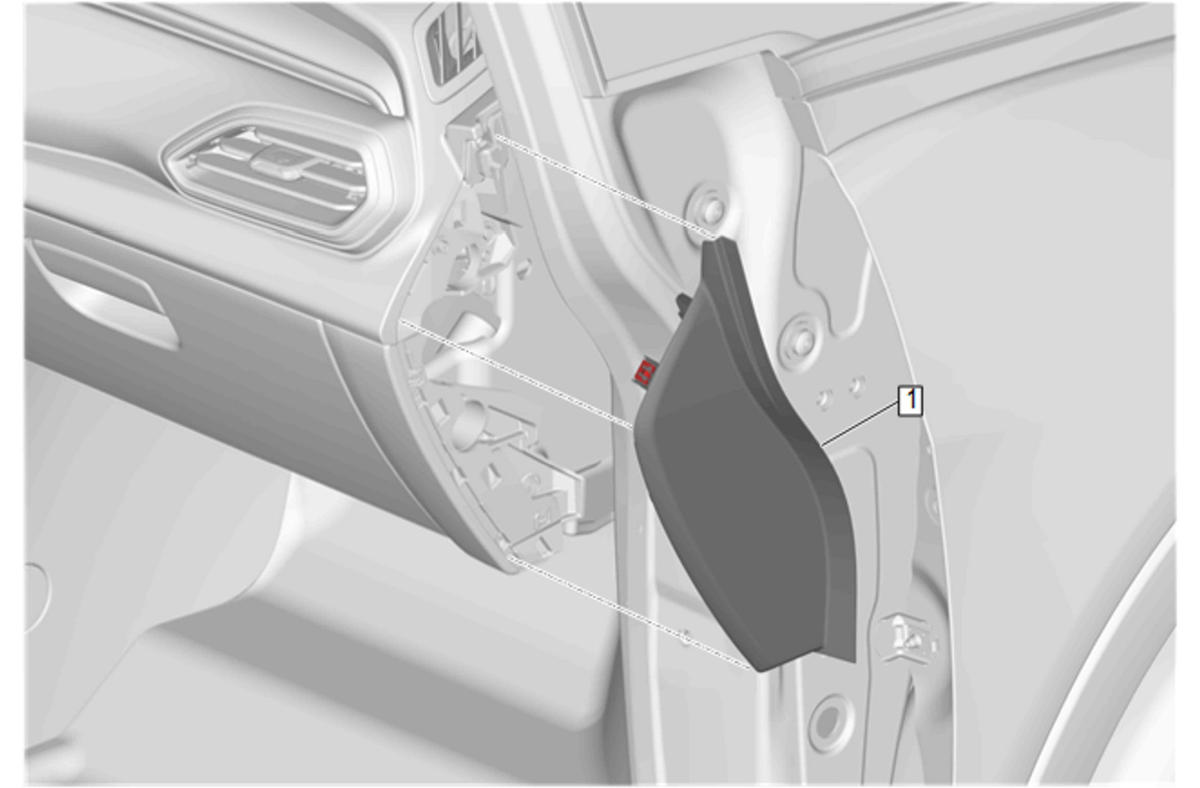

  4. GM5678639Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement

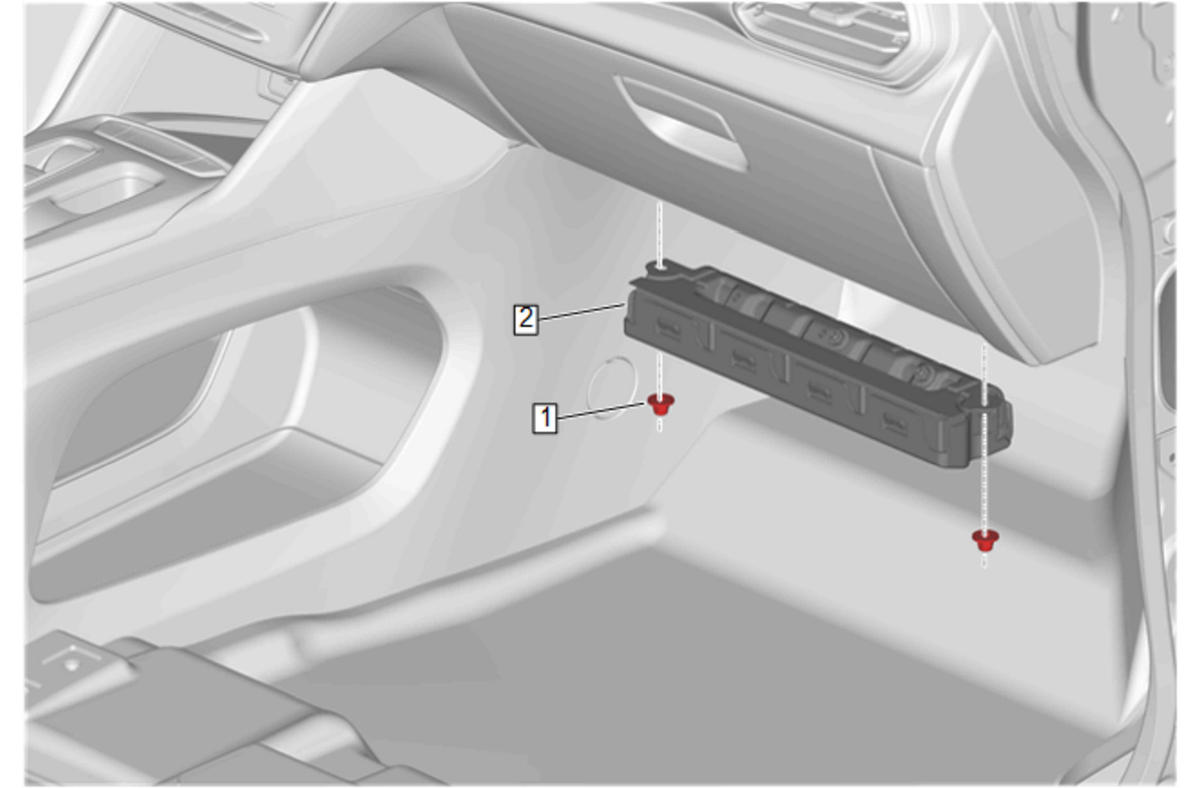

  5. GM5678699Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Passenger Side (2) - Install - Instrument Panel Lower Airbag Replacement - Passenger Side
