Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

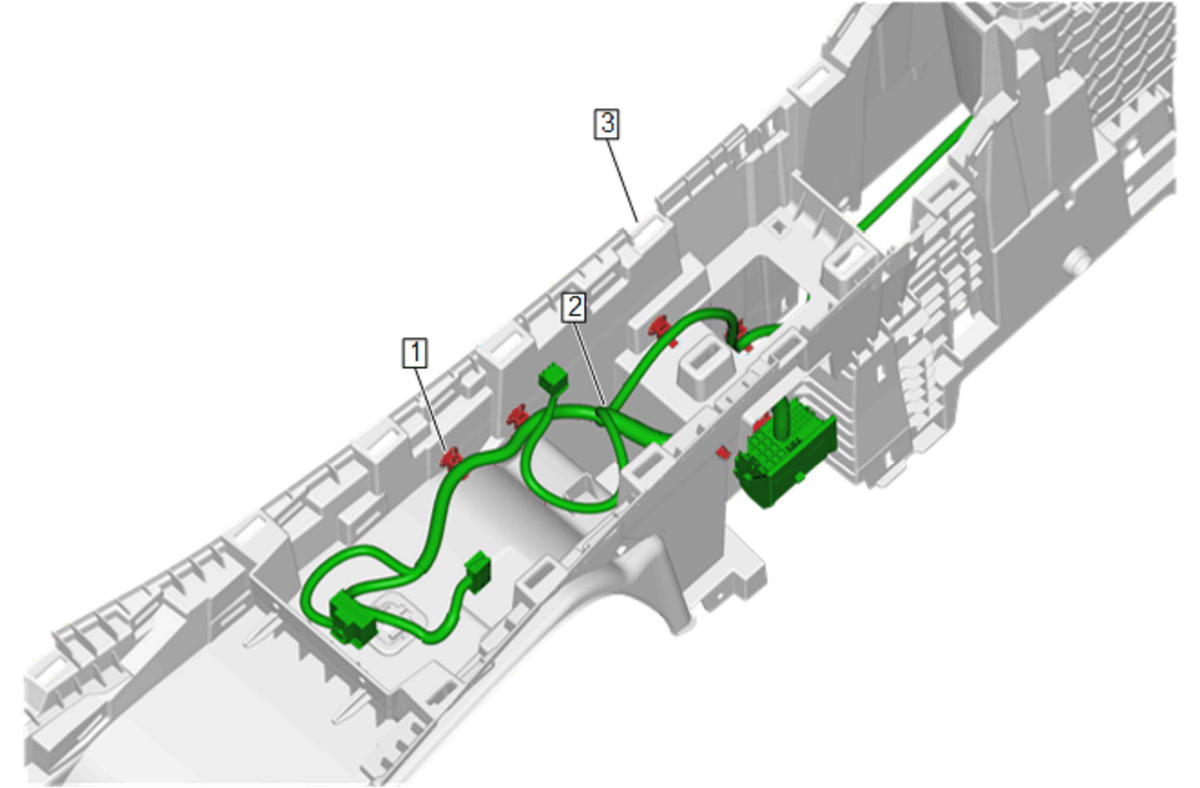

Install the front floor console wiring harness (2) at the front floor console carrier (3).
Install the wiring harness retainers (1).
Courtesy of GENERAL MOTORS COMPANY

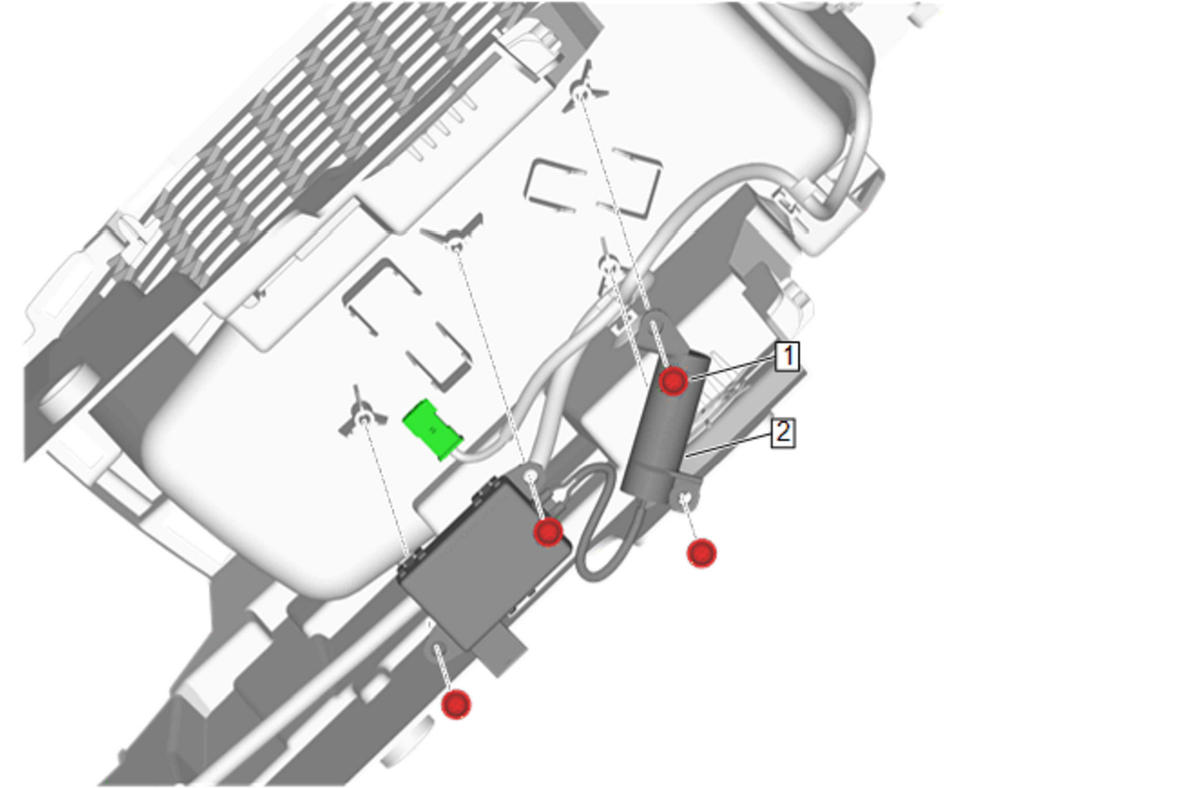

Theft Deterrent Module (2) - Install - Theft Deterrent Module Replacement
Courtesy of GENERAL MOTORS COMPANY

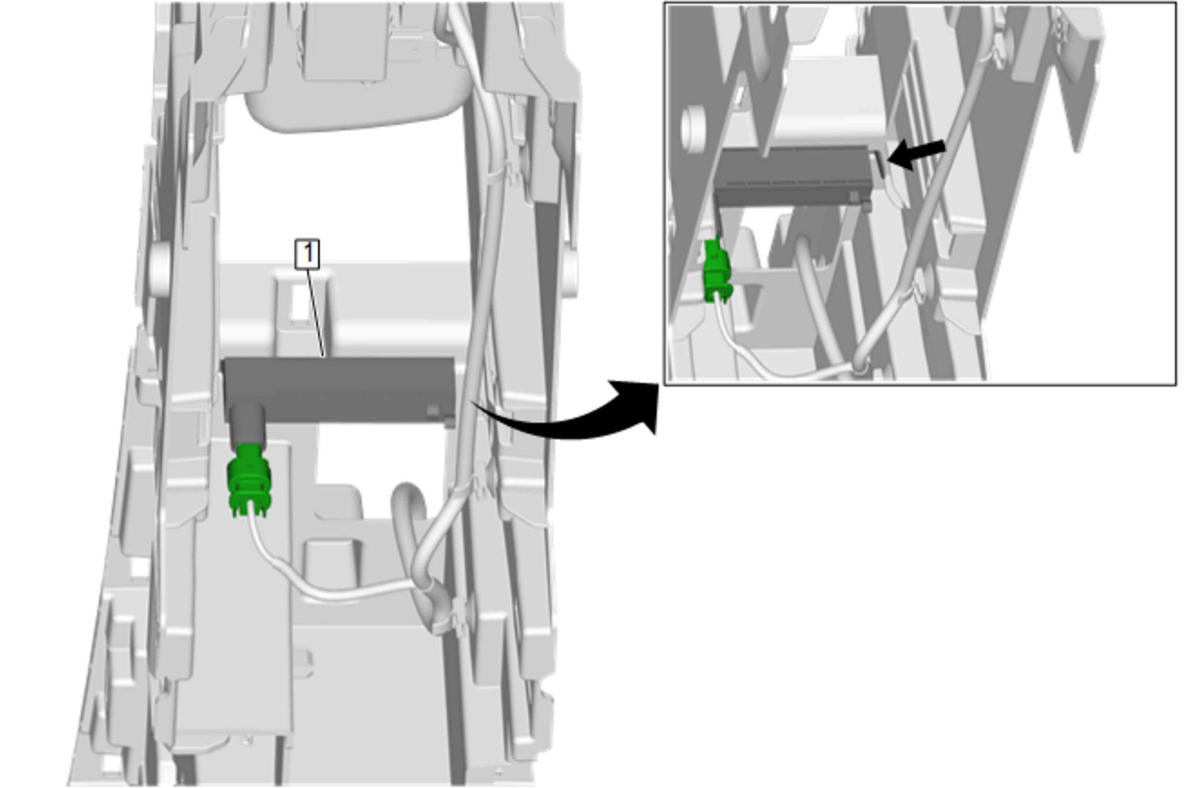

Low Frequency Console Antenna (1) - Install - Low Frequency Console Antenna Replacement
Courtesy of GENERAL MOTORS COMPANY

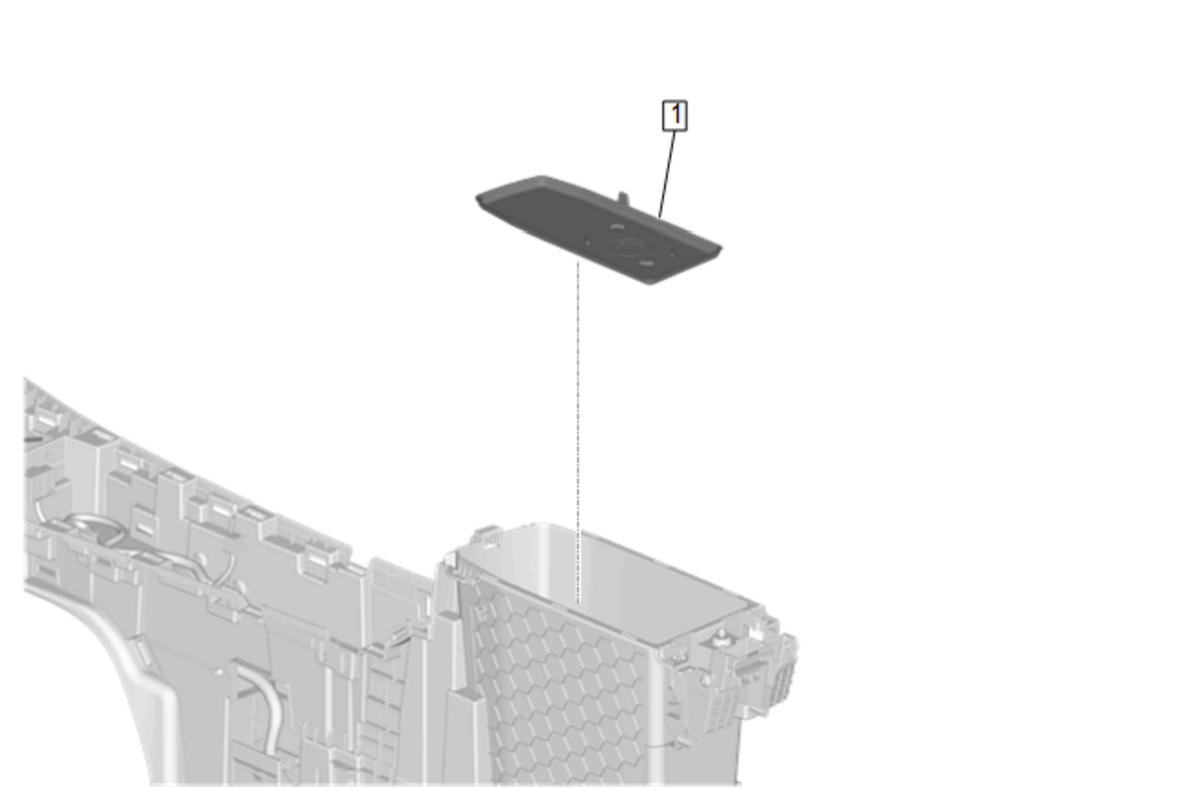

Front Floor Console Compartment Liner (1) - Install - Front Floor Console Compartment Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

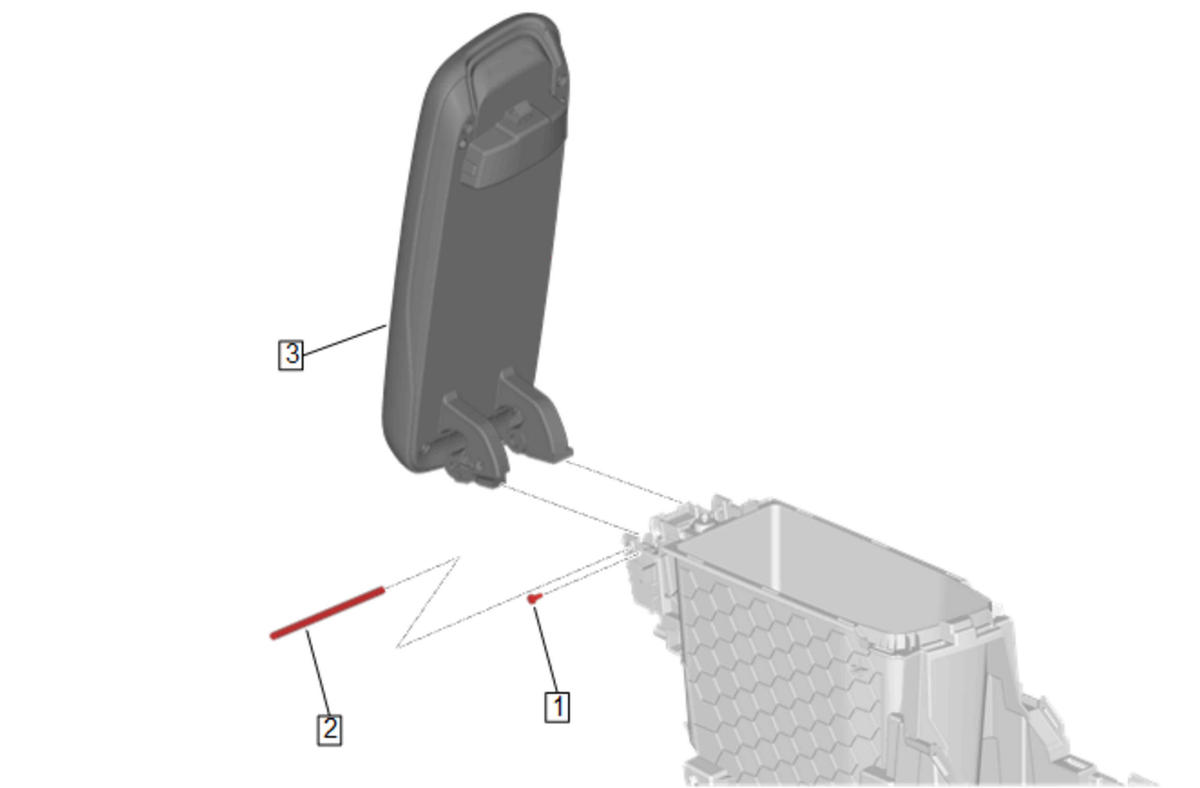

Front Floor Console Armrest (3) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

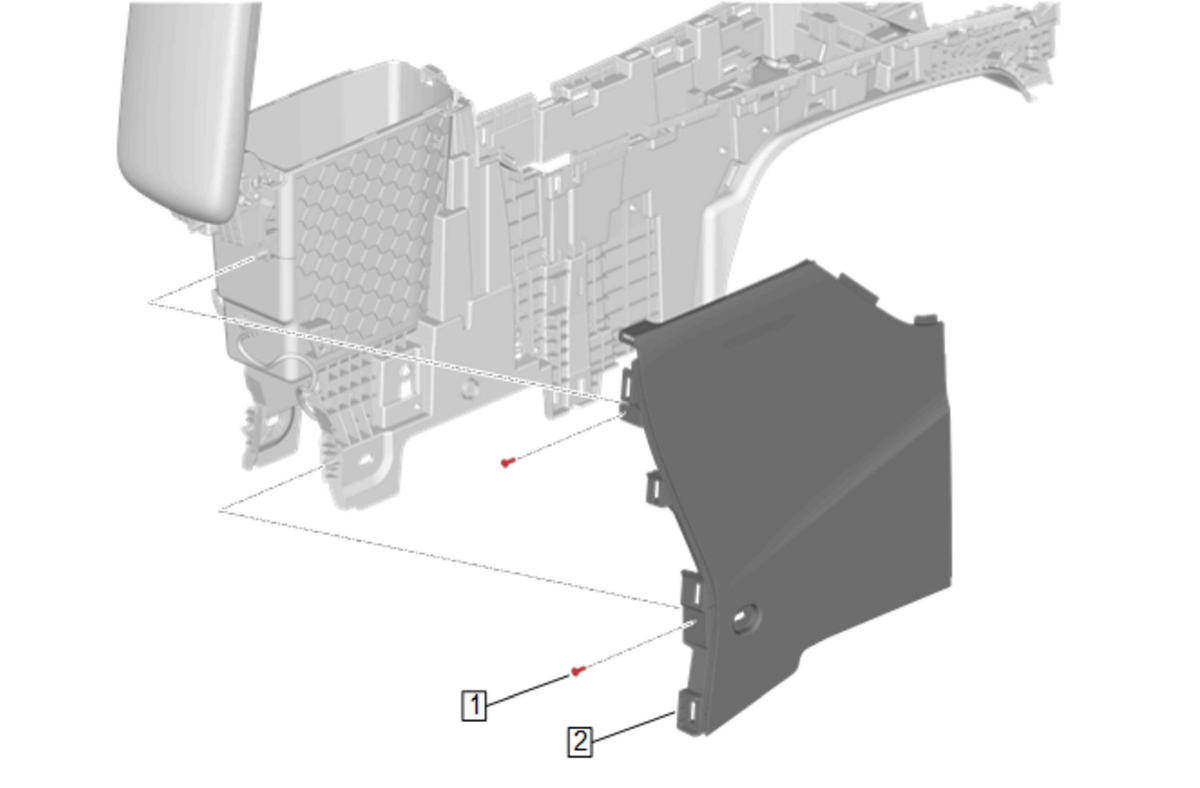

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

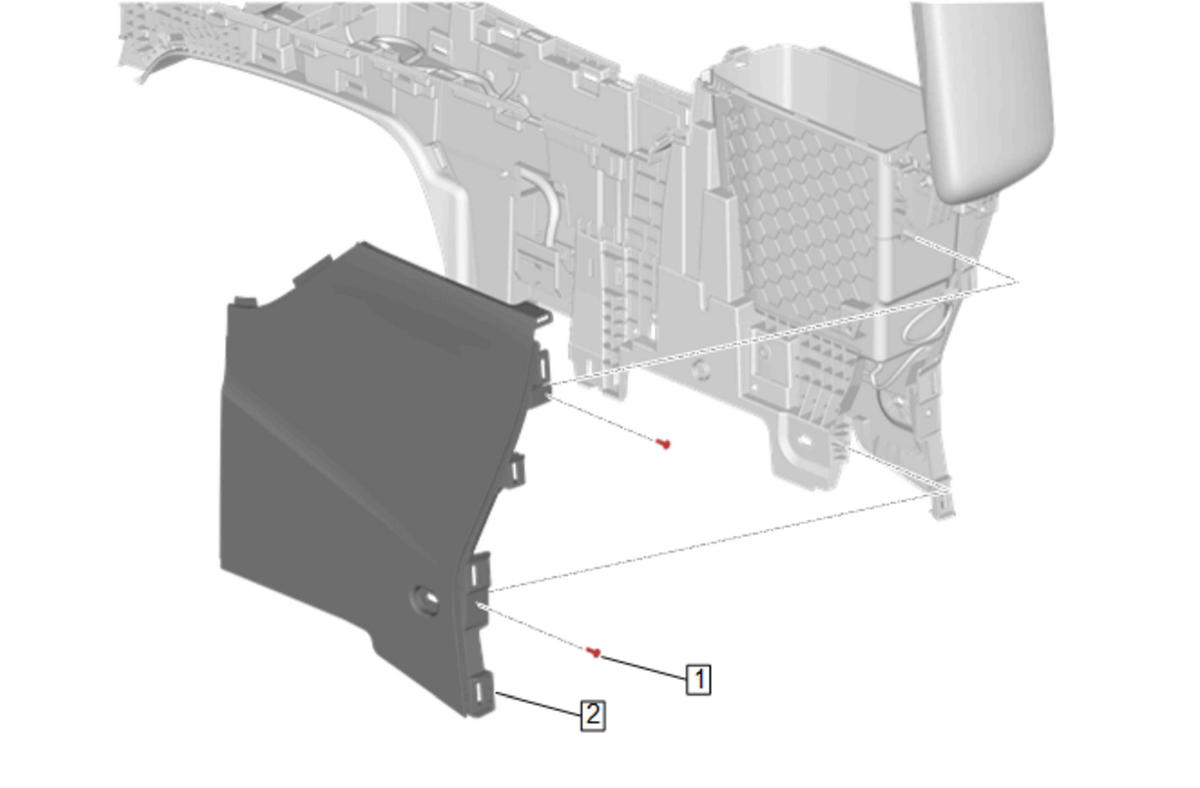

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

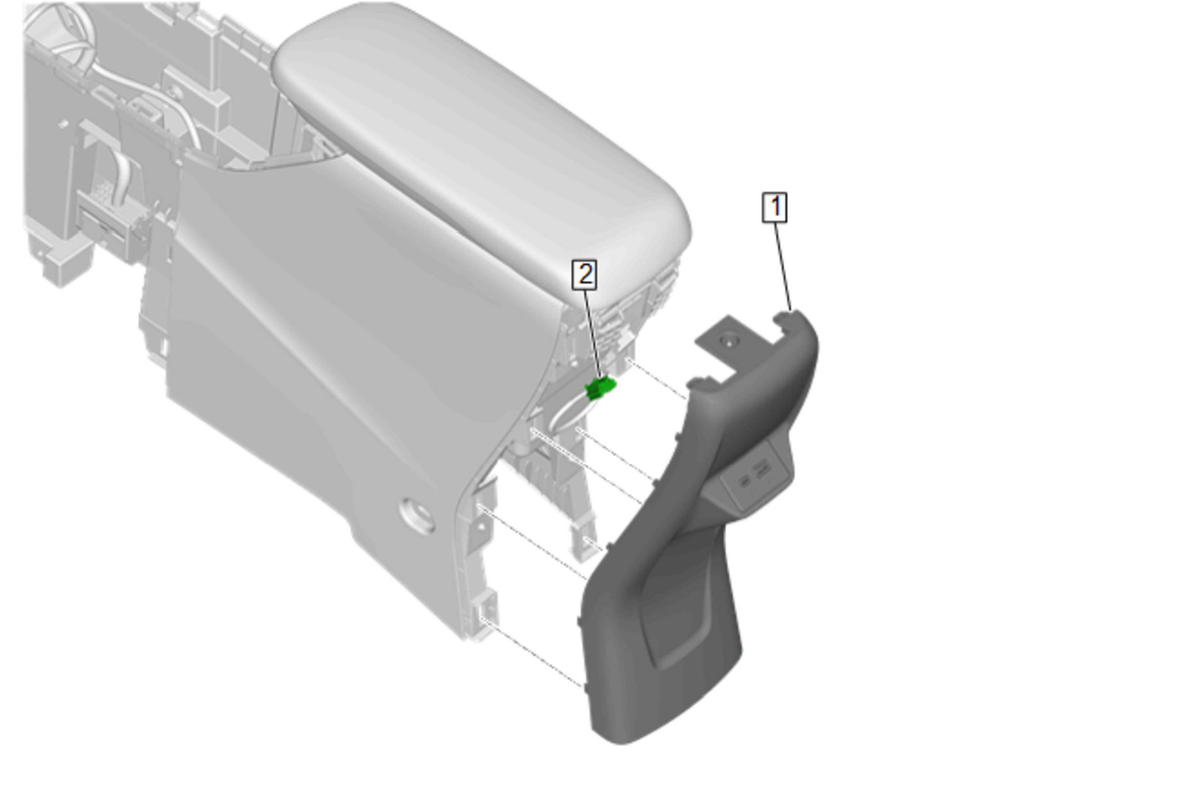

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Stowage Tray (1) - Install - Front Floor Console Stowage Tray Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Cup Holder Trim Plate (1) - Install - Front Floor Console Cup Holder Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1) - Install - Front Floor Console Replacement
