Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

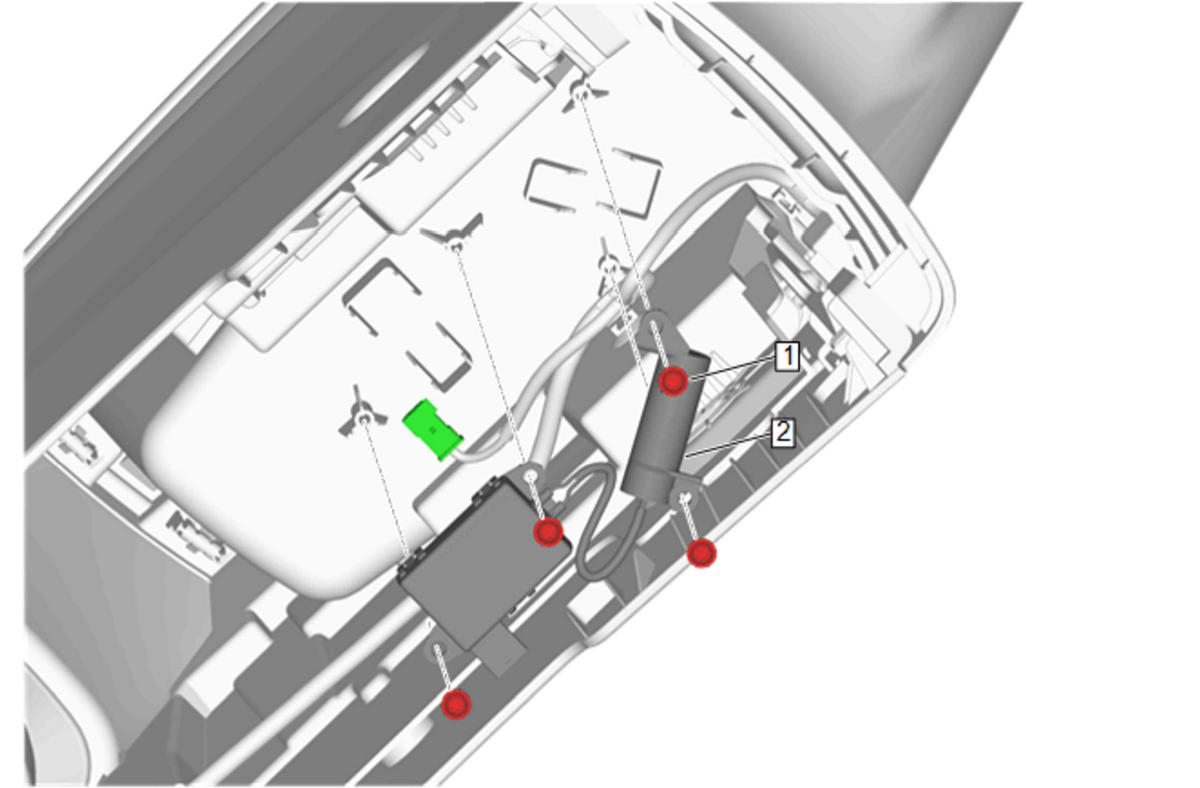

Callout	Component Name
Preliminary Procedures Front Floor Console Replacement Disconnect the electrical connector.
1	Theft Deterrent Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Theft Deterrent Module Procedure Perform any necessary programming and setup procedures: Control Module References

Callout

Component Name

Preliminary Procedures

Theft Deterrent Module Bolt [4x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Theft Deterrent Module
Procedure
Perform any necessary programming and setup procedures: Control Module References
