Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Battery Tray @ Vehicle - Remove - Battery Tray Replacement
  2. Install the engine support fixture. Engine Support Fixture

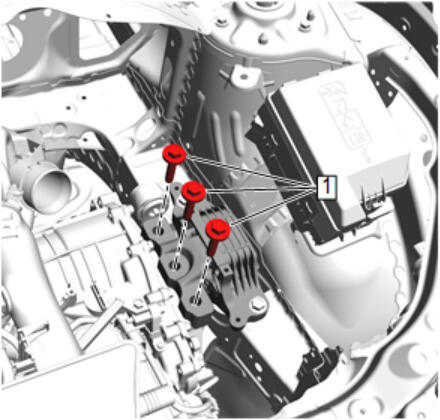

  3. GM5262974Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Transmission Side Bolt (1) - Remove and DISCARD [3x]

  4. GM5262977Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bolt (1) - Remove [2x]

  5. Transmission Mount (2) - Remove
