Engine Support Fixture

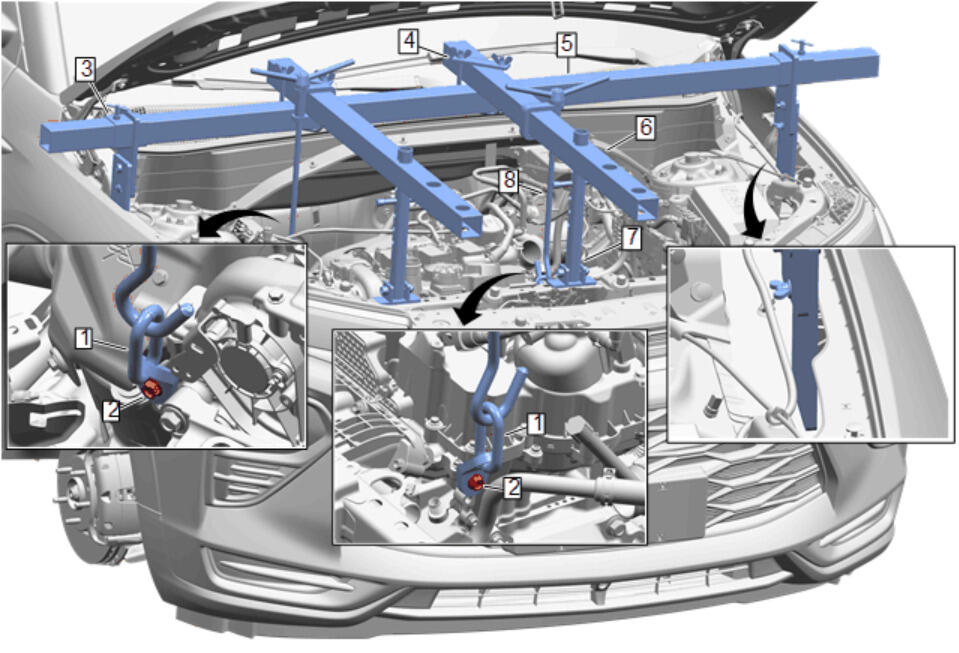

Fig 1: Identifying Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Evaporative Emission Canister Purge Pump Replacement Engine Mount Brace-LH - Engine Mount Brace Replacement (LH, FWD) , or Engine Mount Brace Replacement (LH, AWD) Special Tools EN-36857 Engine Lift Bracket EN-51007-1 Main Support Beam EN-51007-3 Radiator Support Beam EN-51007-4 Clamp EN-51007-5 Support Leg, Front EN-51007-6 Hook EN-51007-10 Support Leg, Side EN-52059 Support Fixture Adapter Bolt Equivalent regional tools: Special Tools .
1	EN-36857 Engine Lift Bracket Procedure NOTE: The engine support fixture and lift brackets can be repositioned to either lift bracket to lift in desired lift points. If engine lift brackets are not present, install EN-36857 engine lift brackets as needed.
2	EN-52059 Support Fixture Adapter Bolt
3	EN-51007-10 Support Leg, Side
4	EN-51007-4 Clamp
5	EN-51007-1 Main Support Beam
6	EN-51007-3 Radiator Support Beam
7	EN-51007-5 Support Leg, Front
8	EN-51007-6 Hook
