Removal Procedure

WARNING: This page is about a different variant/trim than selected.
WARNING:

Diesel/Gasoline Vapors Warning

WARNING:

Safety Glasses Warning

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Drain the fuel tank. Fuel Tank Draining
  3. Fuel Tank Filler Door Latch Housing - Remove - Fuel Tank Filler Door Latch Housing Replacement
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle
  5. Remove the left rear tire and wheel assembly. Tire and Wheel Removal and Installation
  6. Rear Wheelhouse Liner- Left Side - Remove - Rear Wheelhouse Liner Replacement

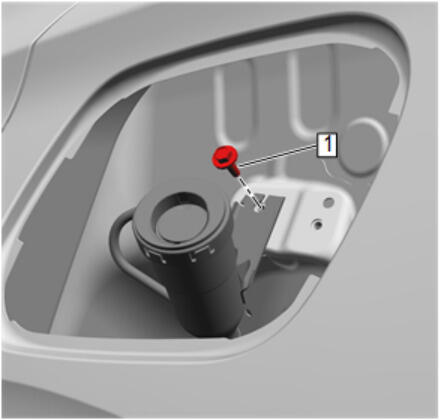

  7. GM5390614Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Ground Bolt (1) - Remove

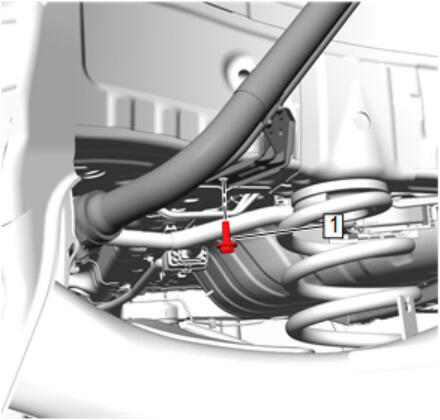

  8. GM5278861Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe Bolt (1) - Remove

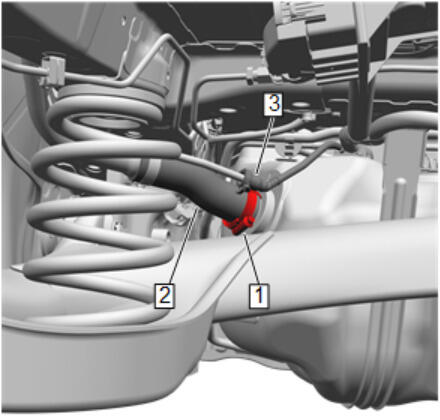

  9. GM5278862Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose Clamp (1) @ Fuel Tank Filler Hose - Loosen

  10. Fuel Tank Filler Hose (2) @ Fuel Tank - Disconnect
  11. Fuel Tank Vapor Pipe (3) @ Fuel Tank Filler Pipe - Disconnect - Plastic Collar Quick Connect Fitting Service

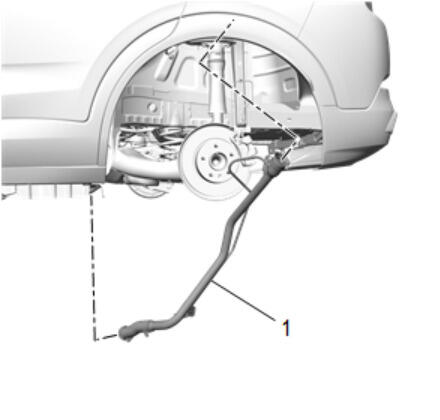

  12. GM5278863Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Pipe (1) @ Vehicle - Remove
