Rear Wheelhouse Liner Replacement

Courtesy of GENERAL MOTORS COMPANY

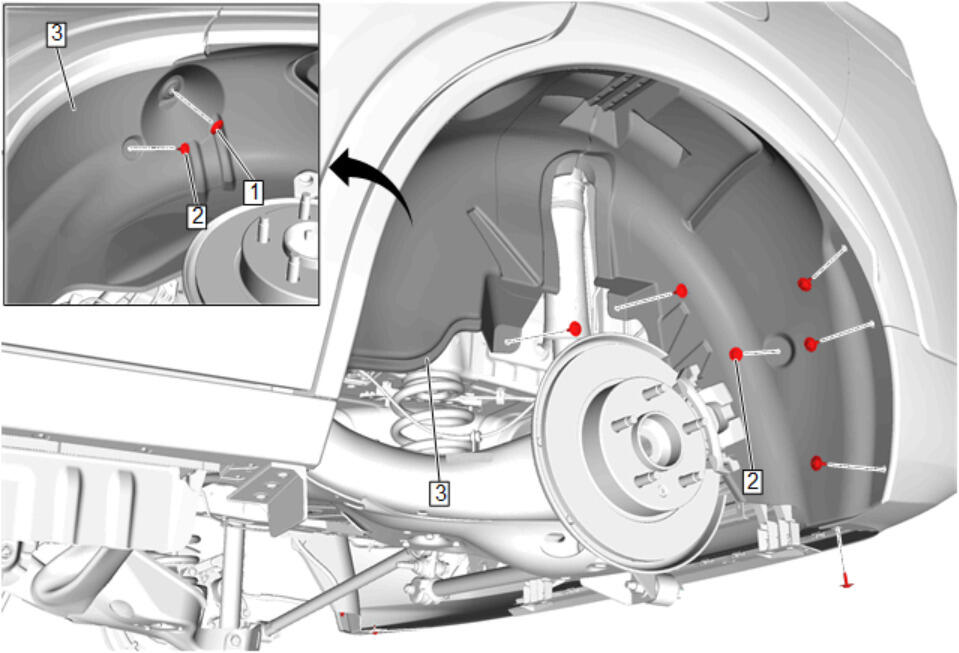

Callout	Component Name
Preliminary Procedures Rear Tire Front Air Deflector Replacement - Left Side , or Rear Tire Front Air Deflector Replacement - Right Side Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation
1	Rear Wheelhouse Liner Retainer
2	Rear Wheelhouse Liner Bolt [8x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Rear Wheelhouse Liner Procedure Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
