Roof Console Accessory Switch Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Communication Center Call Switch Replacement
Instrument Panel Airbag Arming Status Display Replacement

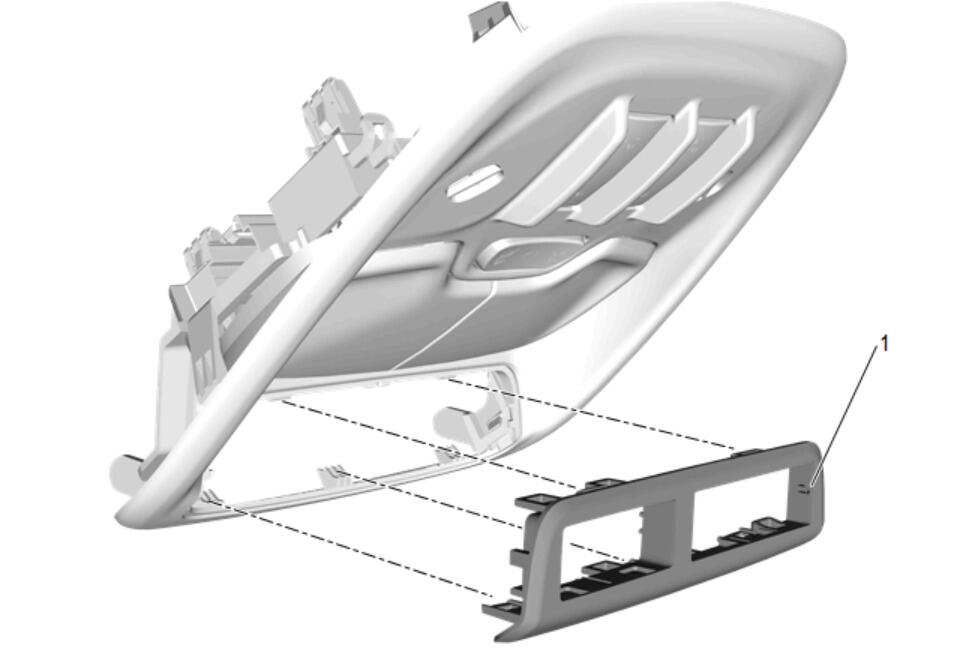

1
Roof Console Accessory Switch Trim Plate
Procedure
Use a flat bladed plastic tool to remove.
Release tabs and remove the roof console accessory switch trim plate from the roof console.
