Communication Center Call Switch Replacement

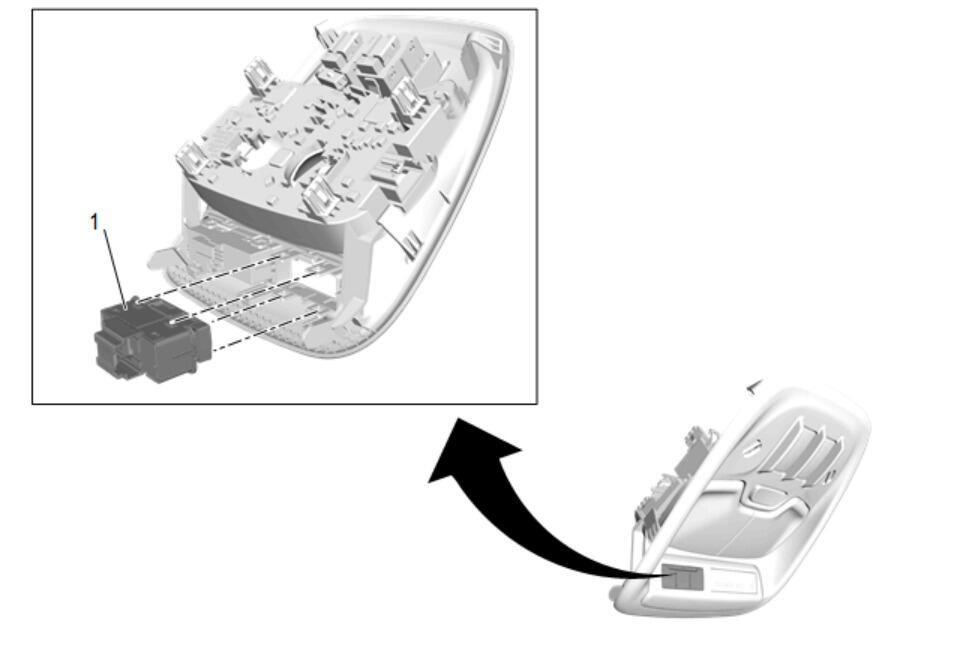

GM5206865Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement (without C3U) , or Roof Console Replacement (with C3U)
1 Communication Center Call Switch

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Release tabs and remove the switch from the roof console.
